P/N: 7029-3771

SMA Male to SMPM Female 3" Cable Assembly for .047 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
RF Series 2 SMPM
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 3"
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Mating Cycles 500
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
RF Series 2 SMPM
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 3"
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Mating Cycles 500
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Temperature Rating -65°C to +165°C
Inter-mate ability 2.92mm
Mating Torque 7 - 10 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7029-3772

SMA Male to SMP Female 3" Cable Assembly for .047 Cable

Available Inventory: 0
7029-3772
SMA Cable Assemblies 7029-3772
Datasheet
Part #   7029-2556

SMA Male to SMA Male 12" Cable Assembly for .047 Cable

Available Inventory: 396
7029-2556
SMA Cable Assemblies 7029-2556
Datasheet
Part #   7029-3773

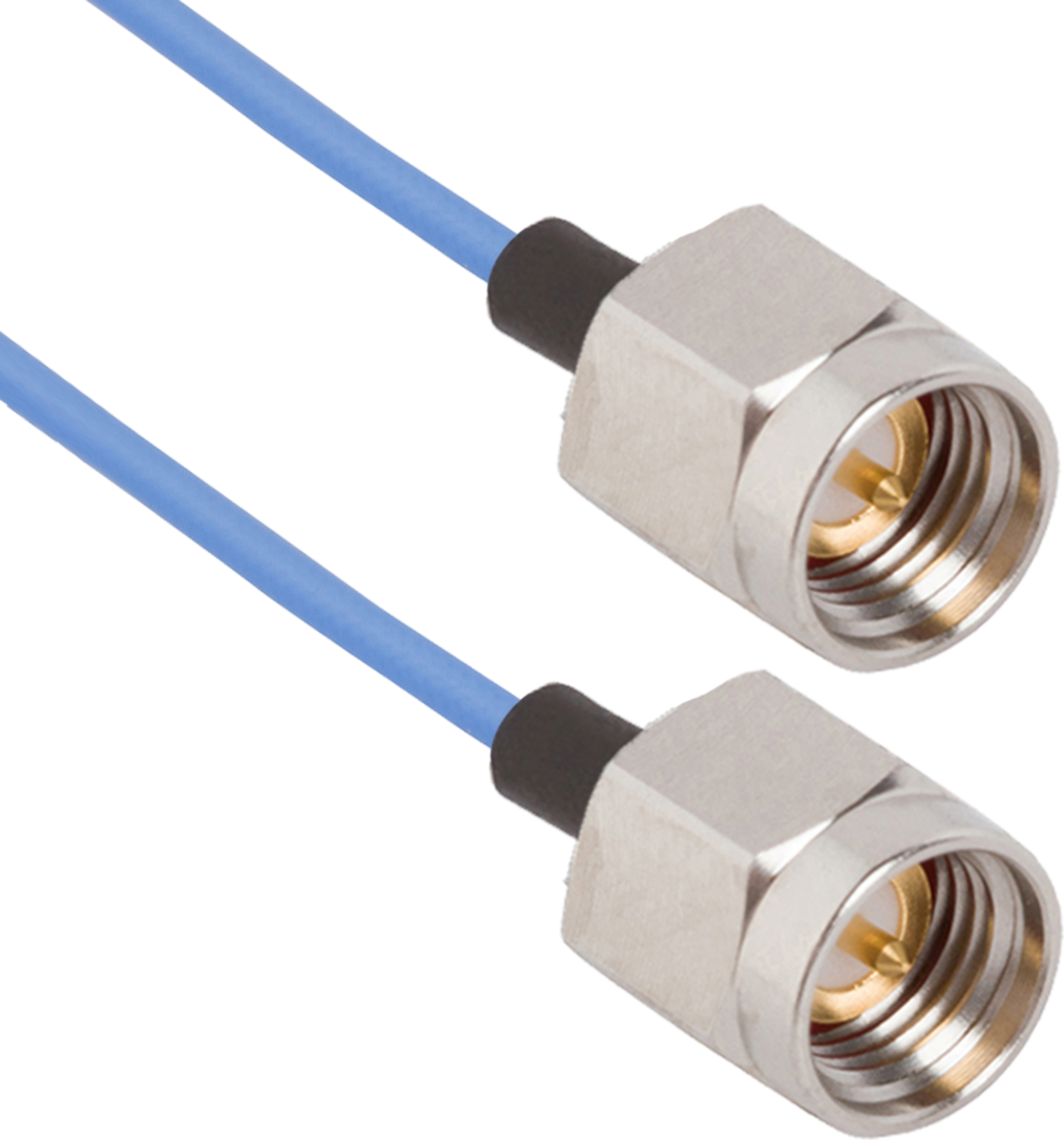

SMA Male to SMA Male 3" Cable Assembly for .047 Cable
