SMP and SMPM PCB Connectors

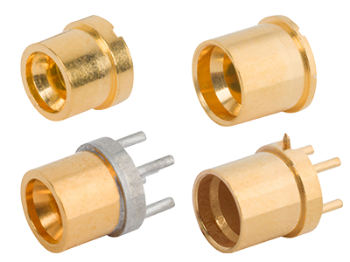

Picture for category SMP and SMPM PCB Connectors

SV has just released a new line of high-density thru-hole and surface mount connectors. These connectors are ideal for high frequency printed circuit board applications where precision is key. Current configurations include male interfaces in the SMP and SMPM series. Take your system to the next level!

Features / Benefits

  • SMP and SMPM series are available
  • Cost-effective solutions for testing
  • Pre-tinning options available
  • Both thru-hole mount and surface mount options are available
  • Customized PCB footprint design through simulation optimization

Applications:

  • Mil/Aero
  • Space and High Reliability Communications
  • RF test and measurement boards
  • Rapid prototyping
  • High speed digital component test
  • 5G wireless test applications

SMP

 Impedance (Ω)  50
 Frequency GHz  40 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  500 VRMS
 Mating Cycles - SB   1000
 Mating Cycles - LD  500
 Mating Cycles - FD   100
 Insertion Force - SB  3.0 lbs
 Insertion Force - LD  5.0 lbs
 Insertion Force - FD   7.0 lbs
 Withdrawal Force - SB  0.5 lbs
 Withdrawal Force - LD  7.0 lbs
 Withdrawal Force - FD   9.0 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.



SMPM

 Impedance (Ω)  50
 Frequency GHz  65 GHz
 Shielding Effectiveness  ≥ -80 dB DC - 3 GHz
 ≥ -65 dB 3 - 26.5 GHz
 Dielectric withstanding Voltage  325 VRMS
 Mating Cycles - SB   500
 Mating Cycles - FD   100
 Insertion Force - SB  2.5 lbs
 Insertion Force - FD   4.5 lbs
 Withdrawal Force - SB  1.5 lbs
 Withdrawal Force - FD   6.5 lbs
 Axial Misalignment  .010” Max
 Radial Misalignment  3° Max
 Temperature Rating  -65°C to +165°C
 Corrosion (salt spray)  MIL-STD-202, Method 101, Condition B
 Vibration  MIL-STD-202, Method 204, Condition D
 Shock  MIL-STD-202, Method 213, Condition I
 Thermal Shock  MIL-STD-202, Method 107, Condition B
 Moisture Resistance  MIL-STD-202, Method 106, Less Step 7B
 Barometric Pressure (Altitude)  MIL-STD-202, Method 105, Condition C, 70k Ft.
Filters
per page
Part #   1211-40108

SMP Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 86
1211-40108
SMP Connectors 1211-40108
Datasheet
Part #   1211-40110

SMP Male PCB Thru-Hole Connector, R/A, FD

Available Inventory: 200
1211-40110
SMP Connectors 1211-40110
Datasheet
Part #   1211-40111

SMP Male PCB Thru-Hole Connector, SB

Available Inventory: 194
1211-40111
SMP Connectors 1211-40111
Datasheet
Part #   1211-40113

SMP Male PCB Thru-Hole Connector, FD

Available Inventory: 200
1211-40113
SMP Connectors 1211-40113
Datasheet
Part #   1211-40116

SMP Male PCB Thru-Hole Connector (Pre-Tinned), FD

Available Inventory: 100
1211-40116
SMP Connectors 1211-40116
Datasheet
Part #   1211-40114

SMP Male PCB Thru-Hole Connector (Pre-Tinned), SB

Available Inventory: 0
1211-40114
SMP Connectors 1211-40114
Datasheet
Part #   1211-20016

SMP Male PCB Surface Mount Connector, FD

Available Inventory: 70
1211-20016
SMP Connectors 1211-20016
Datasheet
Part #   1211-20015

SMP Male PCB Surface Mount Connector, SB

Available Inventory: 0
1211-20015
SMP Connectors 1211-20015
Datasheet
Part #   3211-20028

SMPM Male PCB Surface Mount Connector, FD

Available Inventory: 95
3211-20028
SMPM Connectors 3211-20028
Datasheet
Part #   3211-20027

SMPM Male PCB Surface Mount Connector, SB

Available Inventory: 0
3211-20027
SMPM Connectors 3211-20027
Datasheet
Part #   1211-20021

SMP Male PCB Surface Mount Connector (Pre-Tinned), FD

Available Inventory: 100
1211-20021
SMP Connectors 1211-20021
Datasheet
Part #   1211-20019

SMP Male PCB Surface Mount Connector (Pre-Tinned), SB

Available Inventory: 0
1211-20019
SMP Connectors 1211-20019
Datasheet
Part #   3211-20034

SMPM Male PCB Surface Mount Connector (Pre-Tinned), FD

Available Inventory: 97
3211-20034
SMPM Connectors 3211-20034
Datasheet
Part #   3211-20033

SMPM Male PCB Surface Mount Connector (Pre-Tinned), SB

Available Inventory: 0
3211-20033
SMPM Connectors 3211-20033
Datasheet
Part #   3211-40139

SMPM Male PCB Thru-Hole Connector, R/A, FD

Available Inventory: 200
3211-40139
SMPM Connectors 3211-40139
Datasheet
Part #   3211-40138

SMPM Male PCB Thru-Hole Connector, R/A, SB

Available Inventory: 200
3211-40138
SMPM Connectors 3211-40138
Datasheet
Part #   3211-40141

SMPM Male PCB Thru-Hole Connector, FD

Available Inventory: 196
3211-40141
SMPM Connectors 3211-40141
Datasheet
Part #   3211-40140

SMPM Male PCB Thru-Hole Connector, SB

Available Inventory: 100
3211-40140
SMPM Connectors 3211-40140
Datasheet
Part #   3211-40143

SMPM Male PCB Thru-Hole Connector (Pre-Tinned), FD

Available Inventory: 200
3211-40143
SMPM Connectors 3211-40143
Datasheet
Part #   3211-40142

SMPM Male PCB Thru-Hole Connector (Pre-Tinned), SB

Available Inventory: 0
3211-40142
SMPM Connectors 3211-40142
Datasheet
