P/N: 7012-1329

SMP Female R/A to SMA Male R/A 24" Cable Assembly for .085 Cable"

In stock at Qty Order
Digi-Key Electronics 50
Mouser Electronics 20
Products specifications
Attribute name Attribute value
RF Series SMP
Orientation (Body) Right Angle
Gender Jack (Female)
Coupling Push-on
Frequency 11 GHz
Impedance 50 ohms
Gender 2 Plug (Male)
RF Series 2 SMA
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 24"
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Orientation (Body) Right Angle
Gender Jack (Female)
Coupling Push-on
Frequency 11 GHz
Impedance 50 ohms
Gender 2 Plug (Male)
RF Series 2 SMA
Cable Type 0.085 Flexible Coax
Orientation 2 (Body) Right Angle
Cable Length 24"
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7012-0804

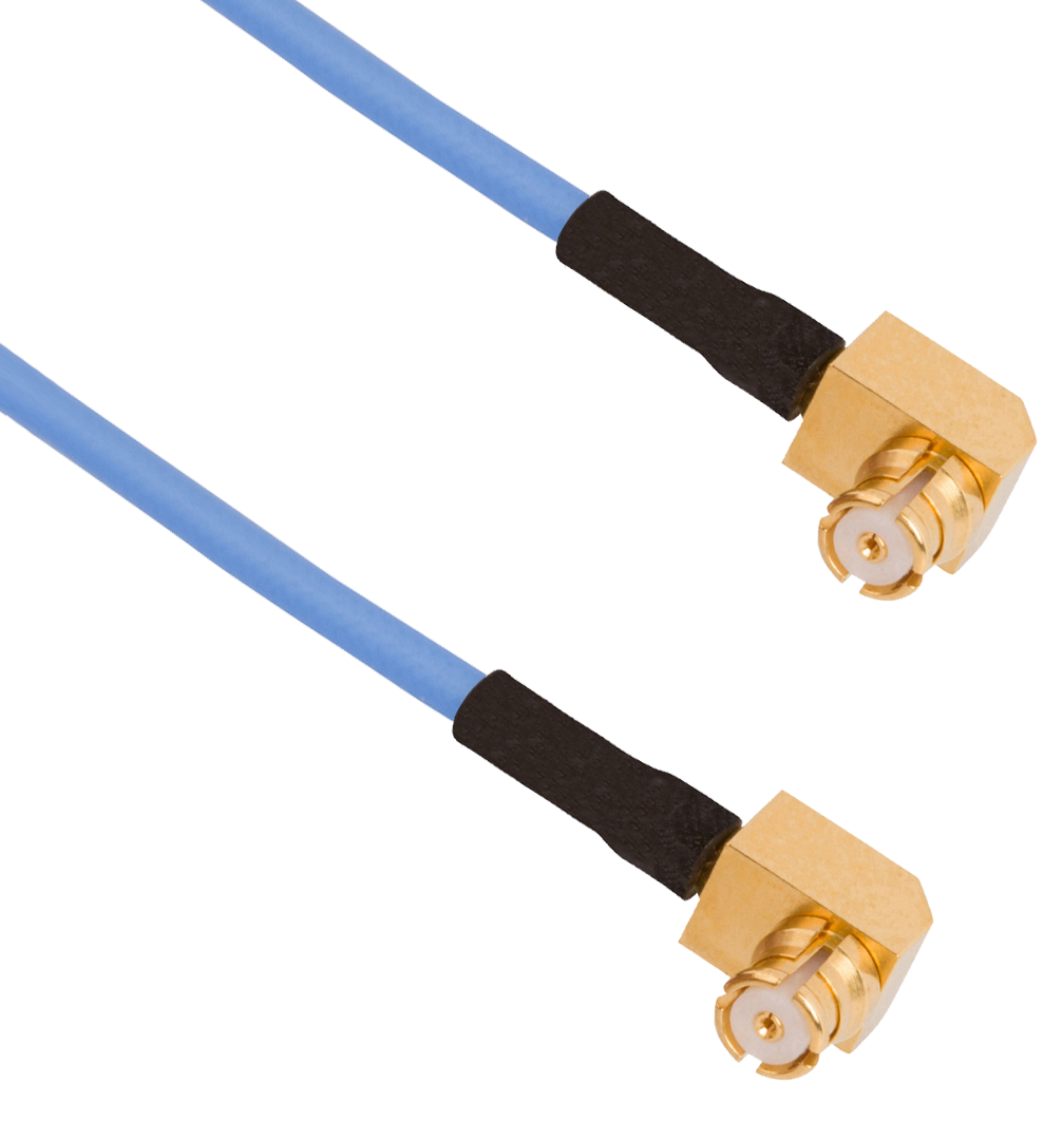

SMP Female R/A to SMP Female R/A 24" Cable Assembly for .047 Cable"
