SMP Female R/A to SMP Female R/A 6" Cable Assembly for .085 Cable"
P/N: 7012-0799

In stock at Qty Order
Newark 155
Digi-Key Electronics 49
Mouser Electronics 12
Interstate Connecting Components 8
Heilind Electronics 2
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
RF Series 2 SMP
Gender 2 Jack (Female)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Insertion Force - SB 3.0 lbs
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - FD 7.0 lbs
Insertion Force - LD 5.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - SB 0.5 lbs
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Right Angle
Coupling Push-on
RF Series 2 SMP
Gender 2 Jack (Female)
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 26.5 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Insertion Force - SB 3.0 lbs
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - FD 7.0 lbs
Insertion Force - LD 5.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - SB 0.5 lbs
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   7012-0800

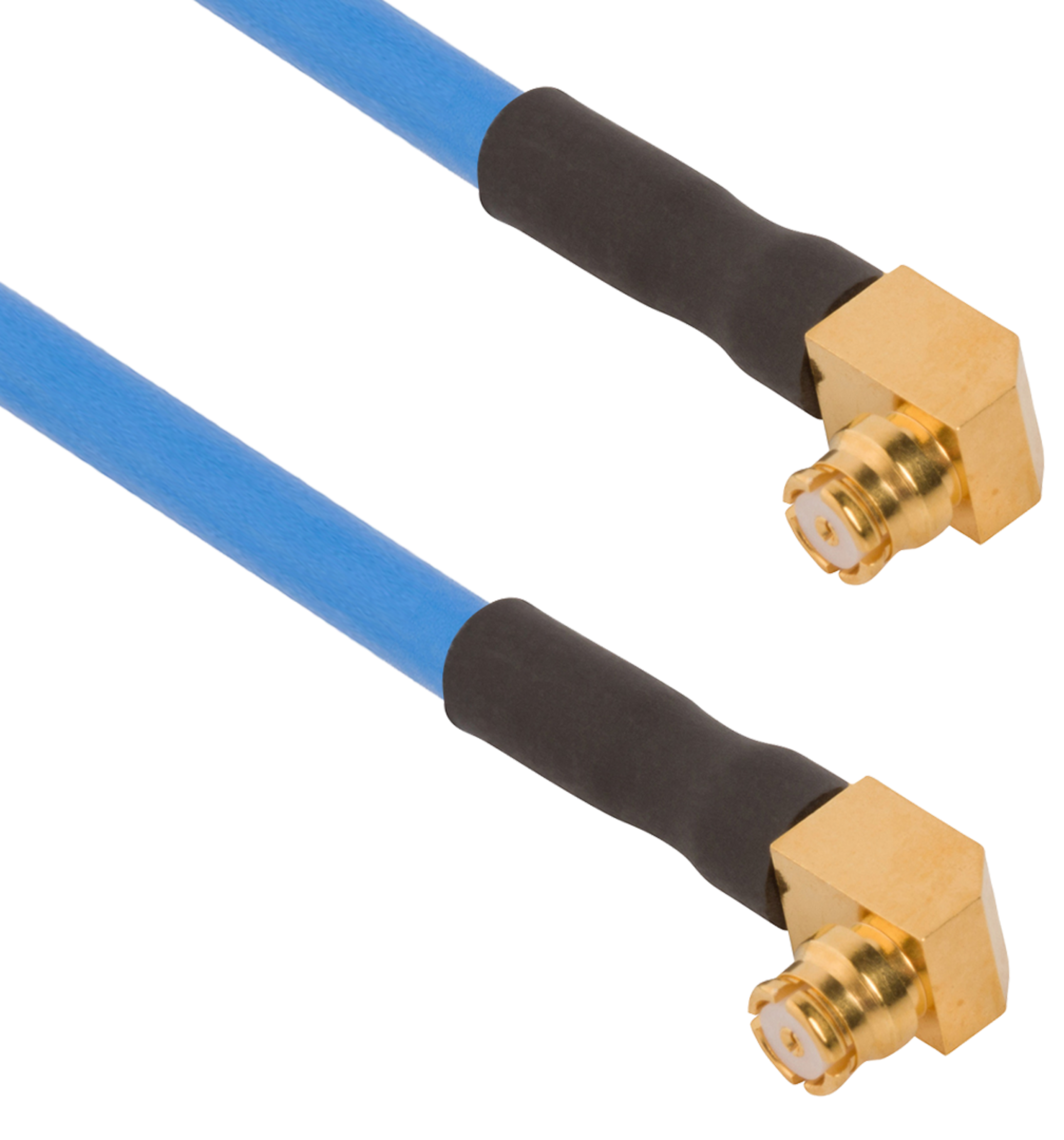

SMP Female R/A to SMP Female R/A 12" Cable Assembly for .085 Cable"

Available Inventory: 58
7012-0800
SMP Cable Assemblies 7012-0800
Datasheet
Part #   7012-0801

SMP Female R/A to SMP Female R/A 24" Cable Assembly for .085 Cable"

Available Inventory: 167
7012-0801
SMP Cable Assemblies 7012-0801
Datasheet
Part #   7012-0802

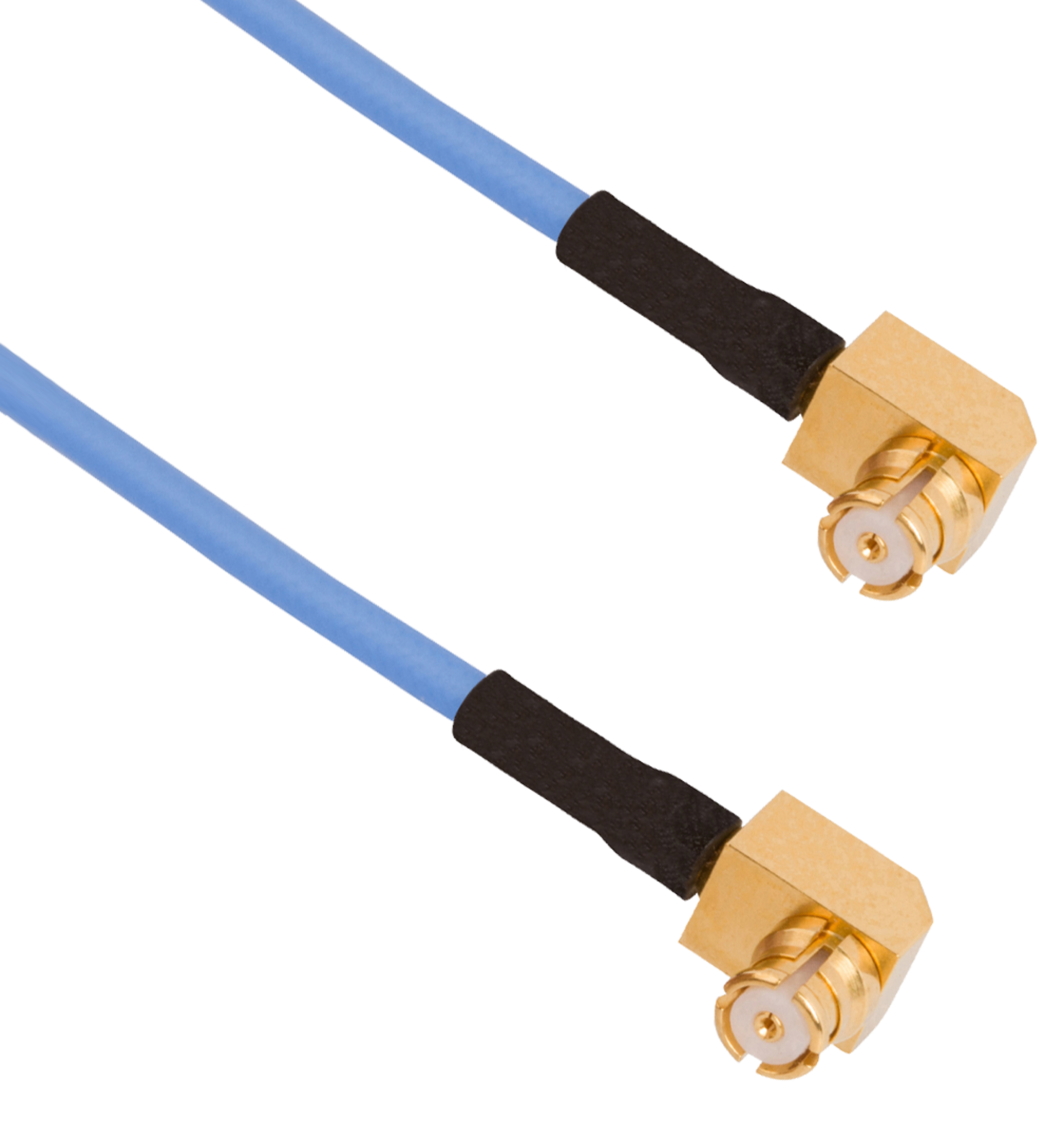

SMP Female R/A to SMP Female R/A 6" Cable Assembly for .047 Cable"
