P/N: 7012-1064

SMP Female to 2.92mm Male 6" Cable Assembly for .047 Cable"

In stock at Qty Order
Digi-Key Electronics 25
Mouser Electronics 10
Products specifications
Attribute name Attribute value
Gender Jack (Female)
Orientation (Body) Straight
RF Series SMP
Coupling Push-on
RF Series 2 2.92 mm
Frequency 33 GHz
Impedance 50 ohms
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles - SB 1000
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Jack (Female)
Orientation (Body) Straight
RF Series SMP
Coupling Push-on
RF Series 2 2.92 mm
Frequency 33 GHz
Impedance 50 ohms
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Frequency GHz 40 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles - SB 1000
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7012-1065

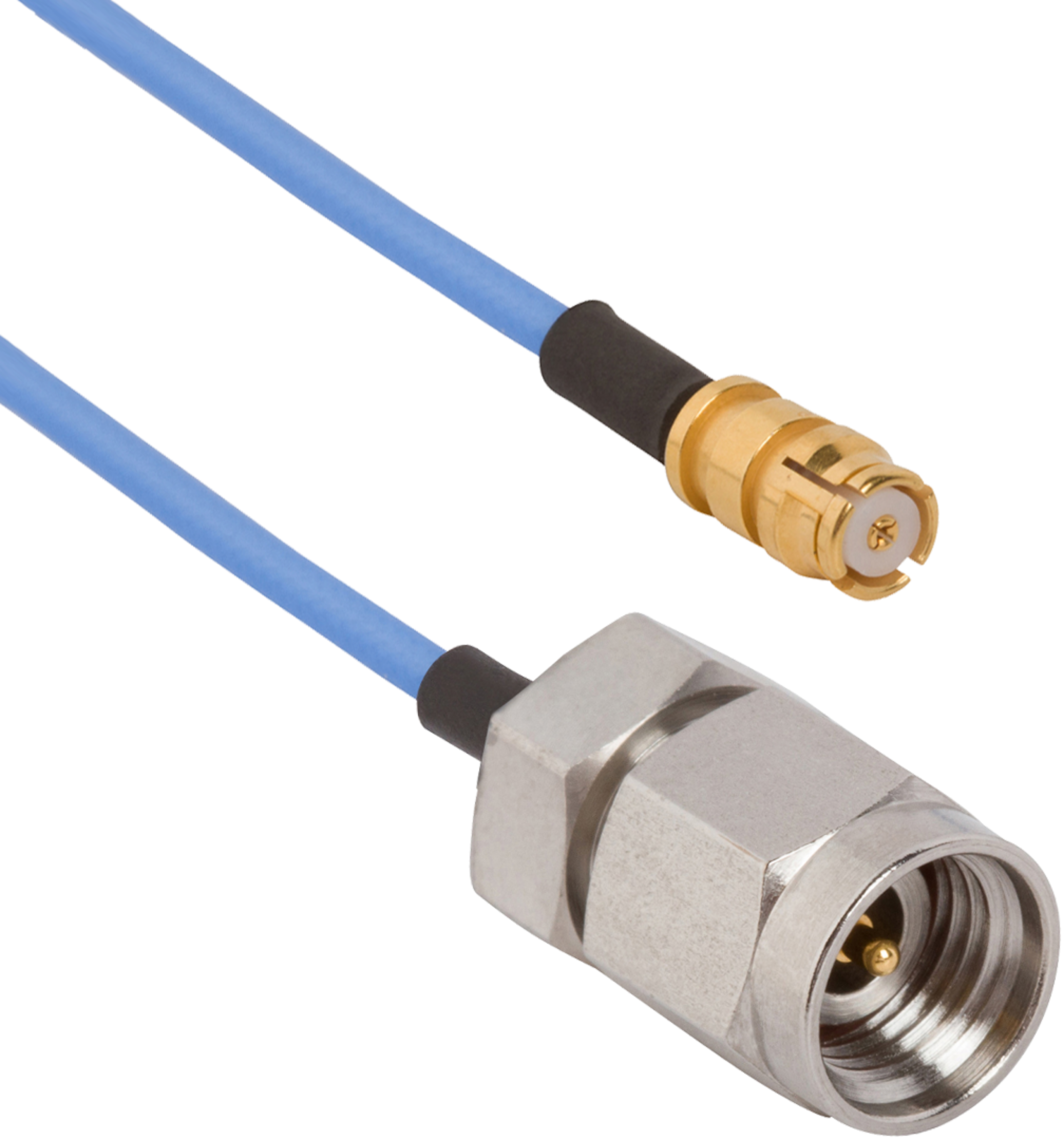

SMP Female to 2.92mm Male 12" Cable Assembly for .047 Cable"

Available Inventory: 30
7012-1065
SMP Cable Assemblies 7012-1065
Datasheet
Part #   7012-1067

SMP Female R/A to 2.92mm Male 12" Cable Assembly for .047 Cable

Available Inventory: 2
7012-1067
SMP Cable Assemblies 7012-1067
Datasheet
Part #   7012-1066

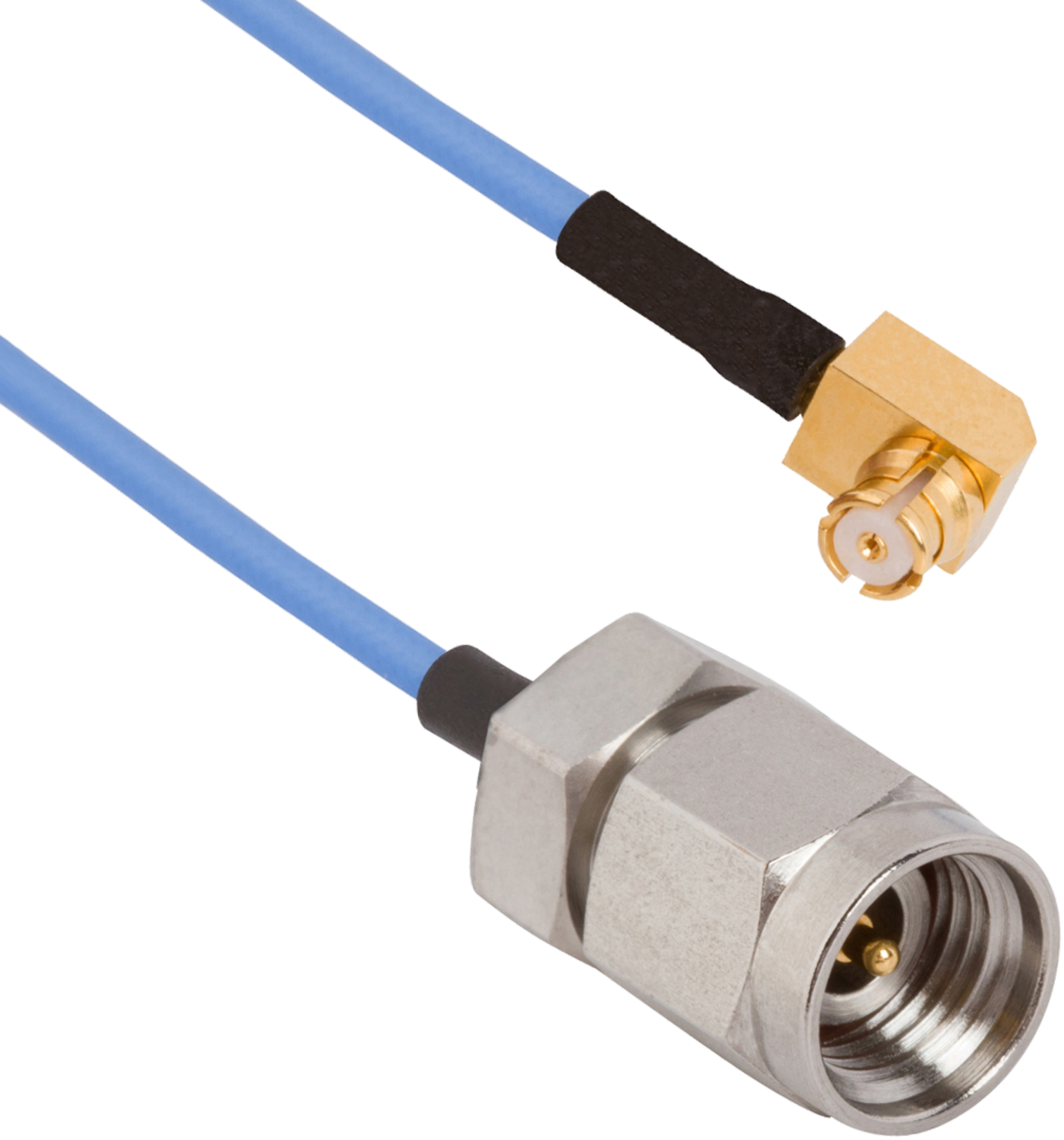

SMP Female R/A to 2.92mm Male 6" Cable Assembly for .047 Cable
