P/N: 1112-4144

SMP Female to Female Bullet, Spring Loaded (OAL 0.650")

In stock at Qty Order
Mouser Electronics 95
TTI Inc Global Headquarters 50
Newark 45
Farnell 45
Heilind Electronics 12
Digi-Key Electronics 7
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Frequency 40 GHz
Impedance 50 ohms
Finish Gold
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
RF Series 2 SMP
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Mechanical
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Mating Cycles - LD 500
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Frequency 40 GHz
Impedance 50 ohms
Finish Gold
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
RF Series 2 SMP
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mating Cycles - SB 1000
Mechanical
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Insertion Force - LD 5.0 lbs
Mating Cycles - LD 500
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1112-4145

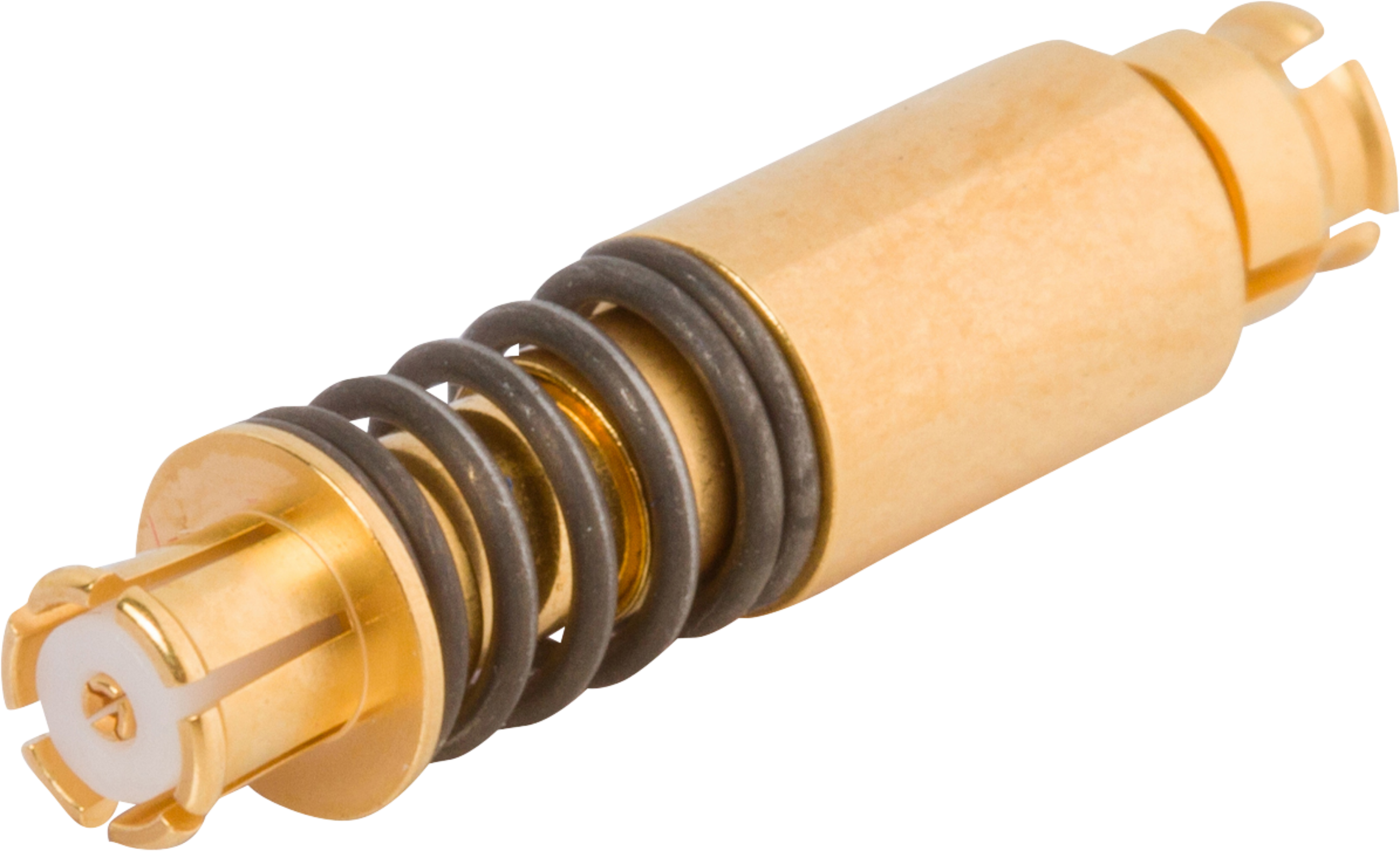

SMP Female to Female Bullet, Spring Loaded (OAL 0.725")"

Available Inventory: 214
1112-4145
SMP Adapters 1112-4145
Datasheet
Part #   1112-4146

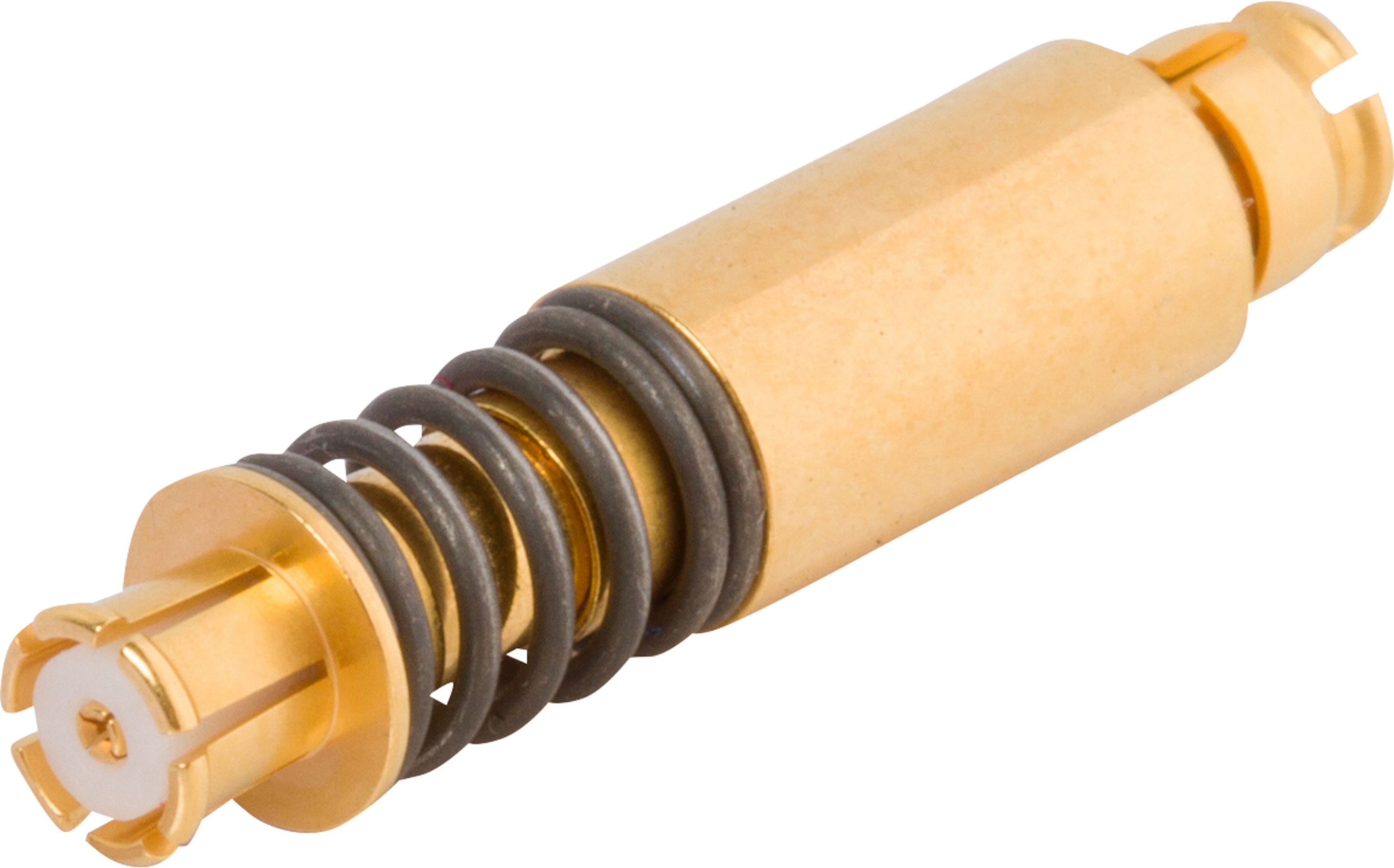

SMP Female to Female Bullet, Spring Loaded (OAL 0.800")"

Available Inventory: 220
1112-4146
SMP Adapters 1112-4146
Datasheet
Part #   1112-4147

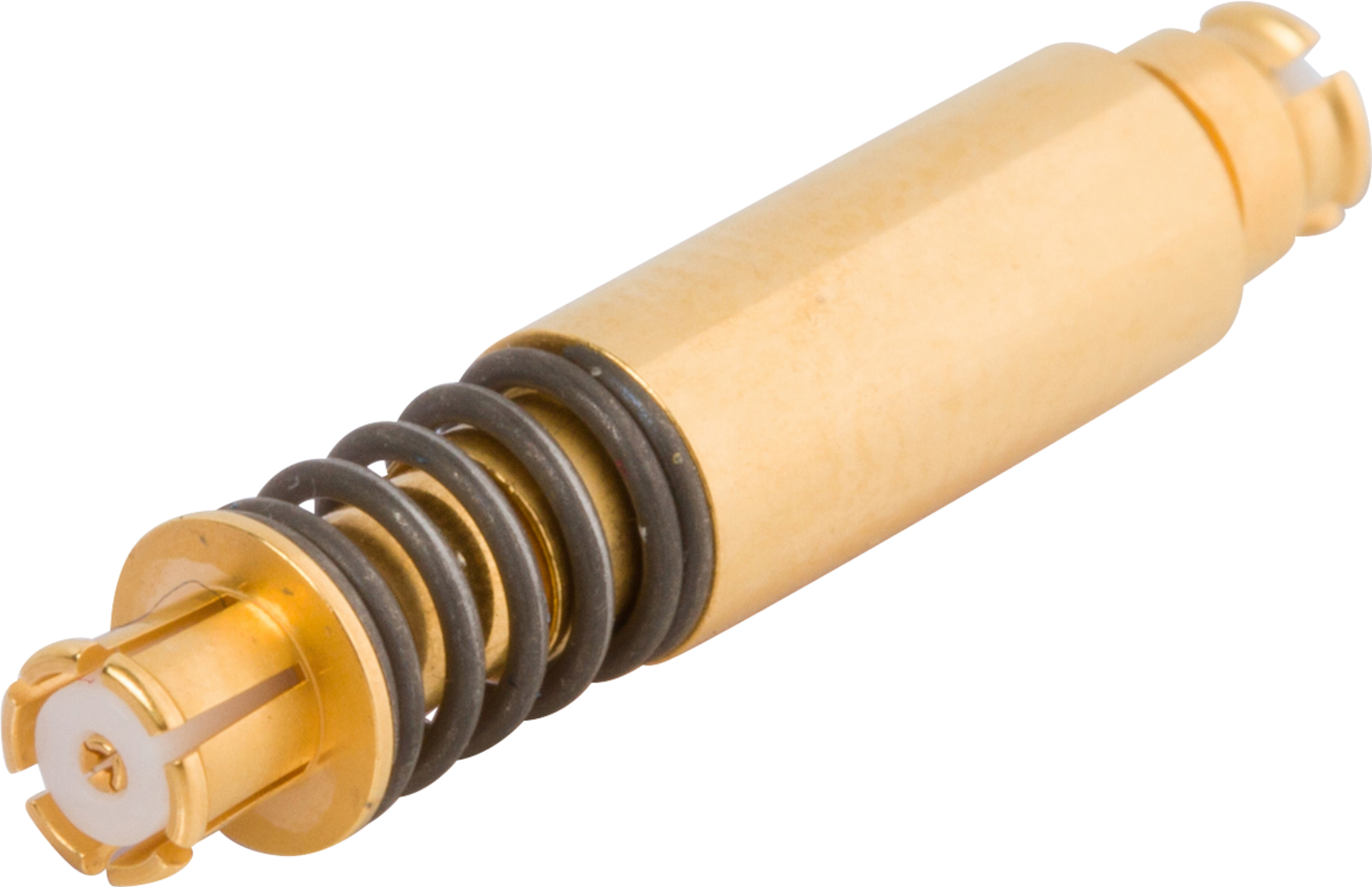

SMP Female to Female Bullet, Spring Loaded (OAL 0.875")"
