SMP Female to SMP Female 12" Cable Assembly for .085 Cable"
P/N: 7012-1292

In stock at Qty Order
Digi-Key Electronics 67
Mouser Electronics 40
TTI Inc Global Headquarters 25
Products specifications
Attribute name Attribute value
RF Series SMP
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
RF Series 2 SMP
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Mating Cycles - FD 100
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Orientation (Body) Straight
Gender Jack (Female)
Coupling Push-on
RF Series 2 SMP
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Mating Cycles - FD 100
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   7012-0797

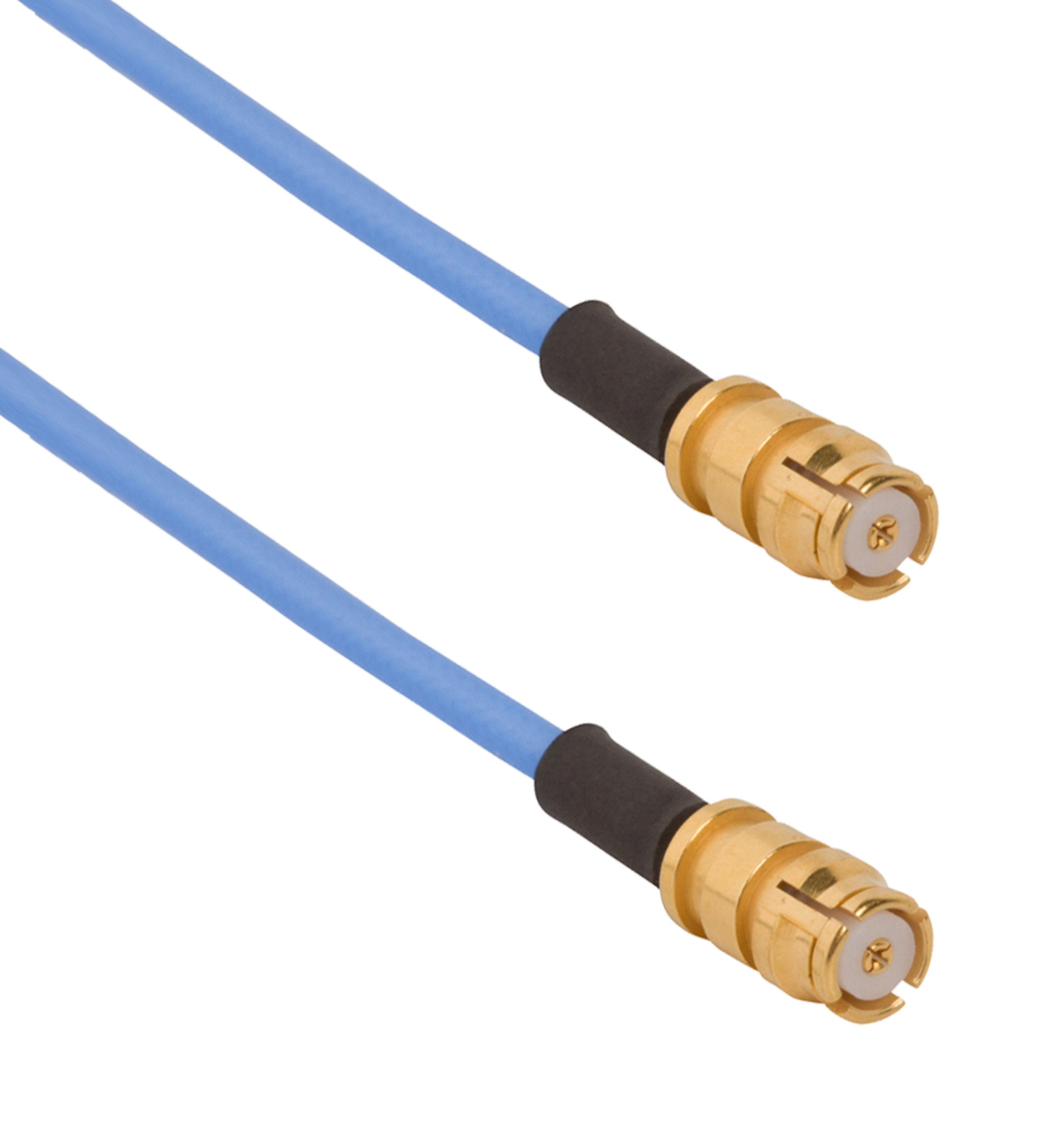

SMP Female to SMP Female 12" Cable Assembly for .047 Cable"

Available Inventory: 79
7012-0797
SMP Cable Assemblies 7012-0797
Datasheet
Part #   7012-0800

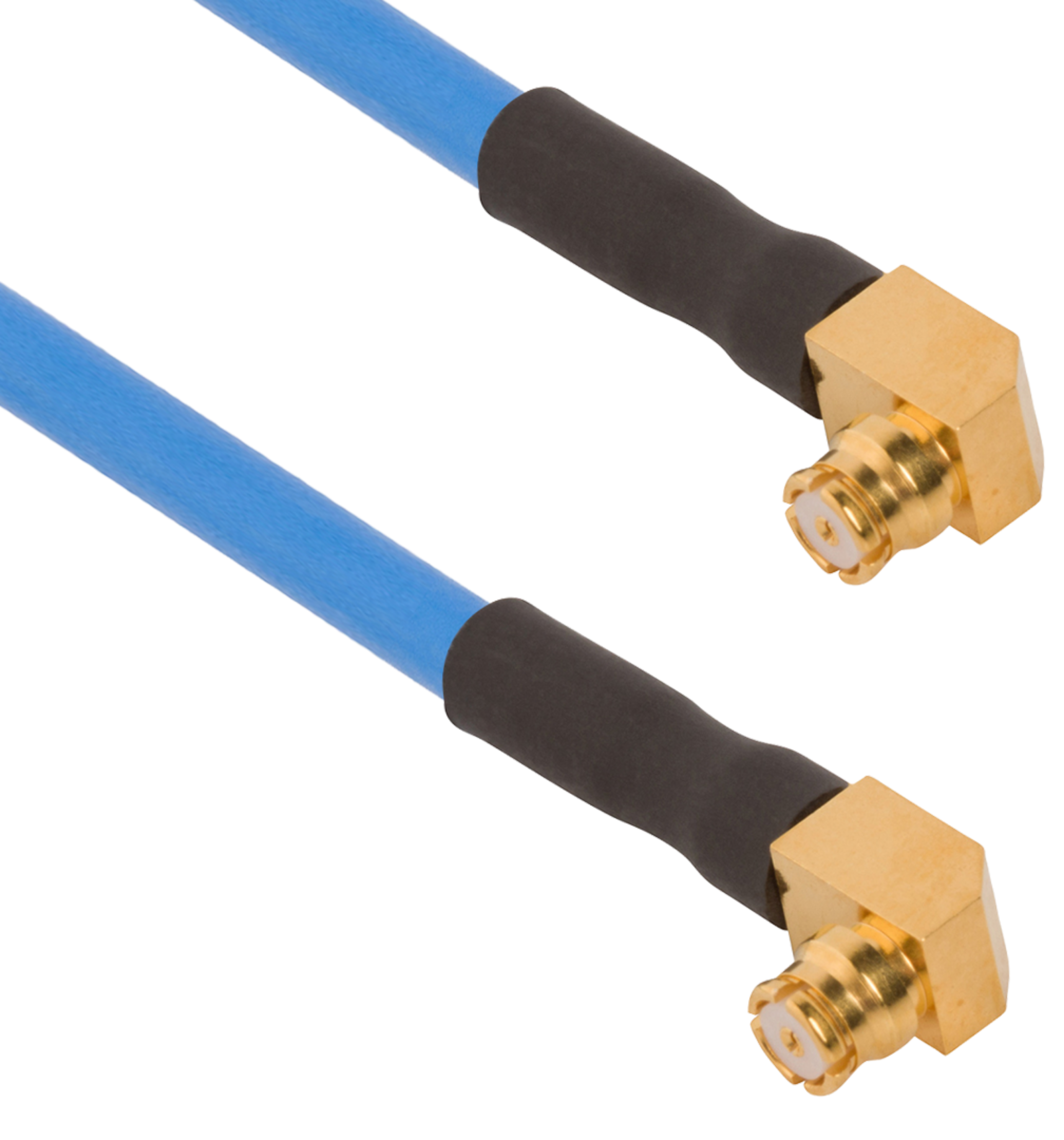

SMP Female R/A to SMP Female R/A 12" Cable Assembly for .085 Cable"

Available Inventory: 58
7012-0800
SMP Cable Assemblies 7012-0800
Datasheet
Part #   7012-1291

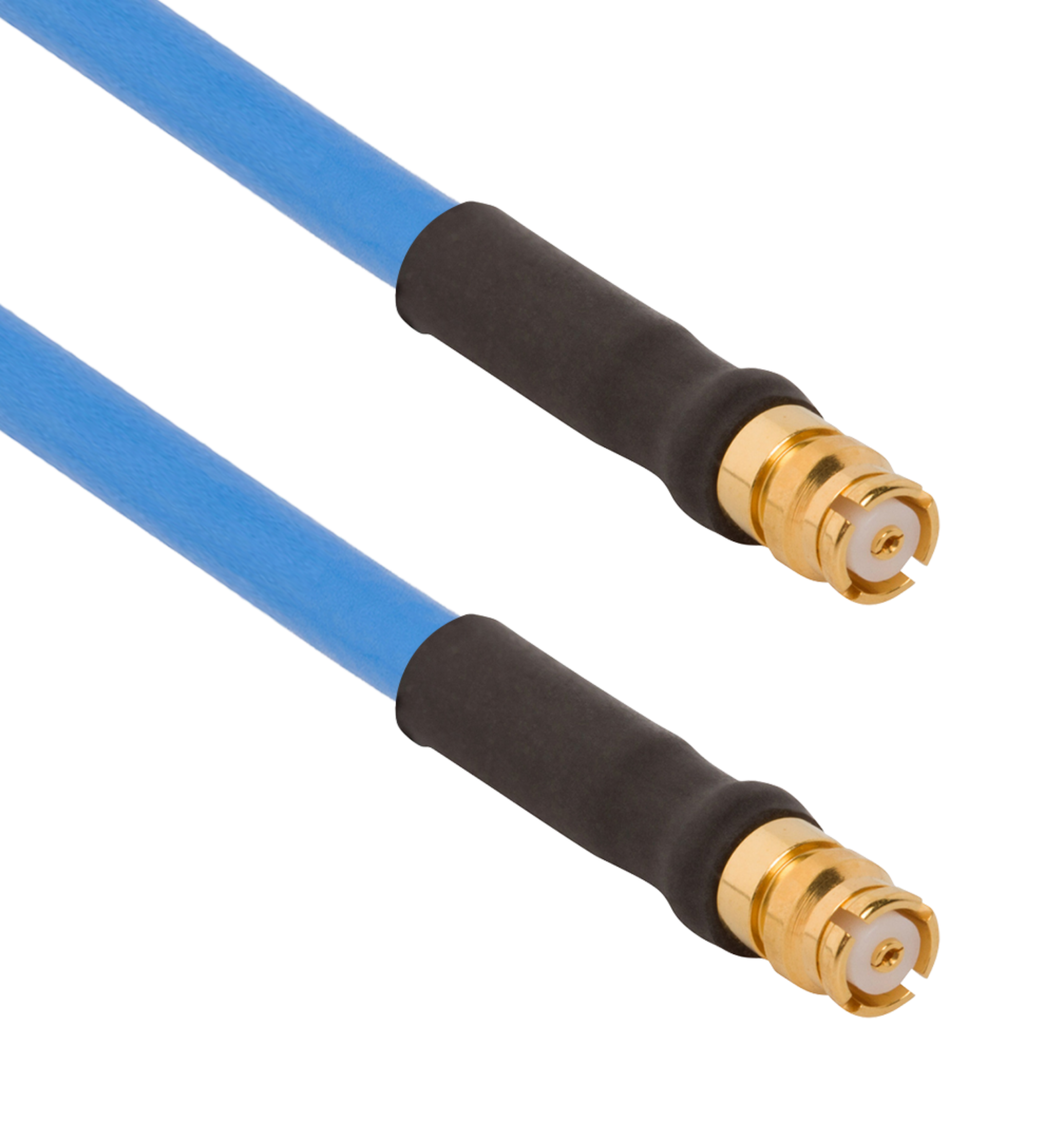

SMP Female to SMP Female 6" Cable Assembly for .085 Cable"
