P/N: SF1211-6025

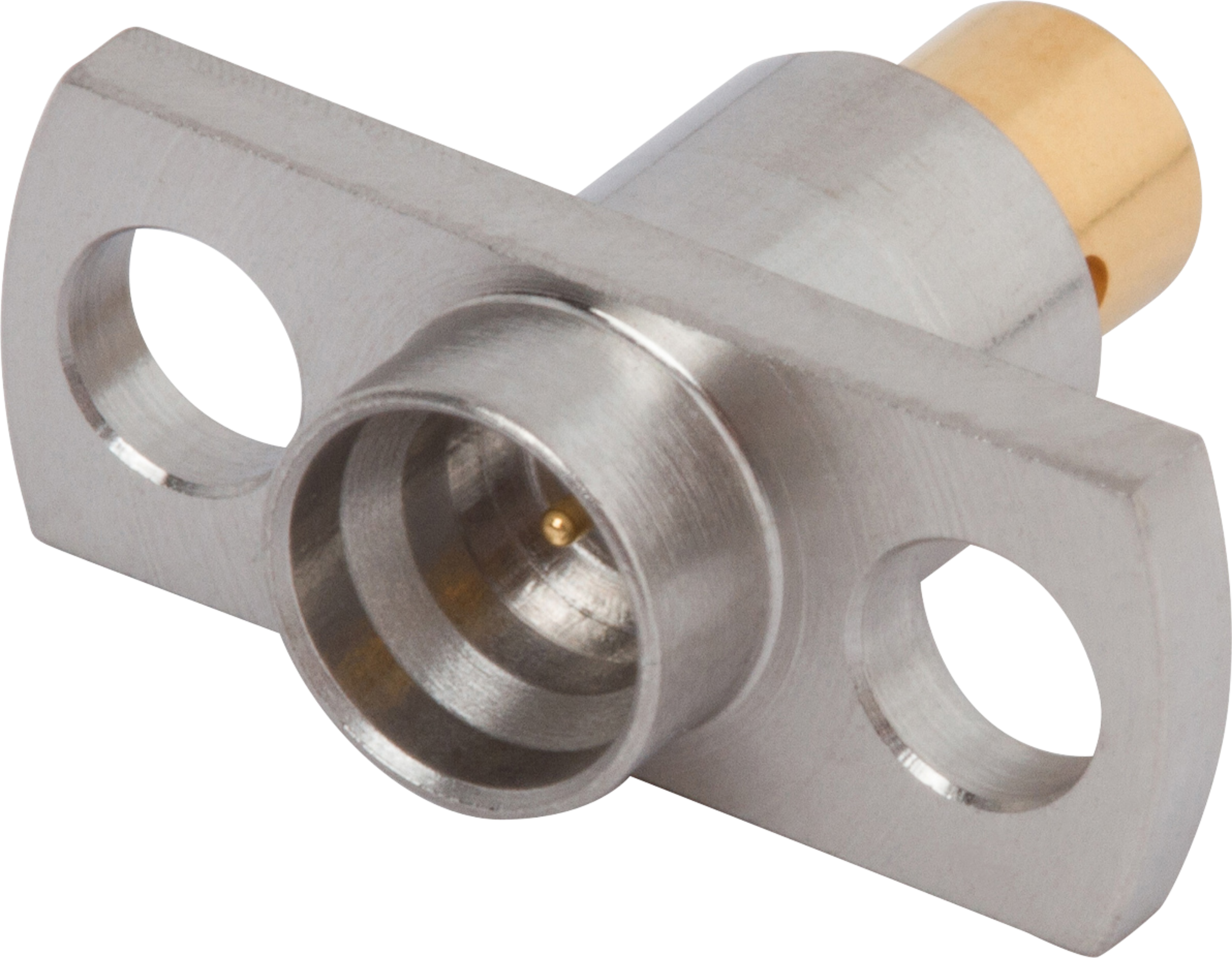

SMP Male Flange Mount Connector, 2 Hole, for .085 Cable, FD

In stock at Qty Order
Mouser Electronics 100 On Order
Digi-Key Electronics 100
Products specifications
Attribute name Attribute value
RF Series SMP
Coupling Push-on
Gender Plug (Male)
Orientation (Body) Straight
Body Style 2 Hole
Mounting Type Panel
Detent Full Detent
Termination Style Solder
Number of Ports Single
Finish Passivated
Frequency 40 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Mating Cycles - SB 1000
Frequency GHz 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Insertion Force - FD 7.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Withdrawal Force - FD 9.0 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Coupling Push-on
Gender Plug (Male)
Orientation (Body) Straight
Body Style 2 Hole
Mounting Type Panel
Detent Full Detent
Termination Style Solder
Number of Ports Single
Finish Passivated
Frequency 40 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Mating Cycles - SB 1000
Frequency GHz 40 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Mechanical
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Insertion Force - FD 7.0 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Withdrawal Force - FD 9.0 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
