SMP Male PCB Edge Launch Connector, .062" PCB Thickness, LD"
P/N: 1285-6003

In stock at Qty Order
Mouser Electronics 73
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Limited Detent
Mounting Type PCB Edge Launch
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Insertion Force - LD 5.0 lbs
Withdrawal Force - SB 0.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/6/2023 1:06:48 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Coupling Push-on
Orientation (Body) Straight
Detent Limited Detent
Mounting Type PCB Edge Launch
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Insertion Force - LD 5.0 lbs
Withdrawal Force - SB 0.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1285-6002

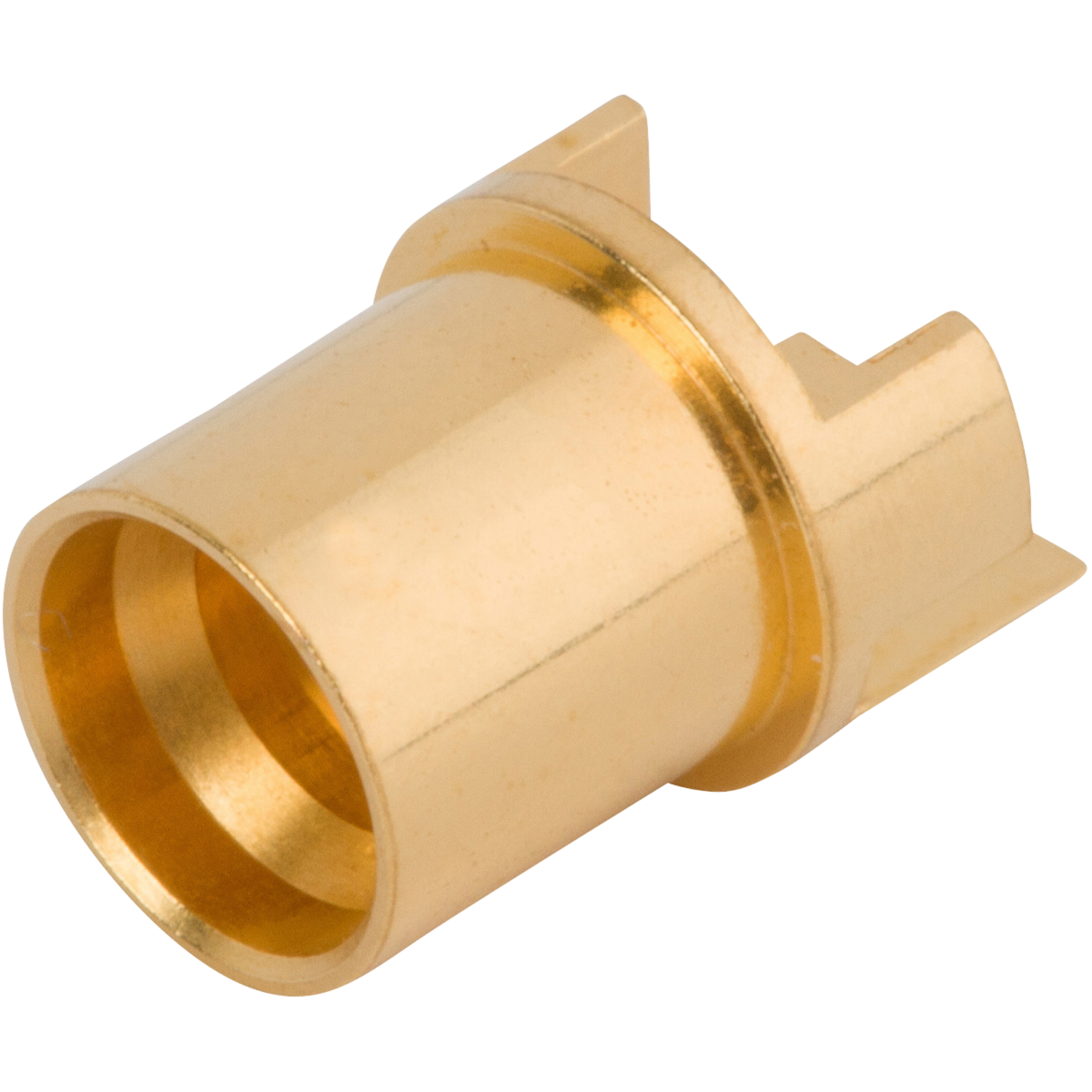

SMP Male PCB Edge Launch Connector, .062" PCB Thickness, FD"

Available Inventory: 988
1285-6002
SMP Connectors 1285-6002
Datasheet
Part #   1285-6004

SMP Male PCB Edge Launch Connector, .062" PCB Thickness, SB"

Available Inventory: 86
1285-6004
SMP Connectors 1285-6004
Datasheet
Part #   1211-40089

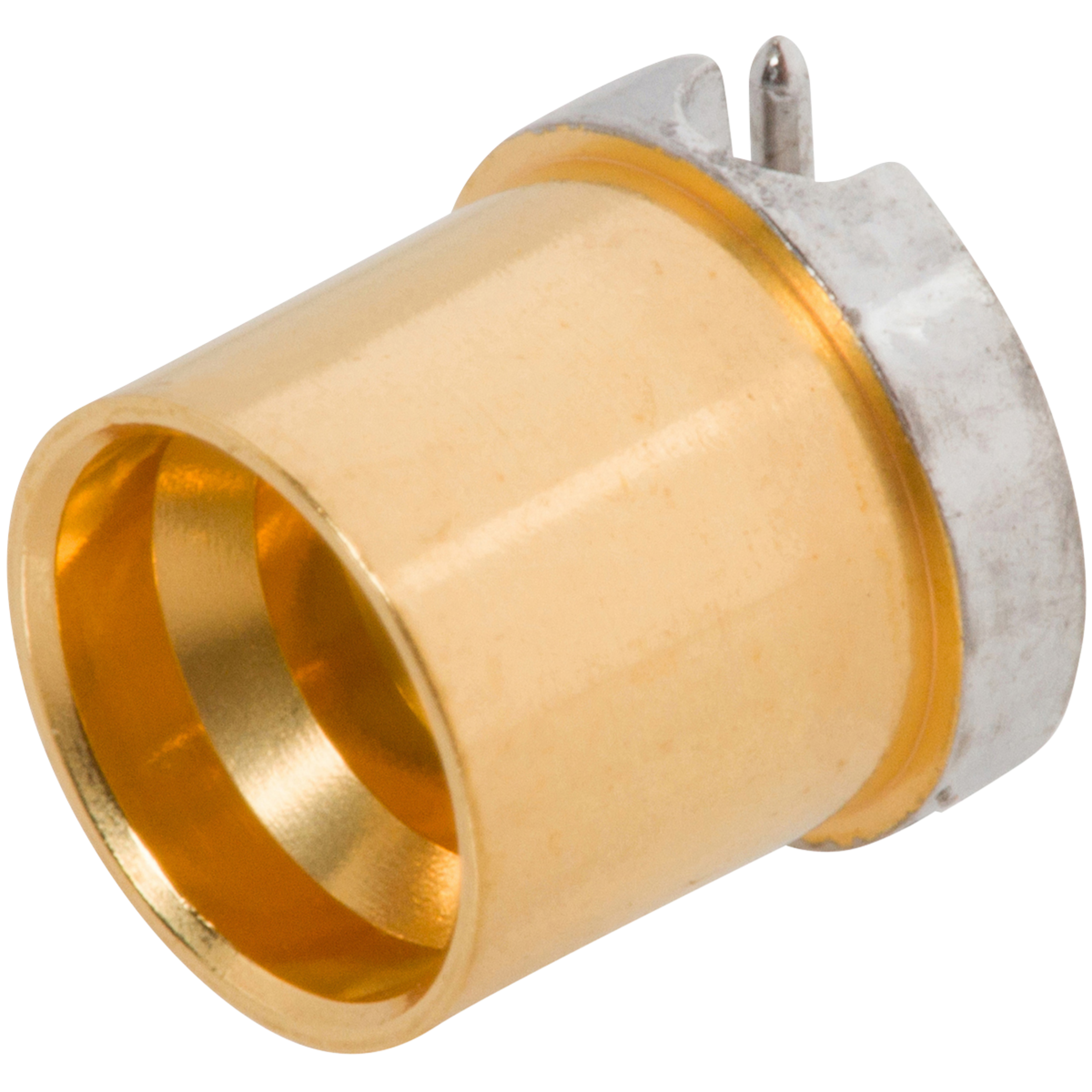

SMP Male PCB Surface Mount Connector (Pre-Tinned), R/A, FD
