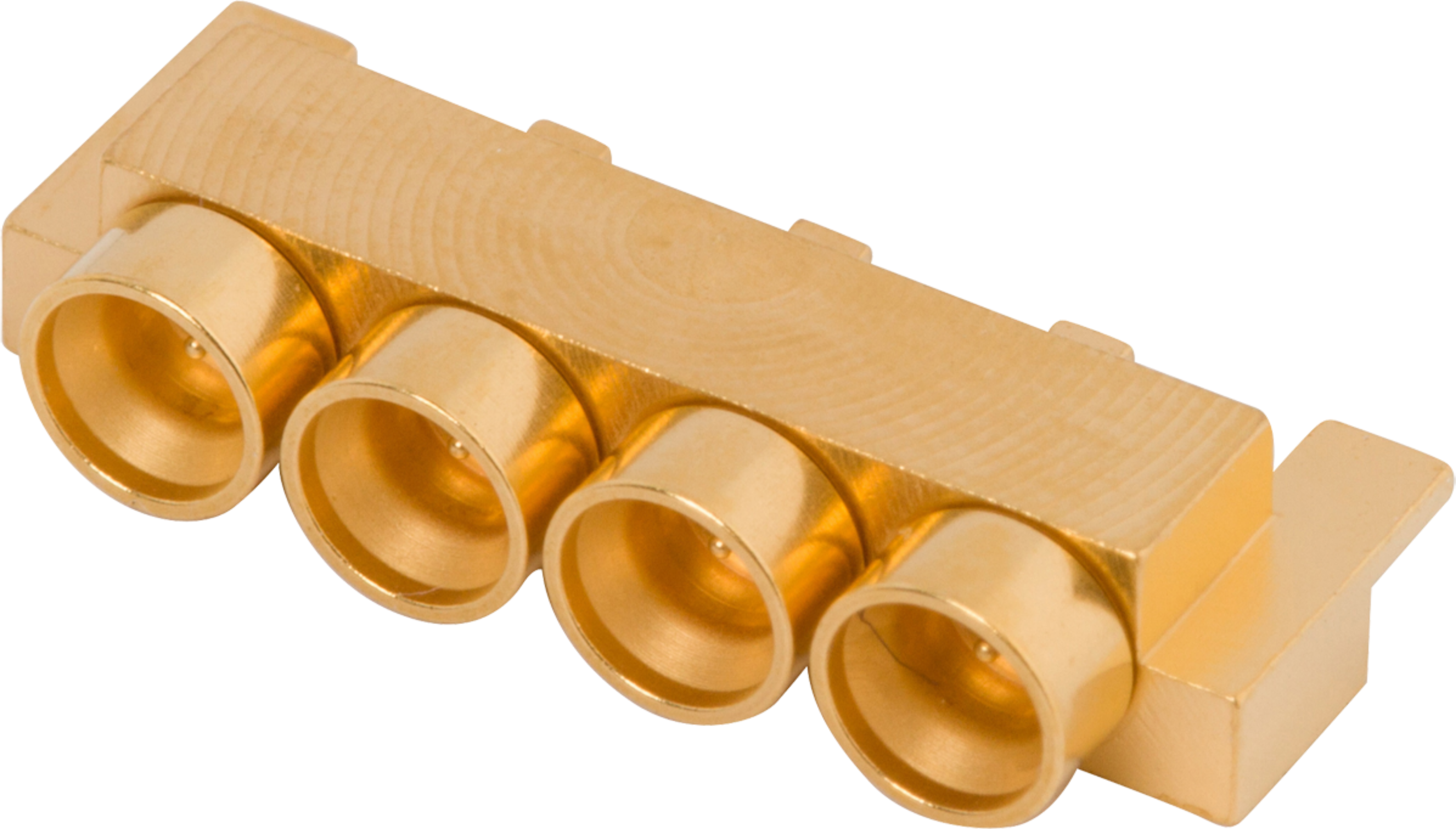

SMP Male PCB Edge Launch Connector, 4 Port, FD
P/N: 9311-60038

In stock at Qty Order
Digi-Key Electronics 56
Mouser Electronics 15
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Full Detent
Mounting Type PCB Edge Launch
Termination Style Solder
Number of Ports Multiple
Finish Gold
Electrical
Impedance 50 ohms
Frequency 26.5 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - LD 500
Mating Cycles - FD 100
Mating Cycles - SB 1000
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/6/2023 1:07:25 AM
