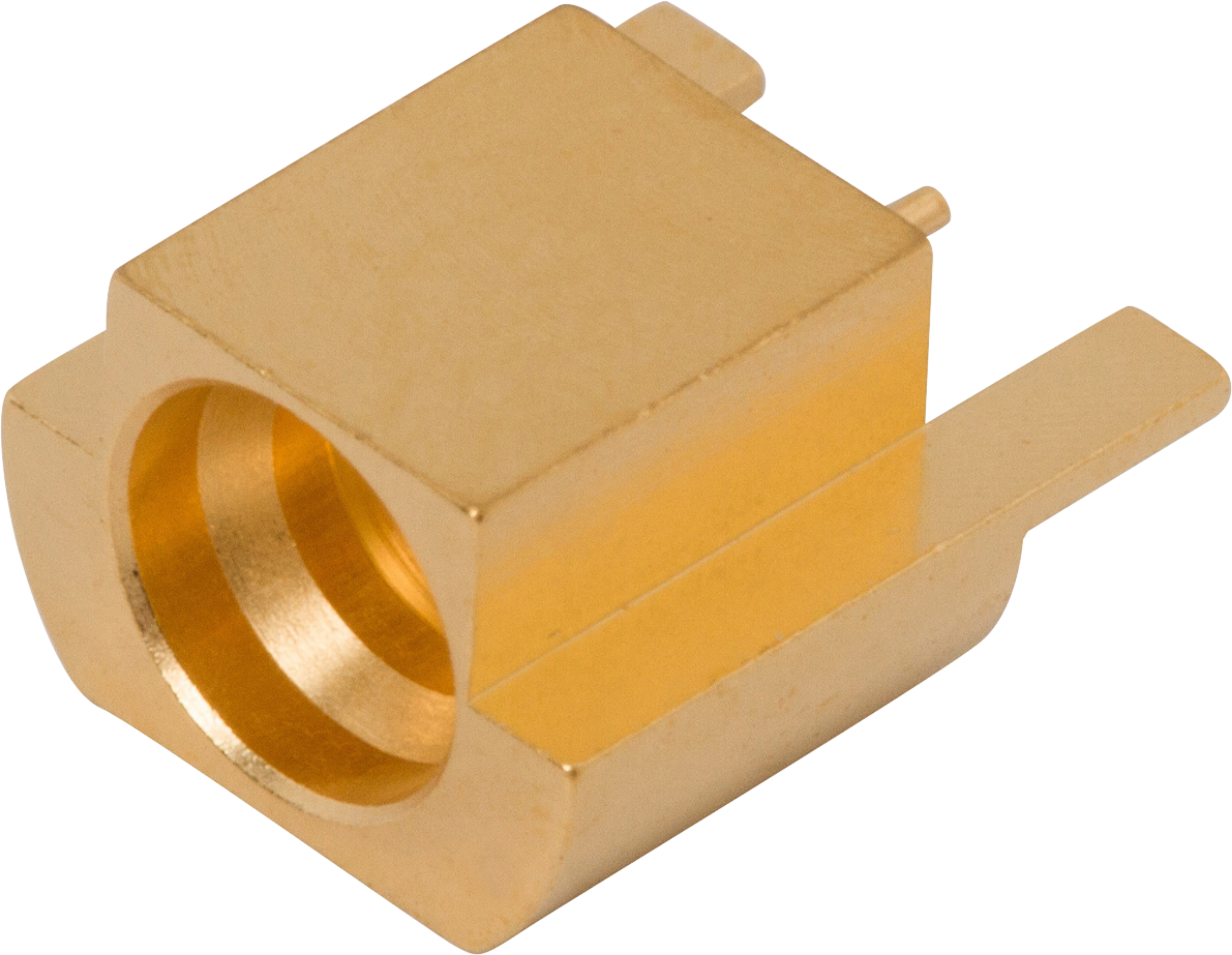

SMP Male PCB Edge Launch Connector, SB
P/N: 1211-66139

In stock at Qty Order
Newark 296
Farnell 296
TTI Inc Global Headquarters 250
Digi-Key Electronics 125
Mouser Electronics 58
Master Electronics 46
Onlinecomponents.com 46
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Mounting Type PCB Edge Launch
Detent Smooth Bore
Termination Style Solder
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Mating Cycles - FD 100
Insertion Force - SB 3.0 lbs
Insertion Force - LD 5.0 lbs
Insertion Force - FD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - LD 7.0 lbs
Axial Misalignment .010” Max
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:22:26 AM
