SMP Male, SB to Male Adapter, FD
P/N: 1112-6226

Name: SMP Male, SB to Male Adapter, FD | 1112-6226
SKU: 1112-6226
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
RF Series	SMP
Gender	Plug (Male)
Orientation (Body)	Straight
Coupling	Push-on
Detent	Smooth Bore
RF Series 2	SMP
Gender 2	Plug (Male)
Orientation 2 (Body)	Straight
Detent 2	Full Detent
Electrical
Frequency	40 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mechanical
Mating Cycles - LD	500
Mating Cycles - SB	1000
Mating Cycles - FD	100
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Withdrawal Force - FD	9.0 lbs
Axial Misalignment	.010” Max
Radial Misalignment	3° Max
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Vibration	MIL-STD-202, Method 204, Condition D
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Product tags

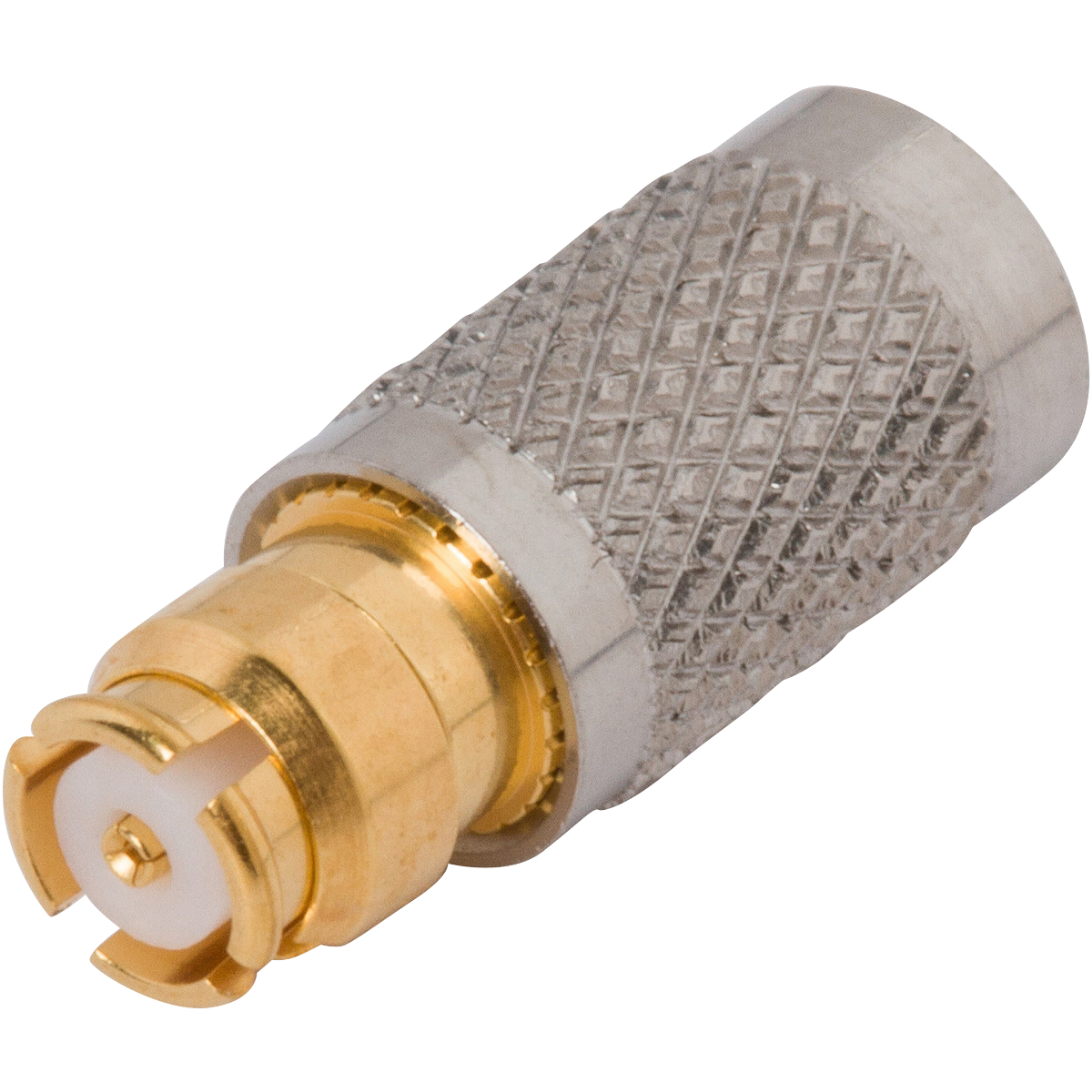

SMP Male to Female Adapter, LD
