P/N: SF1211-66344-2S

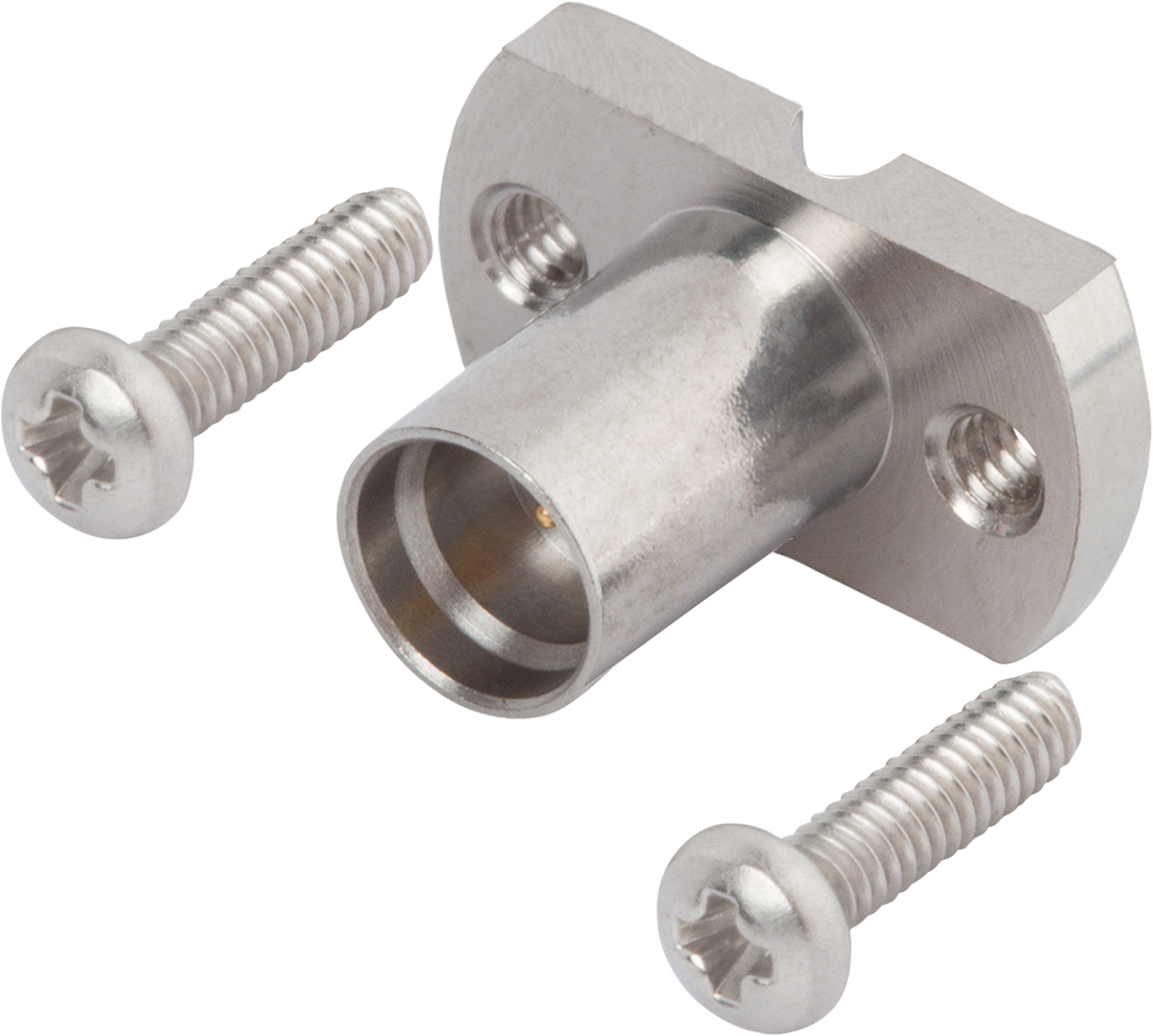

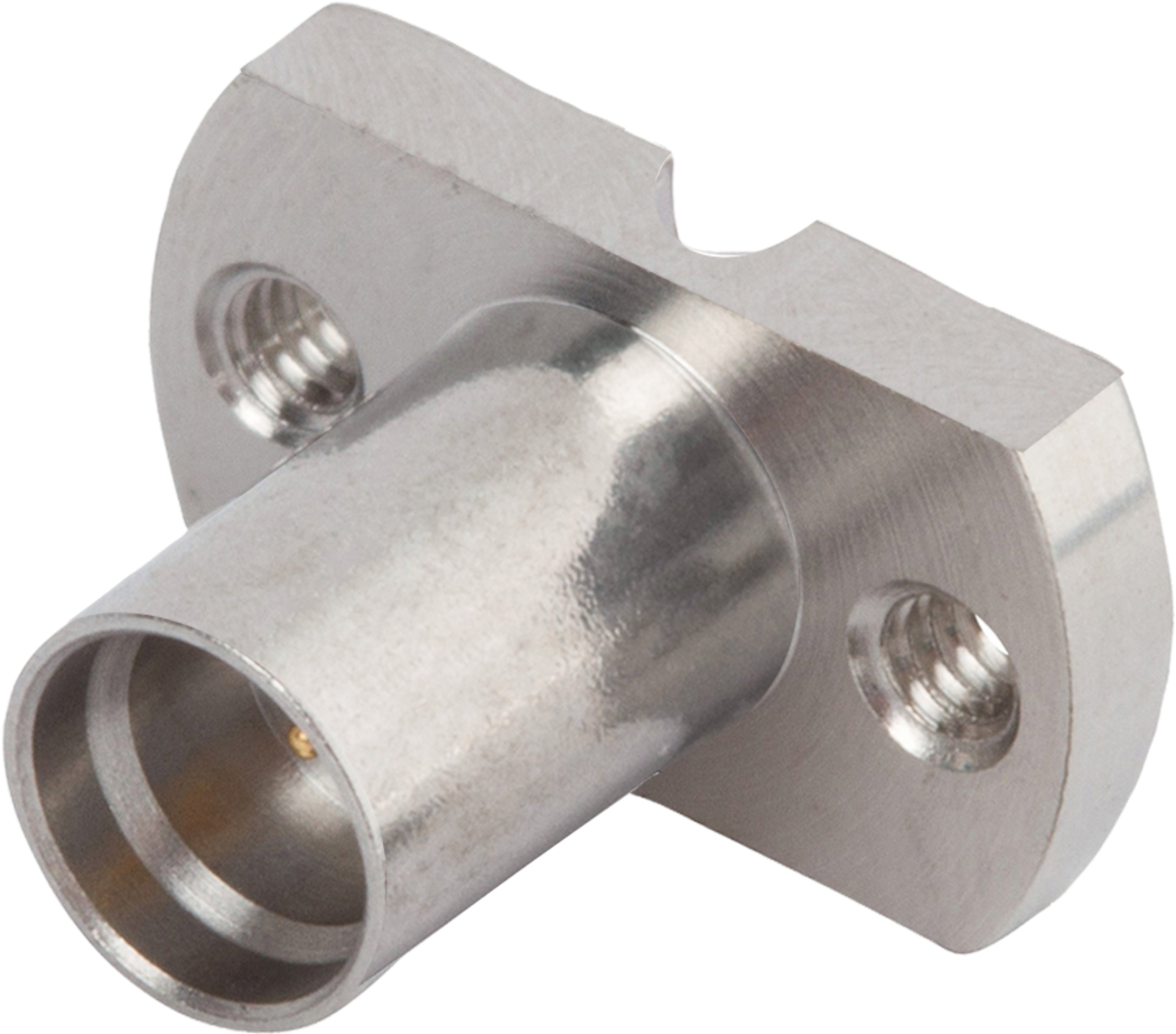

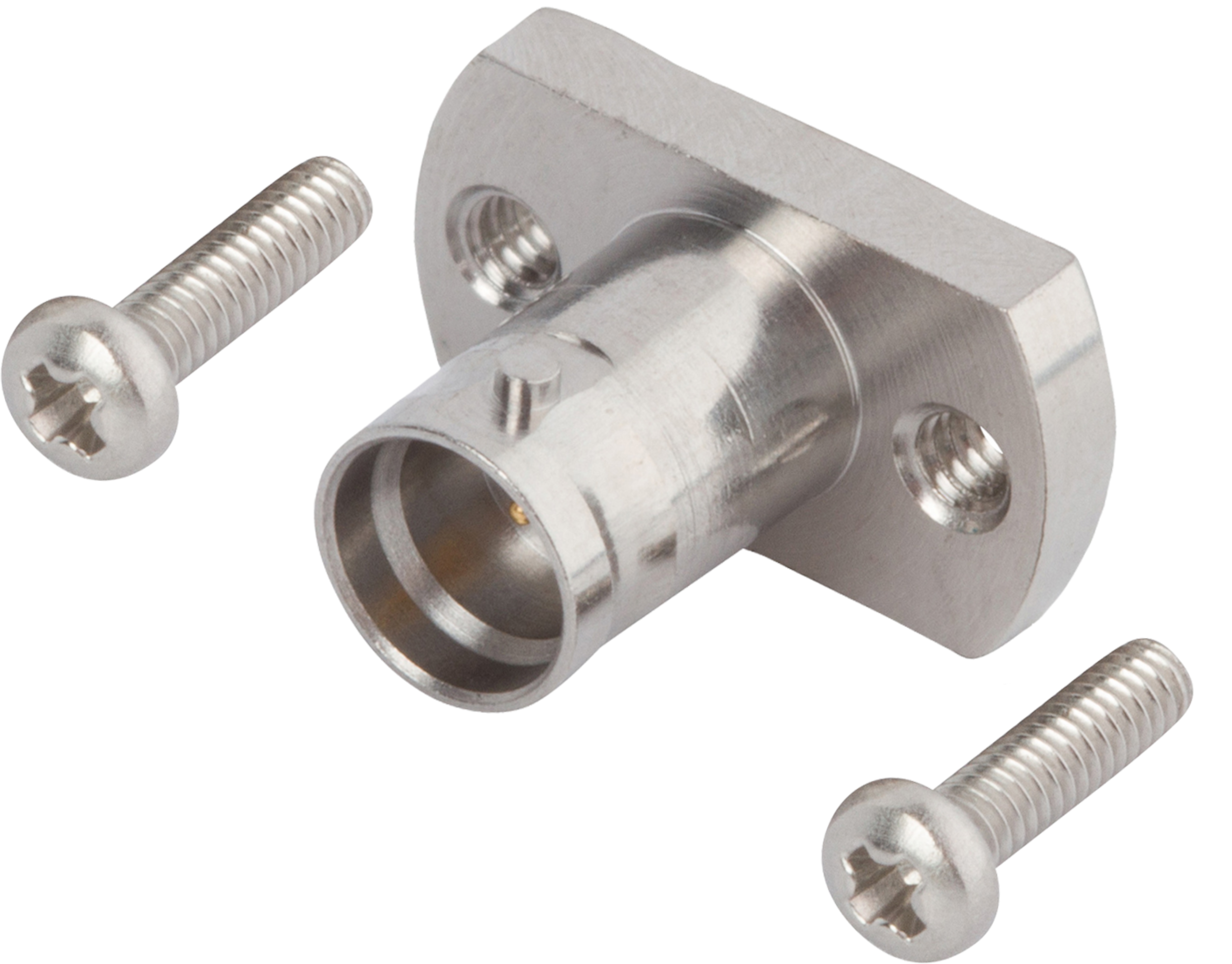

SMP Male Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)

In stock at Qty Order
Arrow Electronics Inc 100
Newark 98
Farnell 98
Mouser Electronics 56
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Detent Full Detent
Orientation (Body) Straight
Coupling Push-on
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Termination Style Solder-free
Number of Ports Single
Frequency 18 GHz
Impedance 50 ohms
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles - SB 1000
Mechanical
Mating Cycles - FD 100
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - SB 0.5 lbs
Withdrawal Force - FD 9.0 lbs
Temperature Rating -65°C to +165°C
Insertion Force - FD 7.0 lbs
Axial Misalignment .010” Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Insertion Force - SB 3.0 lbs
Radial Misalignment 3° Max
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
