SMP Male to 2.92 Female Adapter, LD
P/N: SF1112-6025

In stock at Qty Order
Digi-Key Electronics 8
Downloads
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Limited Detent
Finish Passivated
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Axial Misalignment .010” Max
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Withdrawal Force - SB 0.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:01:41 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMP
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Limited Detent
Finish Passivated
RF Series 2 2.92 mm
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency 40 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles - SB 1000
Mating Cycles - LD 500
Insertion Force - LD 5.0 lbs
Insertion Force - SB 3.0 lbs
Mating Cycles - FD 100
Axial Misalignment .010” Max
Insertion Force - FD 7.0 lbs
Withdrawal Force - LD 7.0 lbs
Withdrawal Force - FD 9.0 lbs
Radial Misalignment 3° Max
Withdrawal Force - SB 0.5 lbs
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Customers Also Viewed
Part #   SF1112-6031

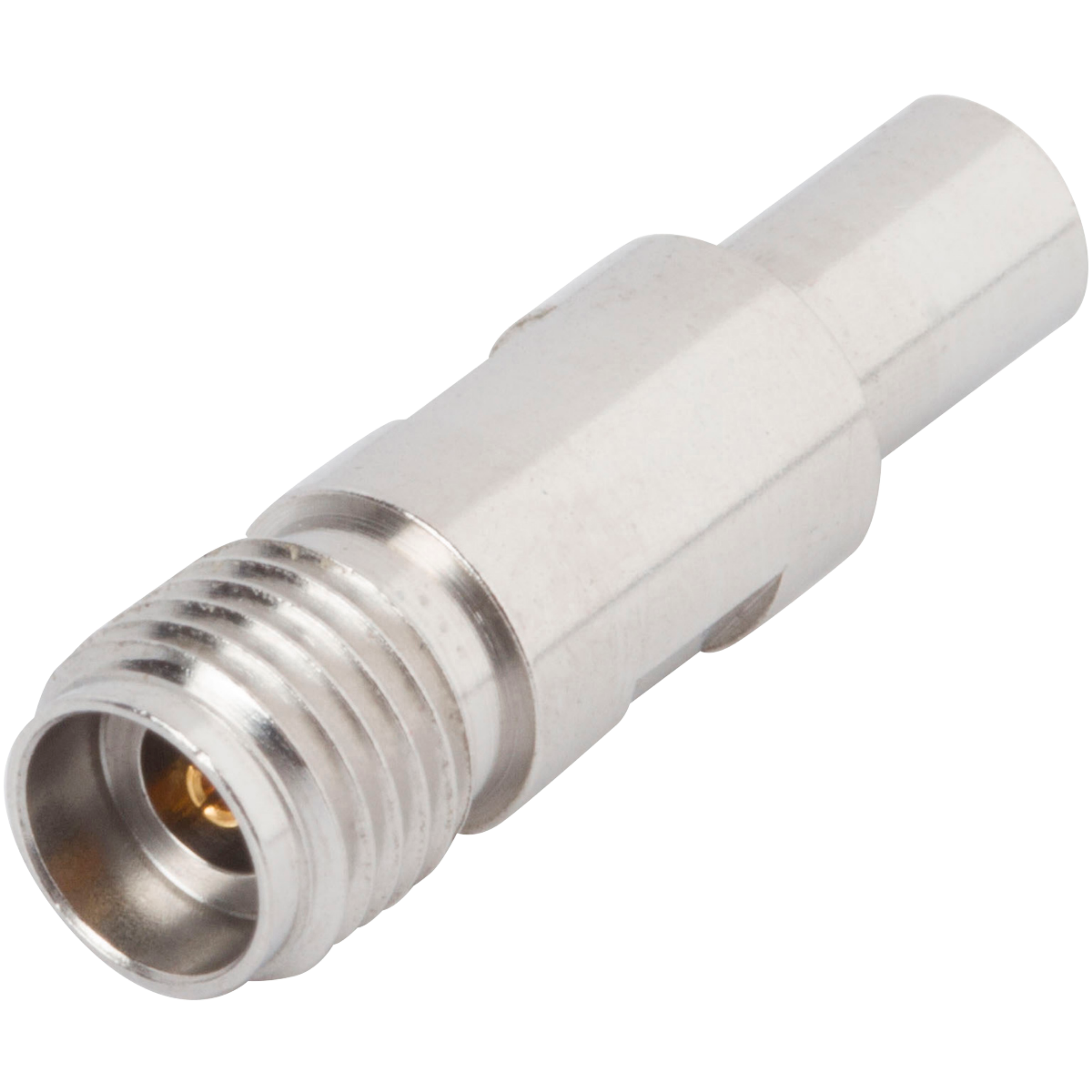

SMP Male to 2.92 Female Adapter, SB

Available Inventory: 109
SF1112-6031
SMP Adapters SF1112-6031
Datasheet
Part #   SF1115-6005

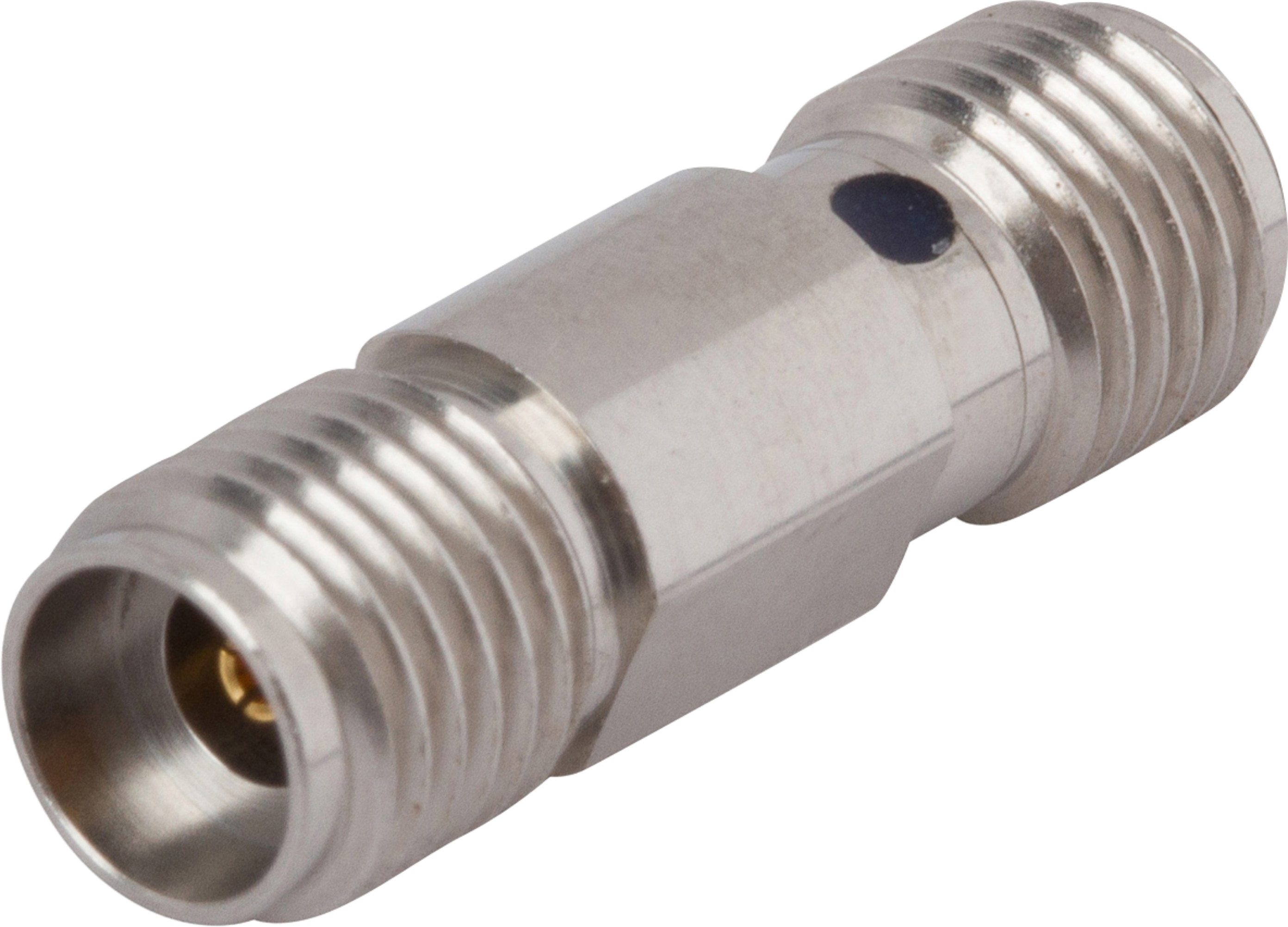

2.92mm Female to SMA Female Adapter

Available Inventory: 286
SF1115-6005
2.92mm Adapters SF1115-6005
Datasheet
Part #   SF1115-6007

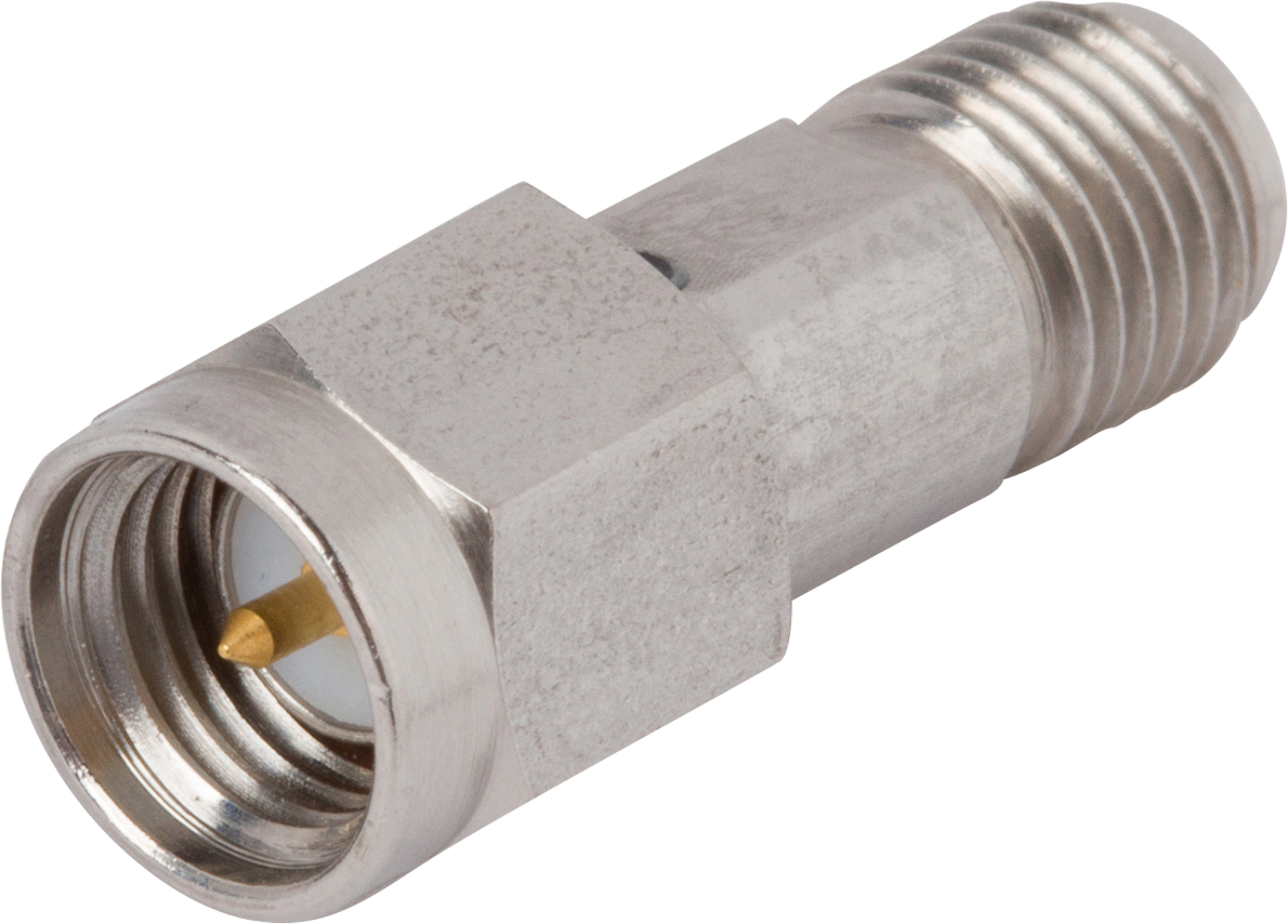

2.92mm Female to SMA Male Adapter
