Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMP |
| Gender | Plug (Male) |
| Coupling | Push-on |
| Finish | Passivated |
| RF Series 2 | SMP |
| Gender 2 | Plug (Male) |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 40 GHz |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Intermateability | SMA |
| Environmental | |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMP |
| Gender | Plug (Male) |
| Coupling | Push-on |
| Finish | Passivated |
| RF Series 2 | SMP |
| Gender 2 | Plug (Male) |
| Electrical | |
| Impedance | 50 ohms |
| Frequency | 40 GHz |
| Shielding Effectiveness | ≥ -100 dB |
| Dielectric withstanding Voltage | 750 VRMS |
| Mechanical | |
| Mating Cycles | 500 |
| Mating Torque | 7 - 10 in - lbs |
| Intermateability | SMA |
| Environmental | |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Customers Also Viewed

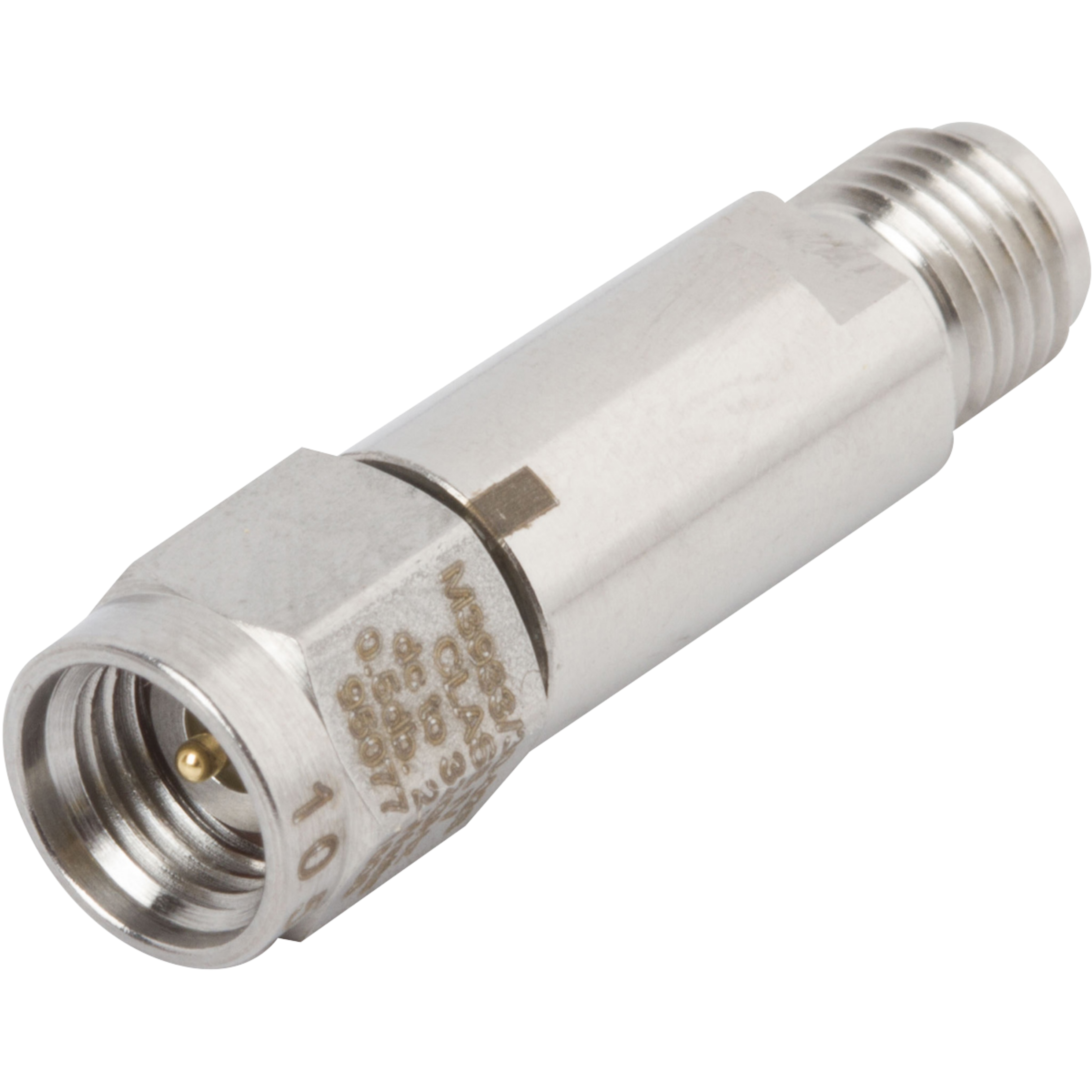

M3933/30-XXN
2.92mm Attenuator M3933/30-02N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N M3933/30-02N M3933/30-03N M3933/30-04N M3933/30-05N M3933/30-06N M3933/30-07N M3933/30-08N M3933/30-09N M3933/30-10N M3933/30-11N M3933/30-12N M3933/30-13N M3933/30-14N M3933/30-15N M3933/30-16N M3933/30-17N M3933/30-18N M3933/30-19N M3933/30-20N M3933/30-21N M3933/30-22N M3933/30-23N M3933/30-24N M3933/30-25N M3933/30-26N M3933/30-27N M3933/30-28N M3933/30-29N M3933/30-30N M3933/30-31N M3933/30-32N M3933/30-33N M3933/30-34N M3933/30-35N
M3933/30-XXS
2.92mm Attenuator M3933/30-02S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S M3933/30-02S M3933/30-03S M3933/30-04S M3933/30-05S M3933/30-06S M3933/30-07S M3933/30-08S M3933/30-09S M3933/30-10S M3933/30-11S M3933/30-12S M3933/30-13S M3933/30-14S M3933/30-15S M3933/30-16S M3933/30-17S M3933/30-18S M3933/30-19S M3933/30-20S M3933/30-21S M3933/30-22S M3933/30-23S M3933/30-24S M3933/30-25S M3933/30-26S M3933/30-27S M3933/30-28S M3933/30-29S M3933/30-30S M3933/30-31S M3933/30-32S M3933/30-33S M3933/30-34S M3933/30-35S

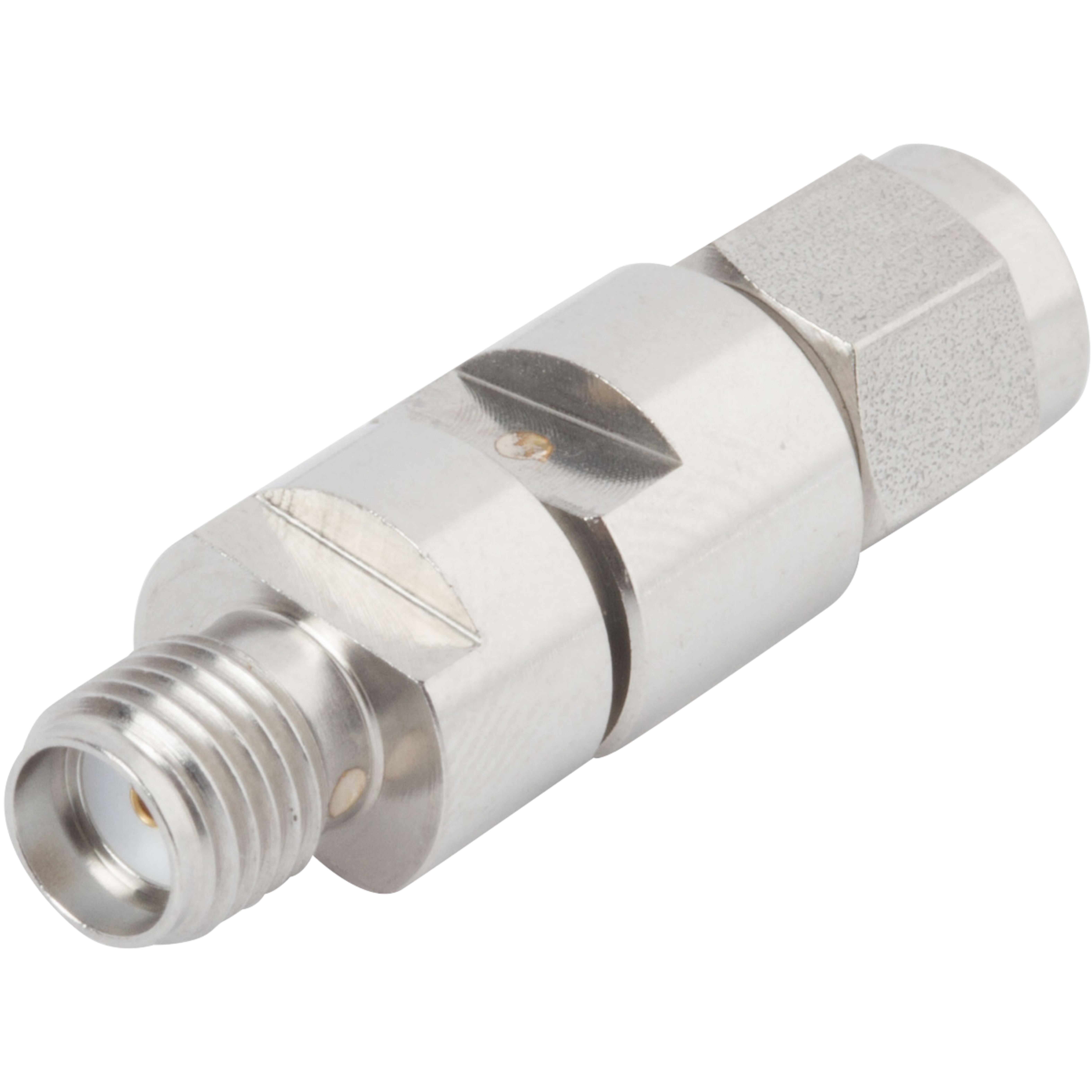

M3933/16-XXN
