SMPM Female R/A to SMPM Female 6" Cable Assembly for .085 Cable"
P/N: 7032-7156

In stock at Qty Order
Digi-Key Electronics 55
Products specifications
Attribute name Attribute value
Gender Jack (Female)
Orientation (Body) Right Angle
RF Series SMPM
Coupling Push-on
Termination Style Solder
RF Series 2 SMPM
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Gender 2 Jack (Female)
Cable Length 6"
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/6/2023 1:04:12 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Gender Jack (Female)
Orientation (Body) Right Angle
RF Series SMPM
Coupling Push-on
Termination Style Solder
RF Series 2 SMPM
Orientation 2 (Body) Right Angle
Cable Type 0.085 Flexible Coax
Gender 2 Jack (Female)
Cable Length 6"
Electrical
Impedance 50 ohms
Frequency 40 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7032-6355

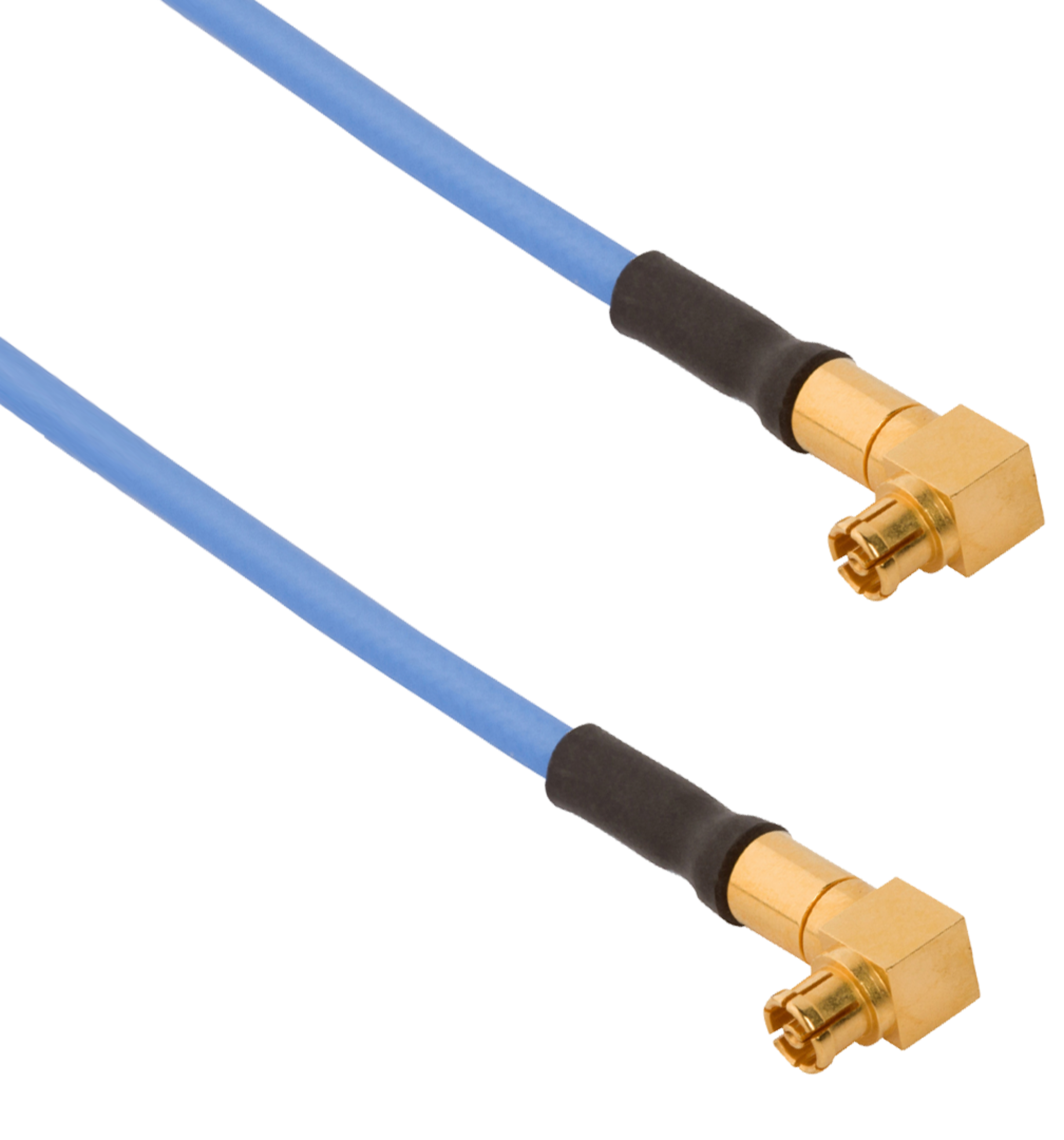

SMPM Female R/A to SMPM Female R/A 12" Cable Assembly for .047 Cable"

Available Inventory: 185
7032-6355
SMPM Cable Assemblies 7032-6355
Datasheet
Part #   7032-7158

SMPM Female R/A to SMPM Female R/A 24" Cable Assembly for .085 Cable"

Available Inventory: 76
7032-7158
SMPM Cable Assemblies 7032-7158
Datasheet
Part #   7032-7157

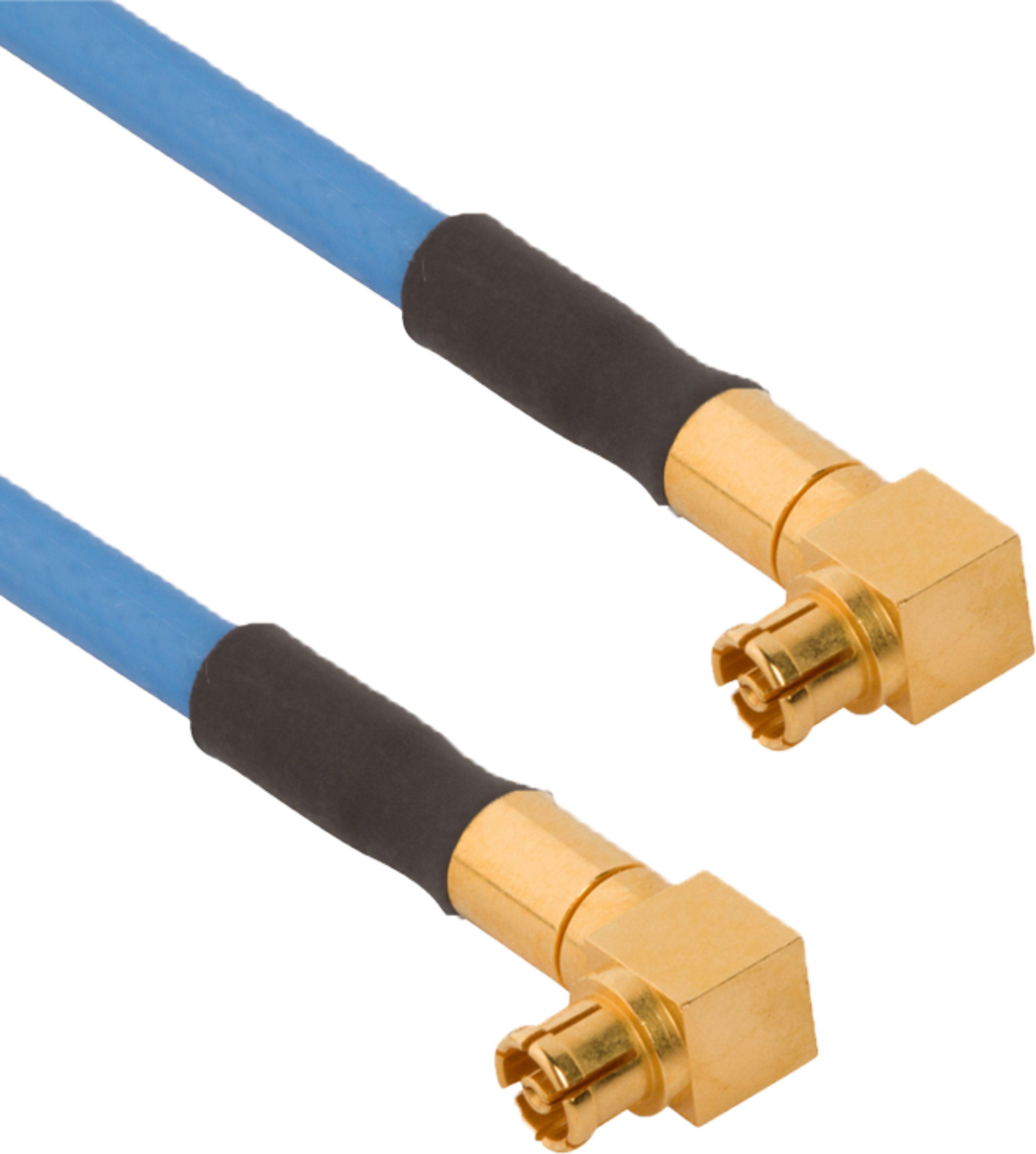

SMPM Female R/A to SMPM R/A Female 12" Cable Assembly for .085 Cable"
