| Attribute name | Attribute value |
|---|---|
| RF Series | SMPM |
| Gender | Jack (Female) |
| Orientation (Body) | Right Angle |
| Coupling | Push-on |
| Termination Style | Solder |
| RF Series 2 | SMPM |
| Gender 2 | Jack (Female) |
| Orientation 2 (Body) | Right Angle |
| Cable Type | 0.047 Flexible Coax |
| Cable Length | 24" |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - FD | 100 |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 2.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - FD | 6.5 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| EU RoHS Directive 2011/65/EU | Not Compliant These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance. |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:12:05 AM | |
| Attribute name | Attribute value |
|---|---|
| RF Series | SMPM |
| Gender | Jack (Female) |
| Orientation (Body) | Right Angle |
| Coupling | Push-on |
| Termination Style | Solder |
| RF Series 2 | SMPM |
| Gender 2 | Jack (Female) |
| Orientation 2 (Body) | Right Angle |
| Cable Type | 0.047 Flexible Coax |
| Cable Length | 24" |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - FD | 100 |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 2.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - FD | 6.5 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Temperature Rating | -65°C to +165°C |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Part # 7032-6353

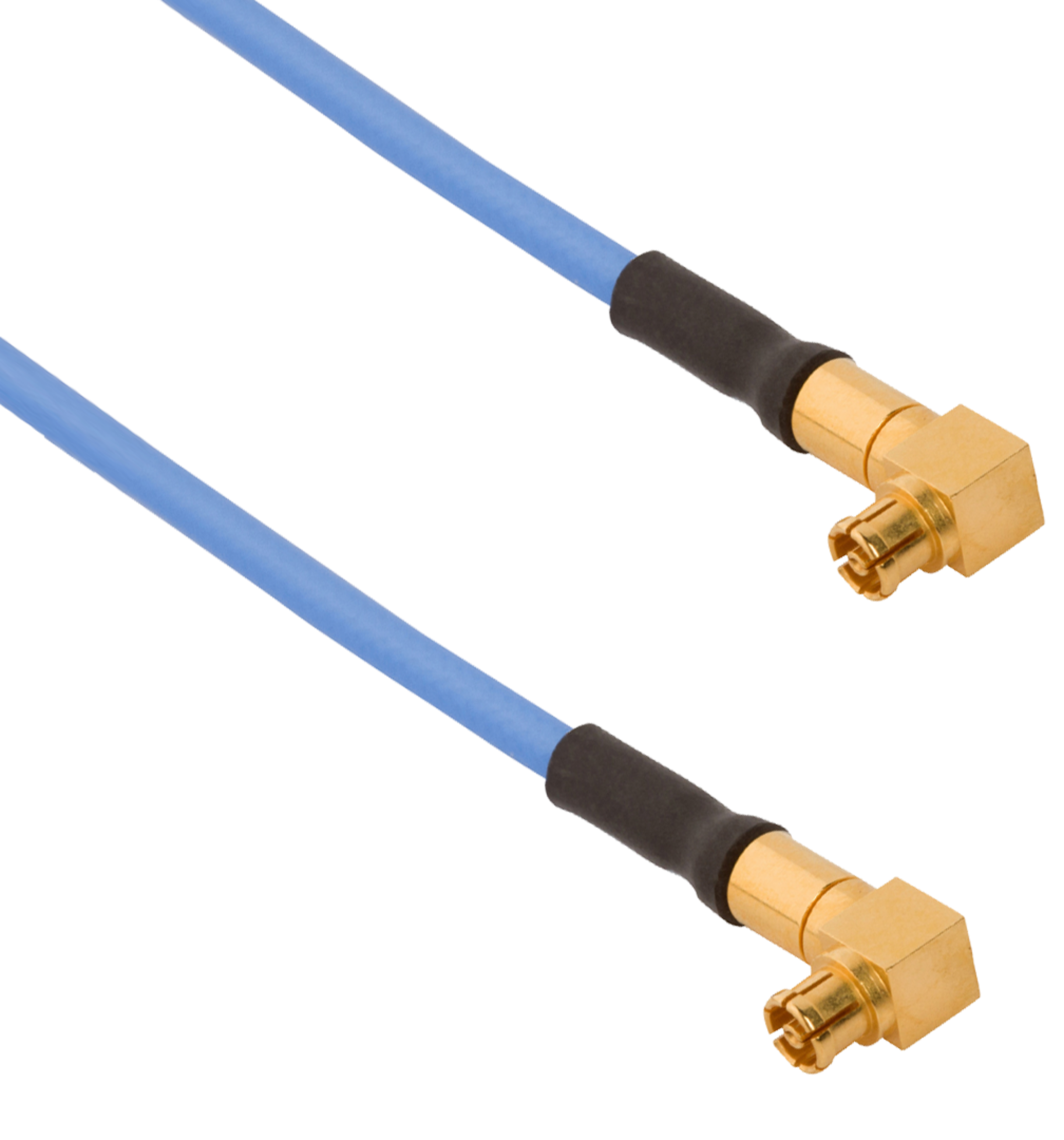

SMPM Female to SMPM Female 24" Cable Assembly for .047 Cable
Available Inventory: 29
Part # 7032-6354
SMPM Female R/A to SMPM Female 6" R/A Cable Assembly for .047 Cable
Available Inventory: 419
