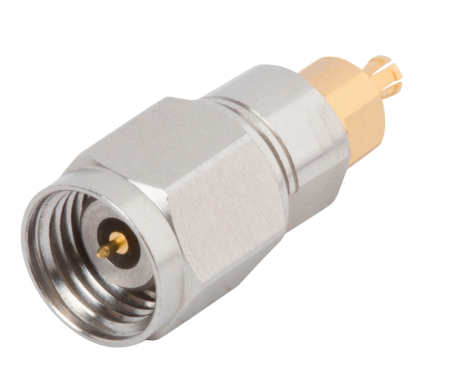

SMPM Female to 1.85mm Male Adapter
P/N: 1132-6142

Name: SMPM Female to 1.85mm Male Adapter
SKU: 1132-6142
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
RF Series	SMPM
Gender	Jack (Female)
Orientation (Body)	Straight
Coupling	Push-on
Finish	Gold
RF Series 2	1.85 mm
Gender 2	Plug (Male)
Orientation 2 (Body)	Straight
Electrical
Frequency	65 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage	500 VRMS
Mechanical
Mating Cycles - SB	1000
Mating Cycles - FD	100
Mating Cycles - LD	500
Insertion Force - SB	3.0 lbs
Insertion Force - LD	5.0 lbs
Insertion Force - FD	7.0 lbs
Withdrawal Force - SB	0.5 lbs
Withdrawal Force - LD	7.0 lbs
Axial Misalignment	.010” Max
Withdrawal Force - FD	9.0 lbs
Radial Misalignment	3° Max
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Shock	MIL-STD-202, Method 213, Condition I
Vibration	MIL-STD-202, Method 204, Condition D
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock	MIL-STD-202, Method 107, Condition B
