| Attribute name | Attribute value |
|---|---|
| Family | SuperFlex |
| RF Series | SMPM |
| Orientation (Body) | Straight |
| Termination Style | Solder |
| Coupling | Push-on |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.047 SuperFlex Coax |
| Gender | Jack (Female) |
| Number of Ports | Single |
| Cable Length | 12" |
| Electrical | |
| Frequency | 26.5 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - FD | 6.5 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| EU RoHS Directive 2011/65/EU | Yes, w/ Exemption 6C These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions. |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 30000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
| CE / UKCA | Compliant This products meets the requirements for CE and UKCA. |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:13:37 AM | |
| Attribute name | Attribute value |
|---|---|
| Family | SuperFlex |
| RF Series | SMPM |
| Orientation (Body) | Straight |
| Termination Style | Solder |
| Coupling | Push-on |
| Gender 2 | Plug (Male) |
| RF Series 2 | SMA |
| Orientation 2 (Body) | Straight |
| Cable Type | 0.047 SuperFlex Coax |
| Gender | Jack (Female) |
| Number of Ports | Single |
| Cable Length | 12" |
| Electrical | |
| Frequency | 26.5 GHz |
| Impedance | 50 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 325 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Mating Cycles - FD | 100 |
| Insertion Force - SB | 2.5 lbs |
| Withdrawal Force - SB | 1.5 lbs |
| Insertion Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Withdrawal Force - FD | 6.5 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Part # 7032-7845

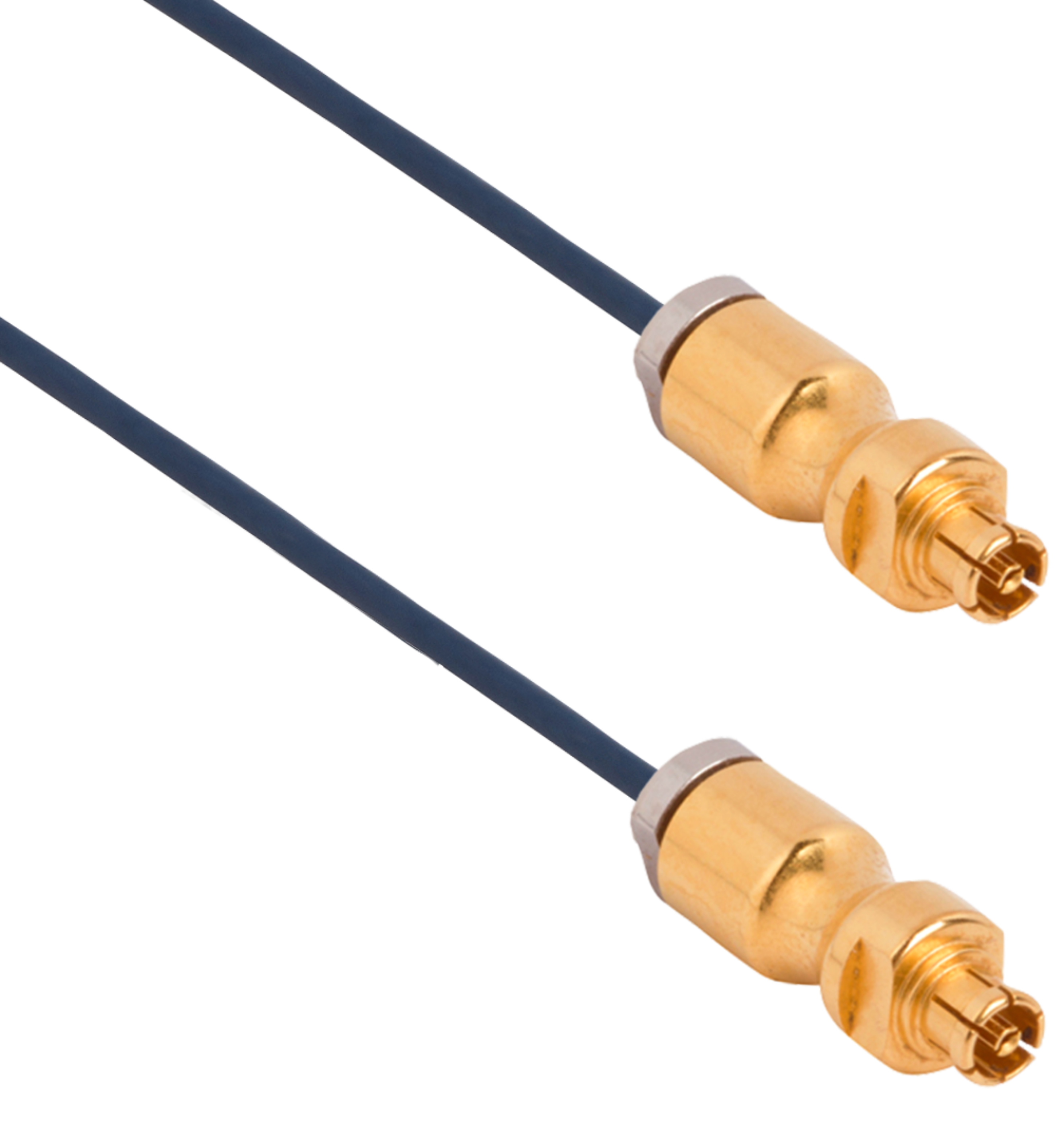

SMPM Female to SMPM Female 6" Cable Assembly for .047 SuperFlex Cable
Available Inventory: 13
Part # 7029-3437

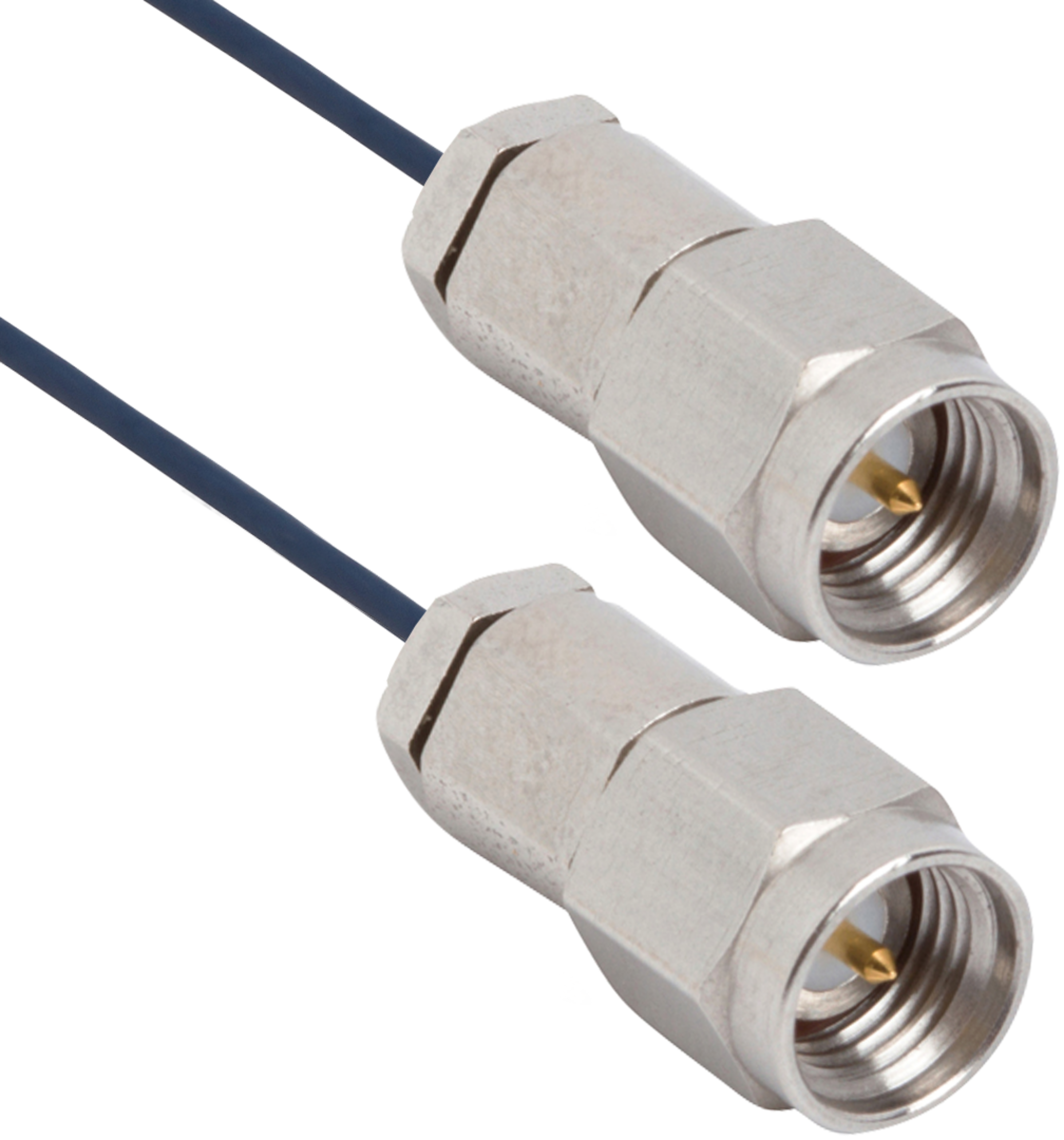

SMA Male to SMA Male 6" Cable Assembly for .047 SuperFlex Cable
