P/N: 7032-7526

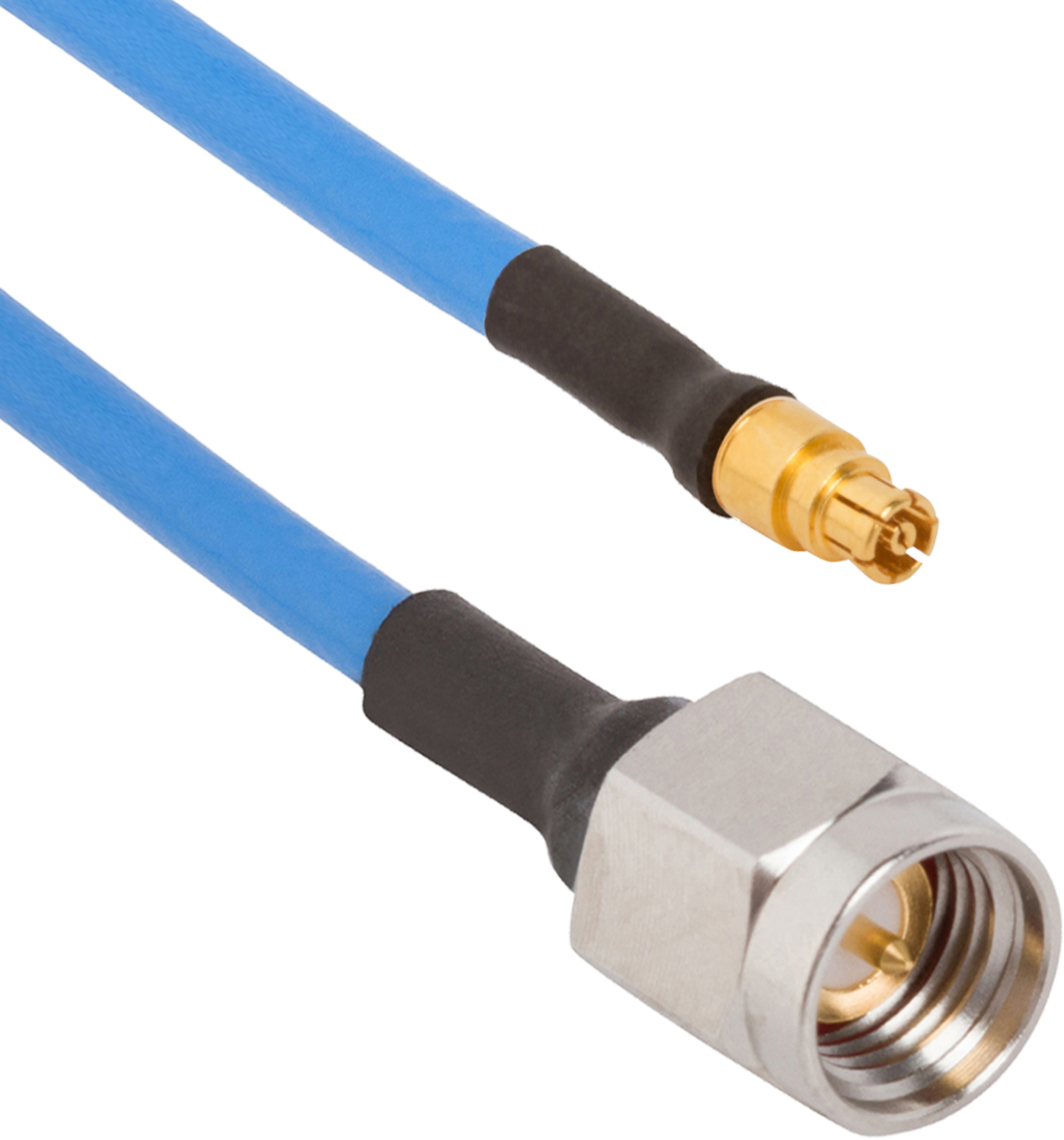

SMPM Female to SMA Male 6" Cable Assembly for .085 Cable"

In stock at Qty Order
Digi-Key Electronics 88
Mouser Electronics 38
Products specifications
Attribute name Attribute value
RF Series SMPM
Gender Jack (Female)
Orientation (Body) Straight
Coupling Push-on
Termination Style Solder
Frequency 18 GHz
Impedance 50 ohms
RF Series 2 SMA
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Impedance (Ω) 50
Frequency GHz 65 GHz
Dielectric withstanding Voltage 325 VRMS
Mating Cycles - SB 500
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
