P/N: 3211-60181

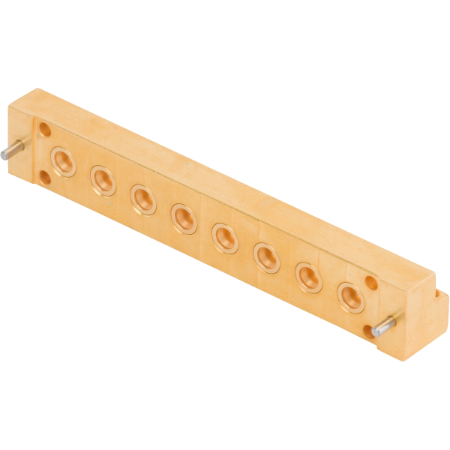

SMPM Male PCB Edge Launch Connector, 8 Port, FD

In stock at Qty Order
Mouser Electronics 15
Arrow Electronics Inc 15
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Detent Full Detent
Coupling Push-on
Mounting Type PCB Edge Launch
Gender Plug (Male)
Termination Style Solder
Number of Ports Multiple
Frequency 65 GHz
Impedance 50 ohms
Finish Gold
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mating Cycles - SB 500
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Detent Full Detent
Coupling Push-on
Mounting Type PCB Edge Launch
Gender Plug (Male)
Termination Style Solder
Number of Ports Multiple
Frequency 65 GHz
Impedance 50 ohms
Finish Gold
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mating Cycles - SB 500
Mechanical
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Withdrawal Force - SB 1.5 lbs
Withdrawal Force - FD 6.5 lbs
Temperature Rating -65°C to +165°C
Radial Misalignment 3° Max
Axial Misalignment .010” Max
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   9311-60015

SMPM Male PCB Edge Launch Connector, 4 Port, SB

Available Inventory: 0
9311-60015
SMPM Connectors 9311-60015
Datasheet
Part #   9311-60039

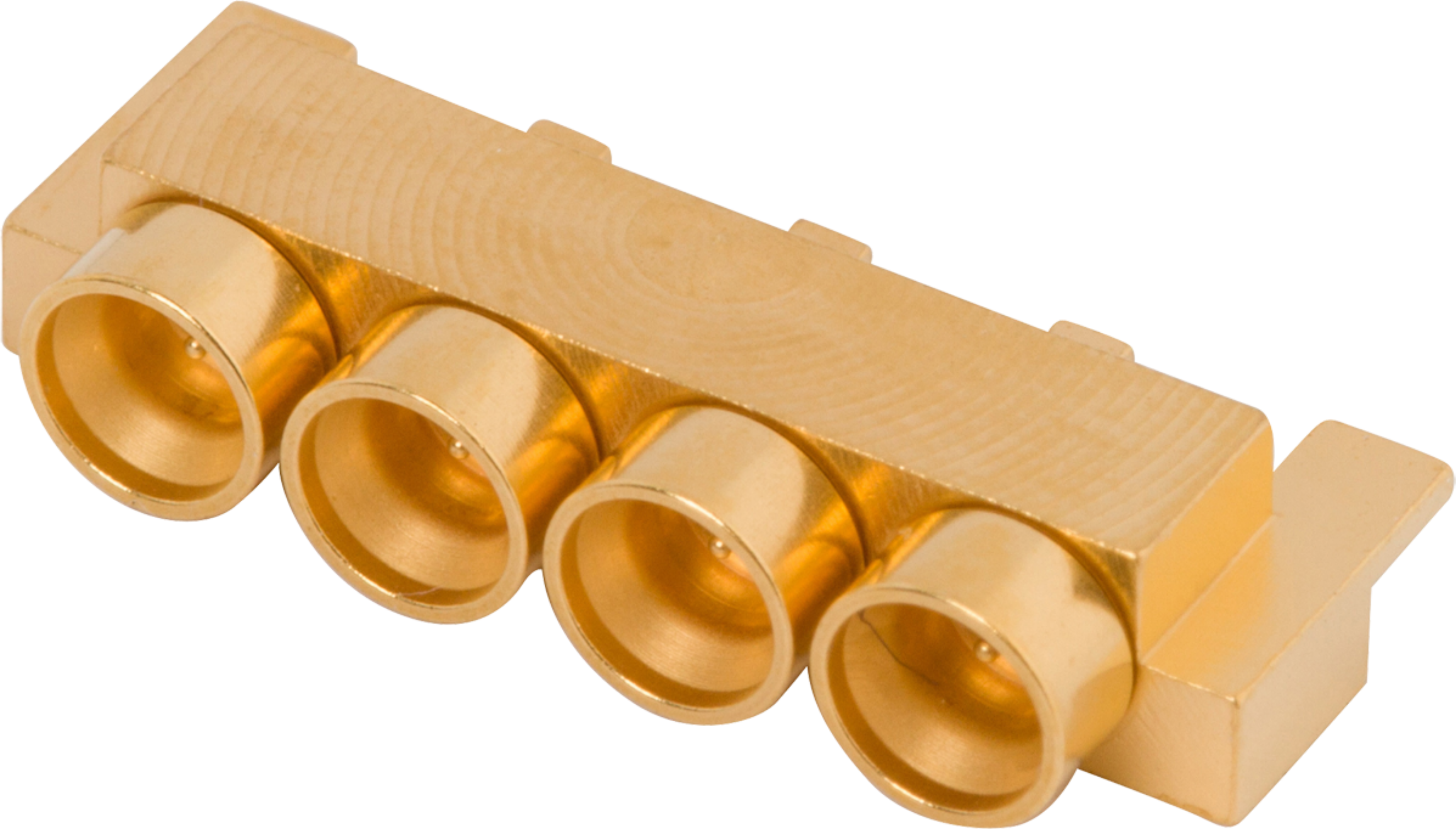

SMPM Male PCB Edge Launch Connector, 4 Port, FD

Available Inventory: 230
9311-60039
SMPM Connectors 9311-60039
Datasheet
Part #   3211-60180

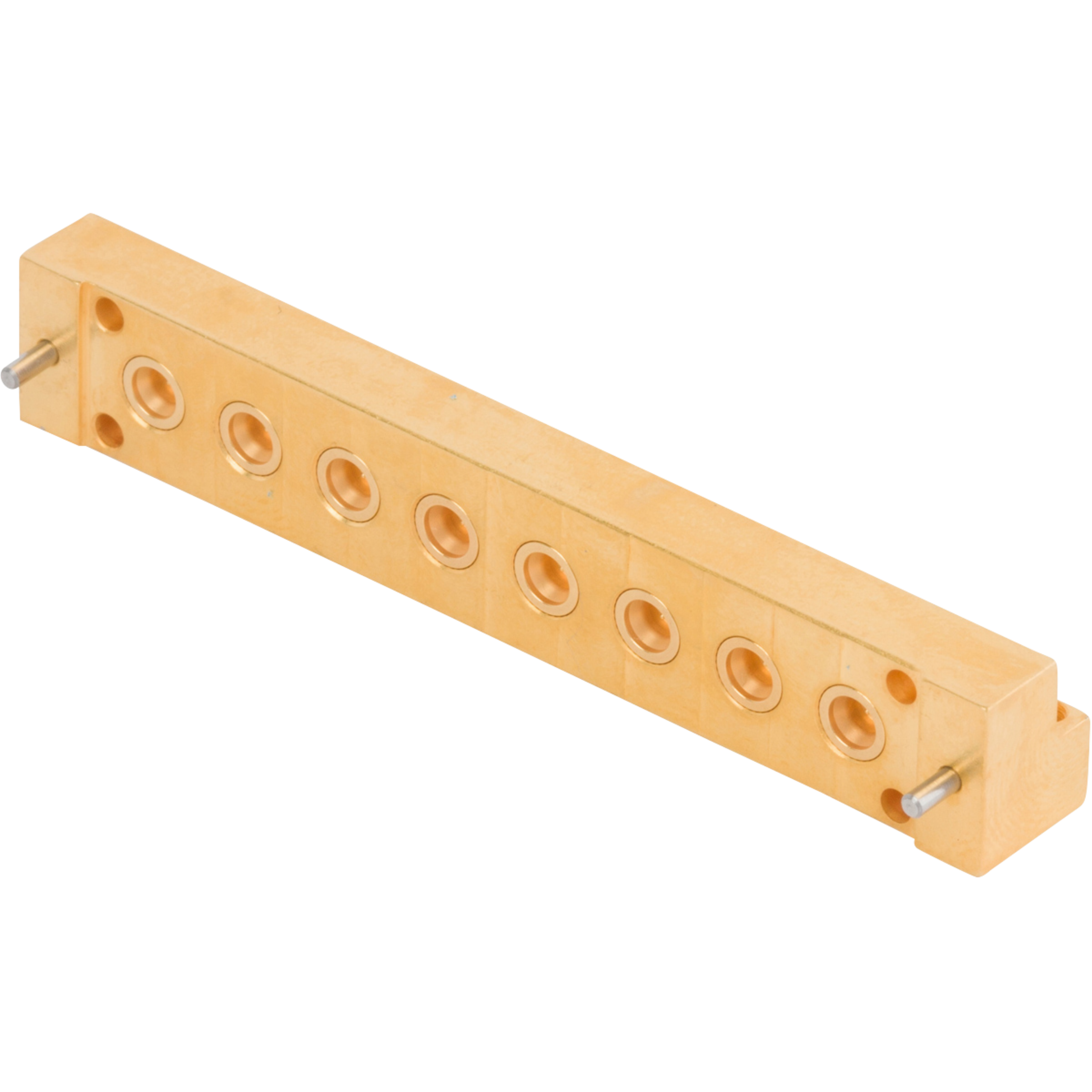

SMPM Male PCB Edge Launch Connector, 8 Port, CM
