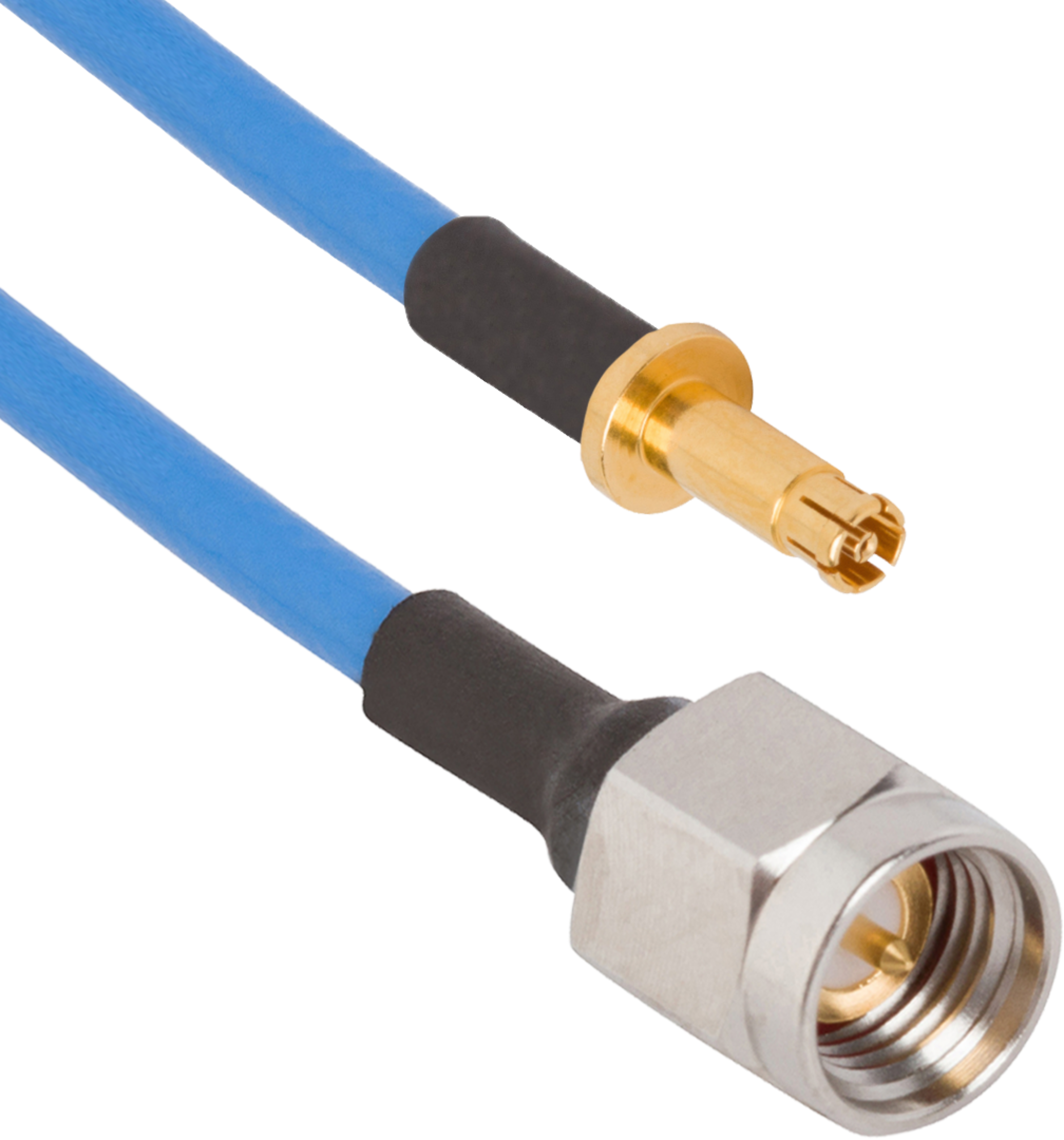

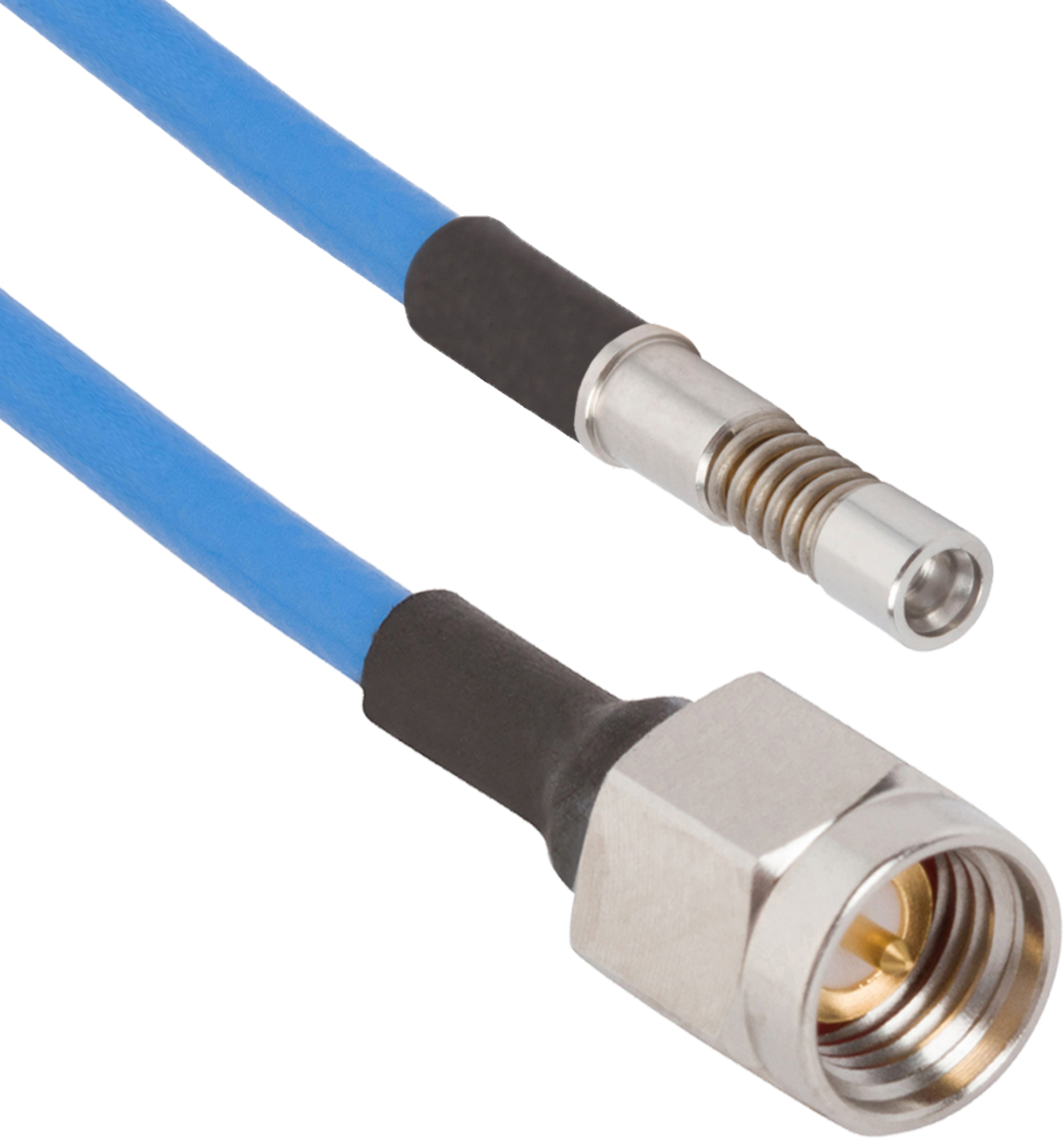

SMPM (Size 12) D38999 Pin Contact to SMA Male 6" Cable Assembly for .085 Cable"
P/N: 7093-0174

In stock at Qty Order
Digi-Key Electronics 115
Mouser Electronics 25
PEI-Genesis 25
Newark 24
Farnell 24
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Gender Pin
Coupling Push-on
Mounting Type D38999
Termination Style Solder
Style Size 12
Number of Ports Single
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
RF Series 2 SMA
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Radial Misalignment 3° Max
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


CE / UKCA Compliant

This products meets the requirements for CE and UKCA.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 2/6/2023 1:04:33 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPM
Orientation (Body) Straight
Gender Pin
Coupling Push-on
Mounting Type D38999
Termination Style Solder
Style Size 12
Number of Ports Single
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
RF Series 2 SMA
Cable Type 0.085 Flexible Coax
Cable Length 6"
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 325 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - SB 2.5 lbs
Insertion Force - FD 4.5 lbs
Radial Misalignment 3° Max
Withdrawal Force - FD 6.5 lbs
Axial Misalignment .010” Max
Withdrawal Force - SB 1.5 lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
