Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMPS |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Coupling | Push-on |
| Finish | Passivated |
| RF Series 2 | SMPS |
| Orientation 2 (Body) | Straight |
| Gender 2 | Plug (Male) |
| Detent | Full Detent |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 250 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - FD | 100 |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 1.2 lbs |
| Insertion Force - FD | 2.5 lbs |
| Withdrawal Force - SB | 1.0 lbs |
| Withdrawal Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| RF Series | SMPS |
| Orientation (Body) | Straight |
| Gender | Jack (Female) |
| Coupling | Push-on |
| Finish | Passivated |
| RF Series 2 | SMPS |
| Orientation 2 (Body) | Straight |
| Gender 2 | Plug (Male) |
| Detent | Full Detent |
| Electrical | |
| Frequency | 65 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 250 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - FD | 100 |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 1.2 lbs |
| Insertion Force - FD | 2.5 lbs |
| Withdrawal Force - SB | 1.0 lbs |
| Withdrawal Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
1138-4002

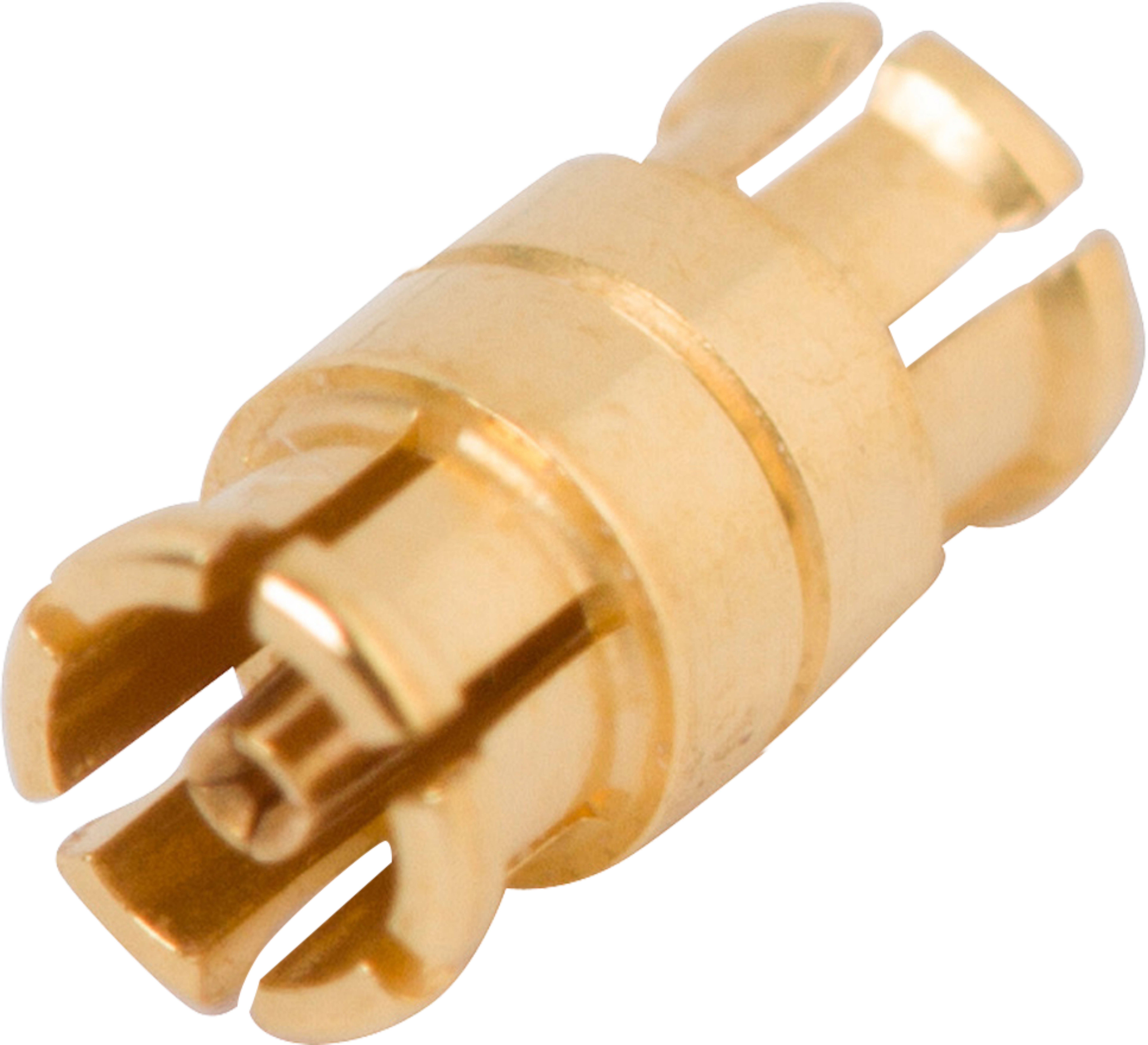

SMPS Adapters 1138-4002
1138-4003

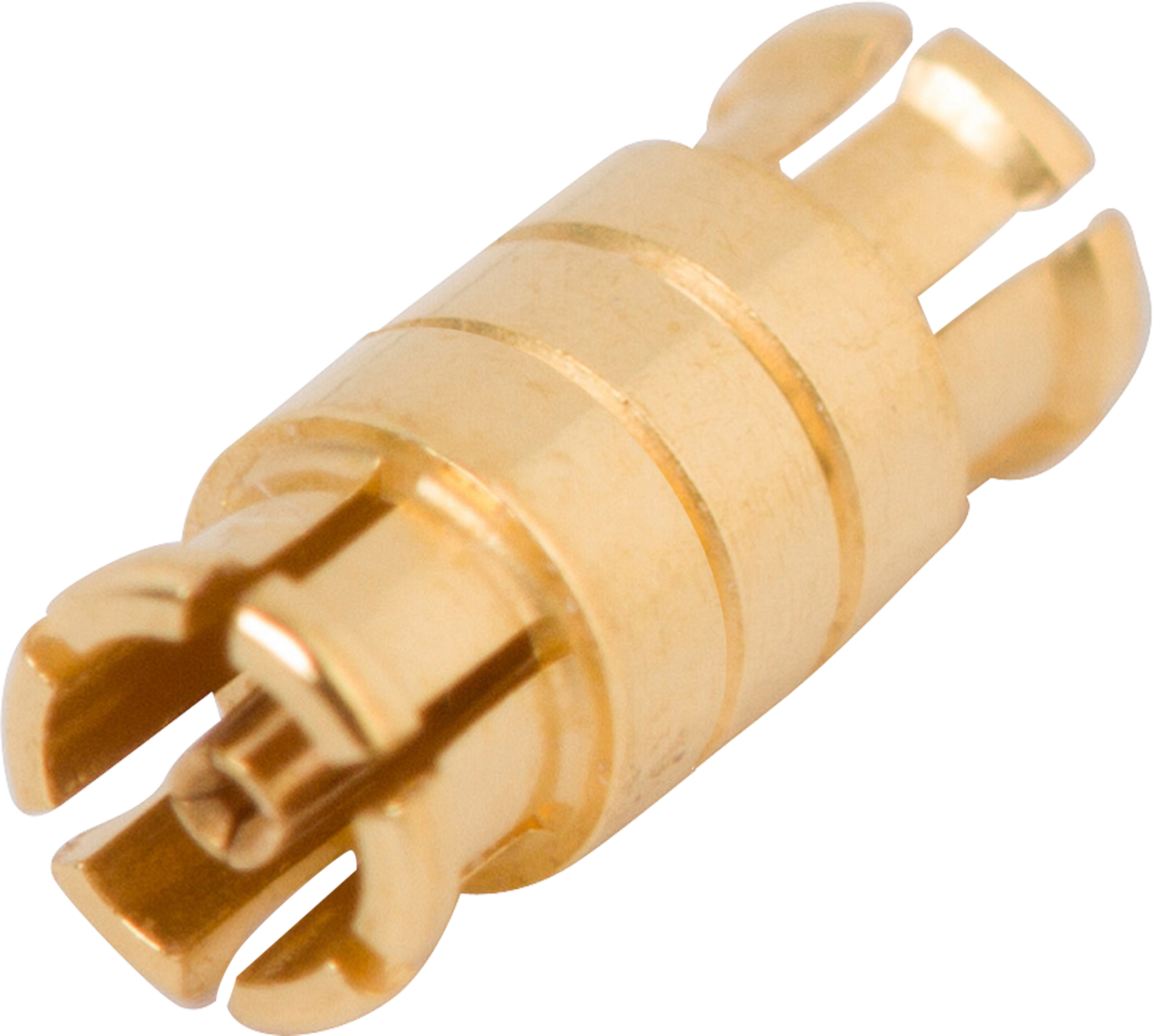

SMPS Adapters 1138-4003
1138-4004

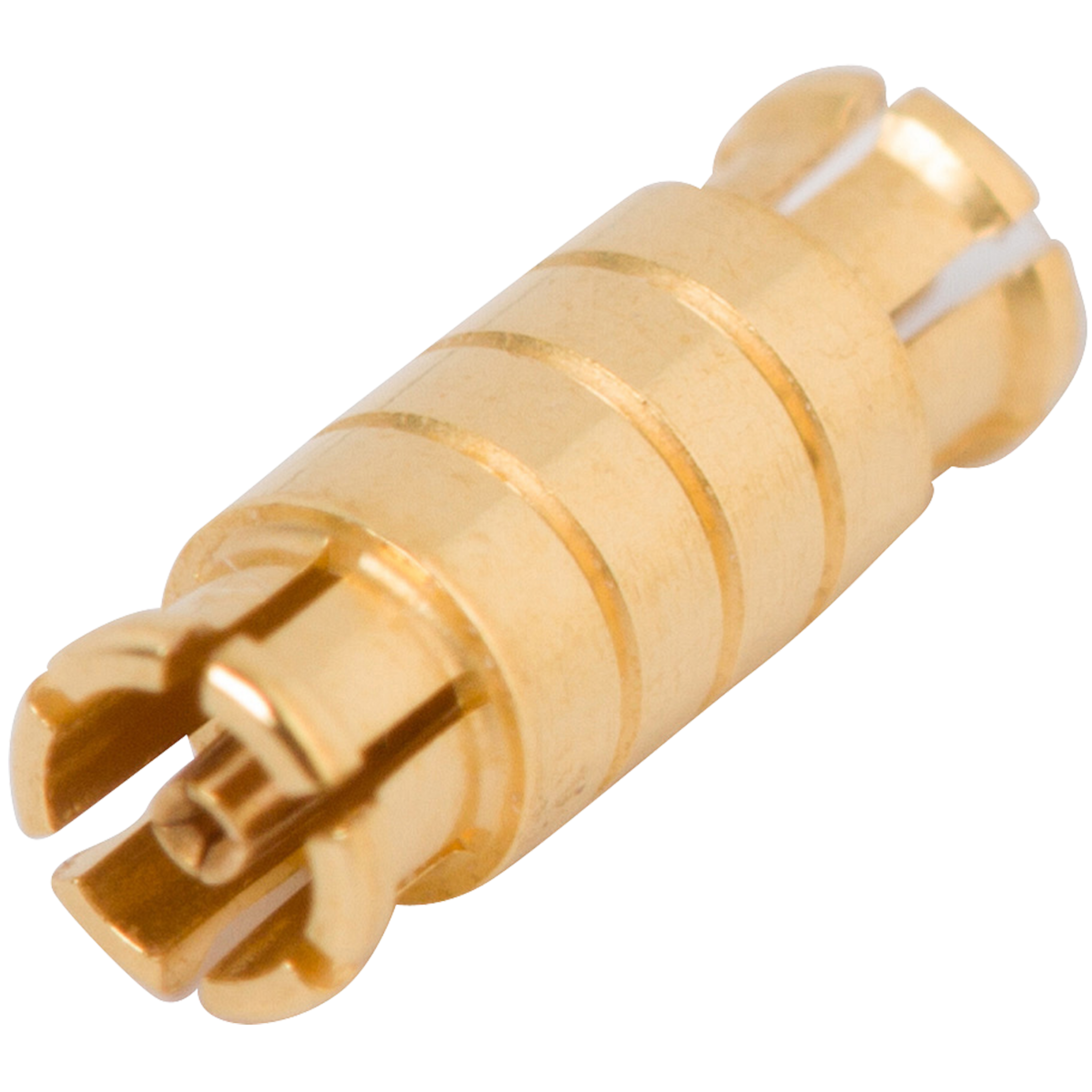

SMPS Adapters 1138-4004
