SMPS Female to SMPS Male VITA 67.3 Adapter
P/N: 1138-4048

In stock at Qty Order
Digi-Key Electronics 15
Mouser Electronics 10
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series SMPS
Gender Jack (Female)
Coupling Push-on
Finish Gold
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Orientation (Body) Straight
RF Series 2 SMPS
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 6/28/2023 1:04:12 AM

Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Access all of our VITA resources for this part number in one, easily-downloadable package.
VITA Toolkit Download Now
  • Drawings
  • Models
  • Rapid Response App Note
  • VITA 67.3 Catalog
  • VITA 67.3 SMPS Toolbox Resource Guide
Products specifications
Attribute name Attribute value
Family VITA 67
RF Series SMPS
Gender Jack (Female)
Coupling Push-on
Finish Gold
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Orientation (Body) Straight
RF Series 2 SMPS
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Insertion Force - SB 1.2 lbs
Insertion Force - FD 2.5 lbs
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   3821-40023

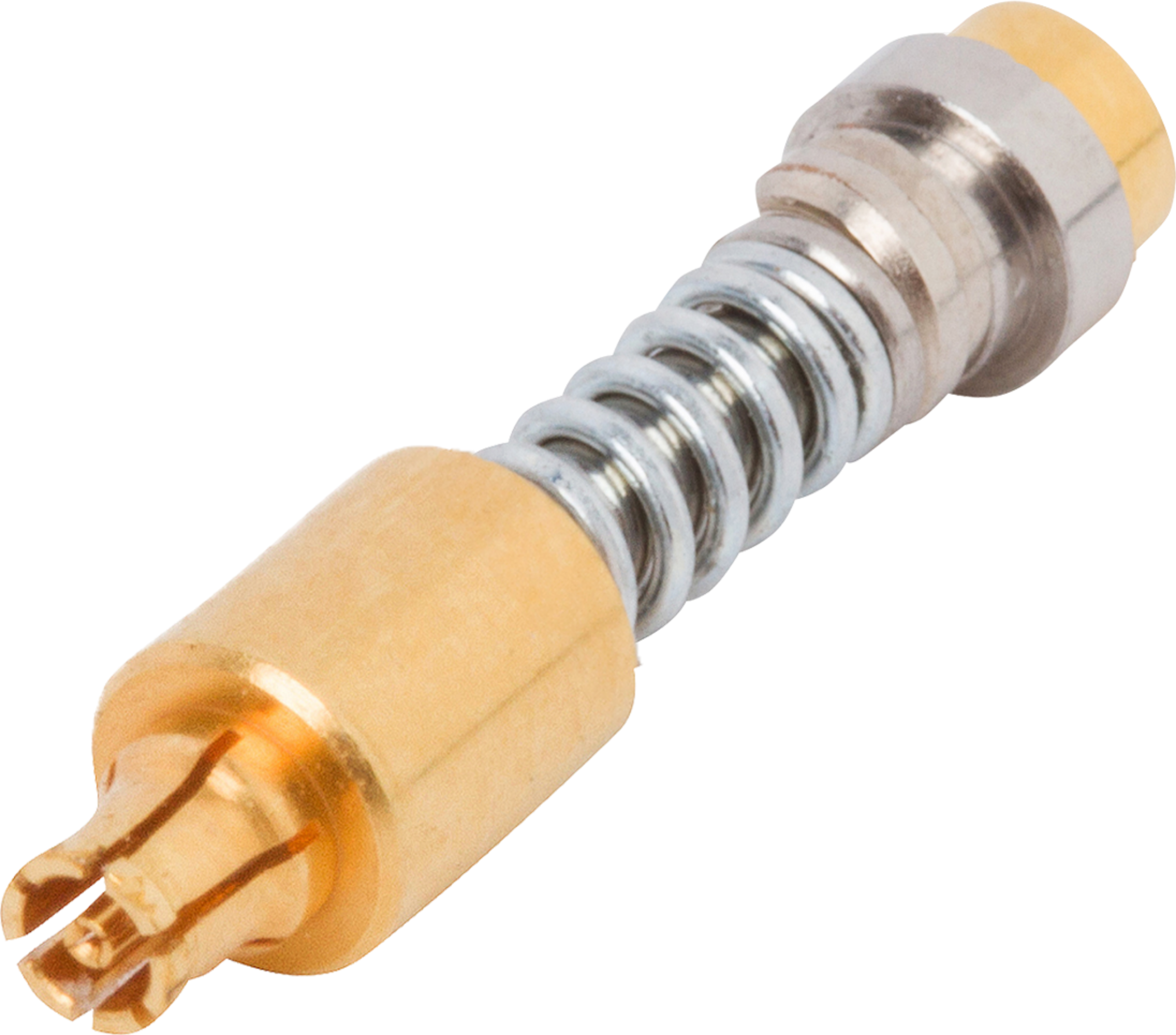

SMPS Female VITA 67.3 Backplane Contact for .047 Cable

Available Inventory: 48
3821-40023
VITA Connectors 3821-40023
Datasheet
Part #   3821-40024

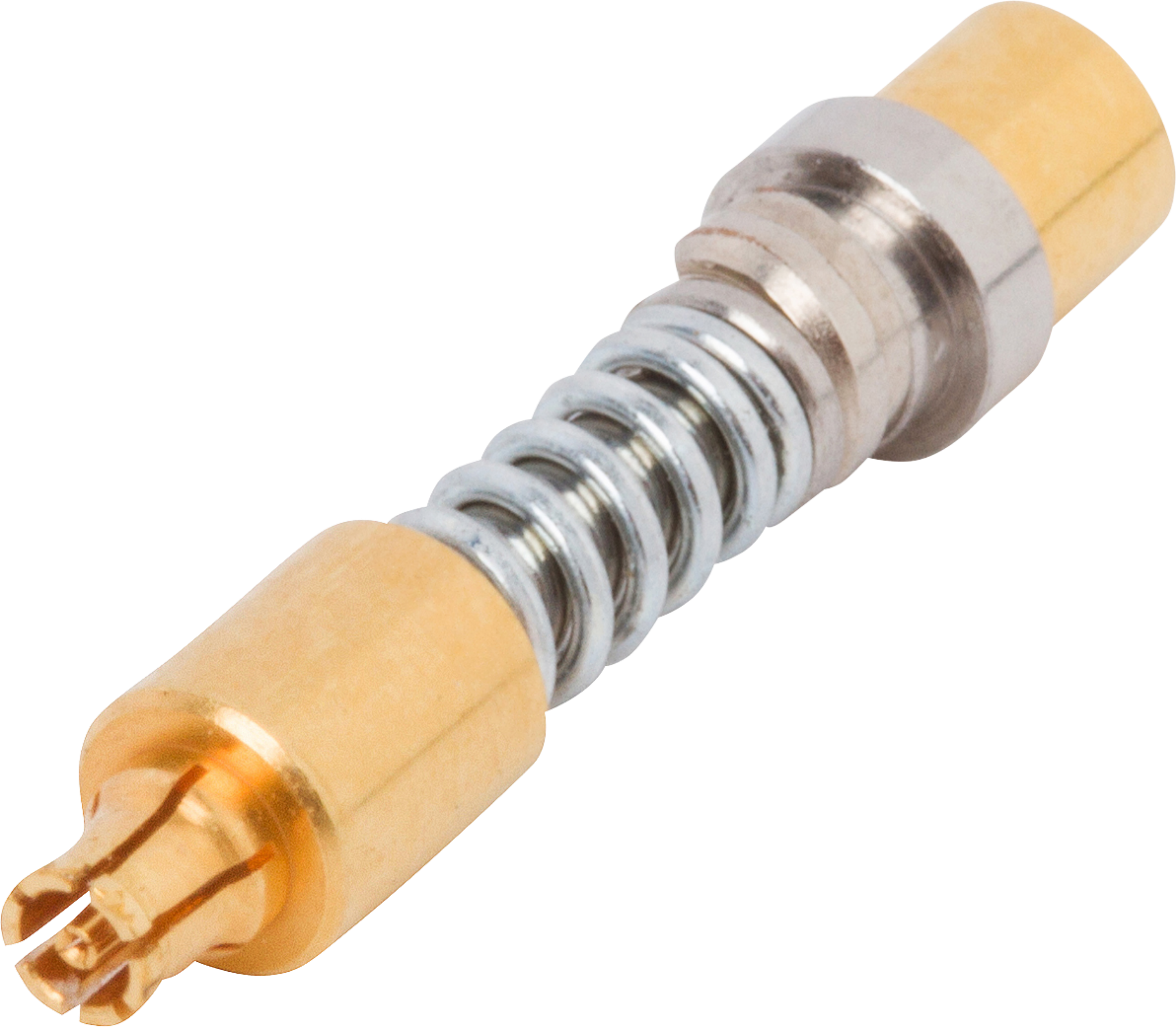

SMPS Female VITA 67.3 Backplane Contact for .085 Cable

Available Inventory: 30
3821-40024
VITA Connectors 3821-40024
Datasheet
Part #   SF3811-60059

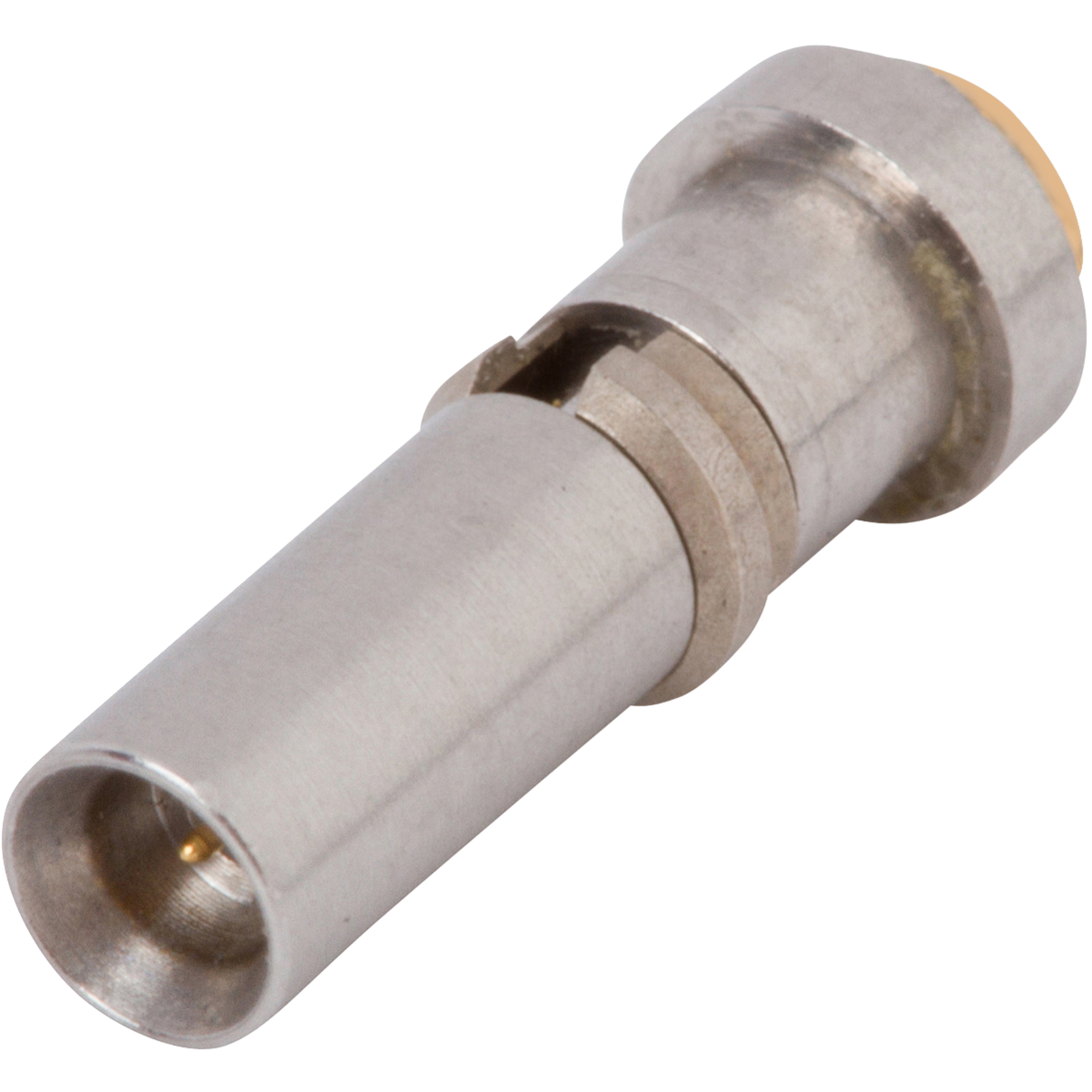

SMPS VITA 67.3 Male Plug-in Contact for .086 Cable
