SMPS Male PCB Edge Launch Connector, 4 Port, FD
P/N: 3811-60051

Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type PCB Edge Launch
Coupling Push-on
Termination Style Solder
Detent Full Detent
Finish Gold
Number of Ports Multiple
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 2.5 lbs
Insertion Force - SB 1.2 lbs
Withdrawal Force - FD 4.5 lbs
Radial Misalignment 3° Max
Withdrawal Force - SB 1.0 lbs
Axial Misalignment .010” Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B


EU RoHS Directive 2011/65/EU Yes, w/ Exemption 6C

These products comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). The RoHS2 Directive requires that certain electrical and electronic equipment products do not contain mercury, cadmium, hexavalent chromium, PBB, PBDE, lead, DEHP, BBP, DBP and DIBP above defined thresholds. Products indicated as compliant with exemption contain one or more of these substances above the prohibition thresholds, but are compliant by claiming one or more valid exemptions.

EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact [email protected] for any Compliance or Environmental related questions.

Last Update: 3/23/2023 1:14:12 AM

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Mounting Type PCB Edge Launch
Coupling Push-on
Termination Style Solder
Detent Full Detent
Finish Gold
Number of Ports Multiple
Electrical
Impedance 50 ohms
Frequency 65 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Mating Cycles - FD 100
Insertion Force - FD 2.5 lbs
Insertion Force - SB 1.2 lbs
Withdrawal Force - FD 4.5 lbs
Radial Misalignment 3° Max
Withdrawal Force - SB 1.0 lbs
Axial Misalignment .010” Max
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Customers Also Viewed
Part #   3811-60049

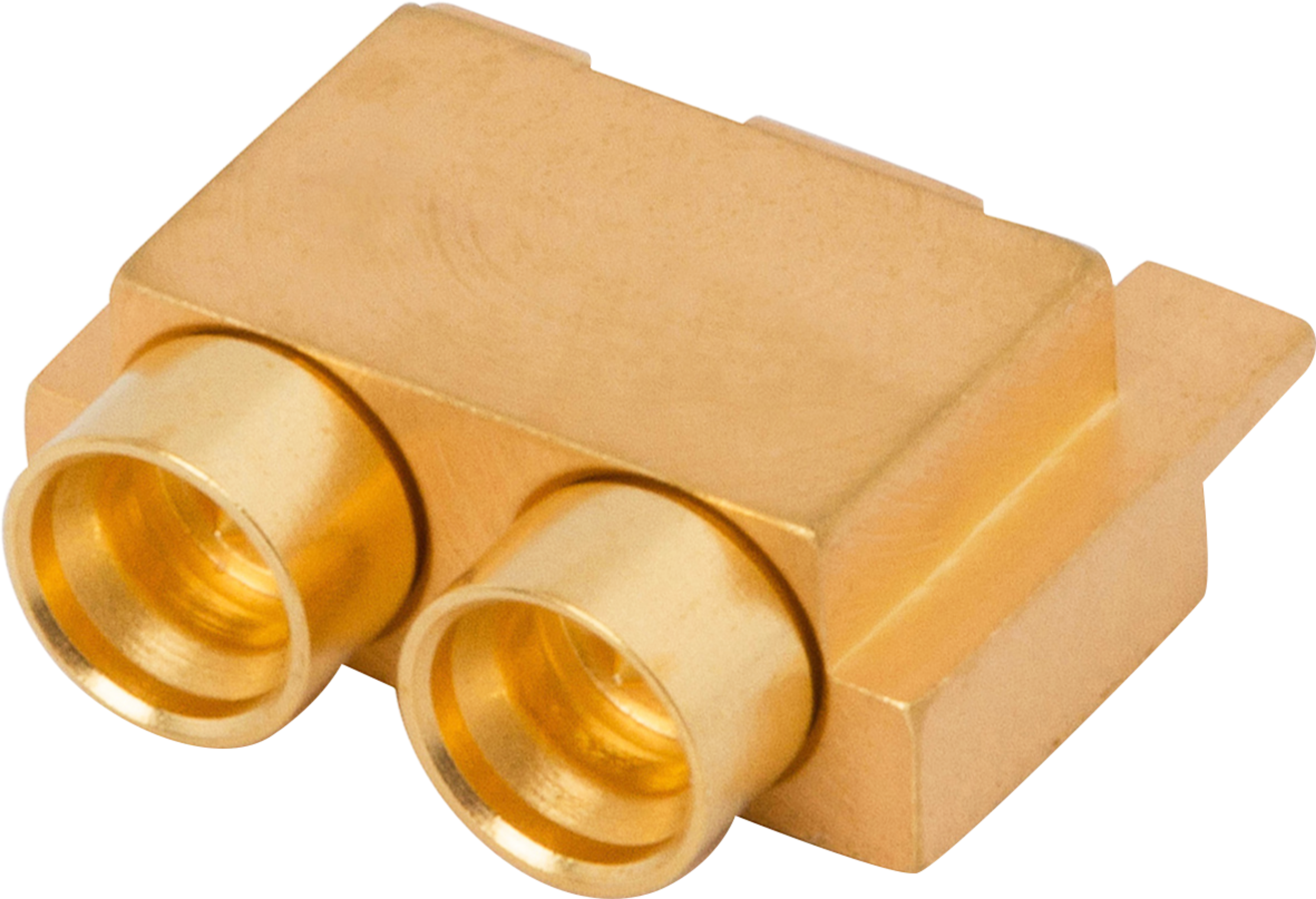

SMPS Male PCB Edge Launch Connector, 2 Port, FD

Available Inventory: 66
3811-60049
SMPS Connectors 3811-60049
Datasheet
Part #   3811-60052

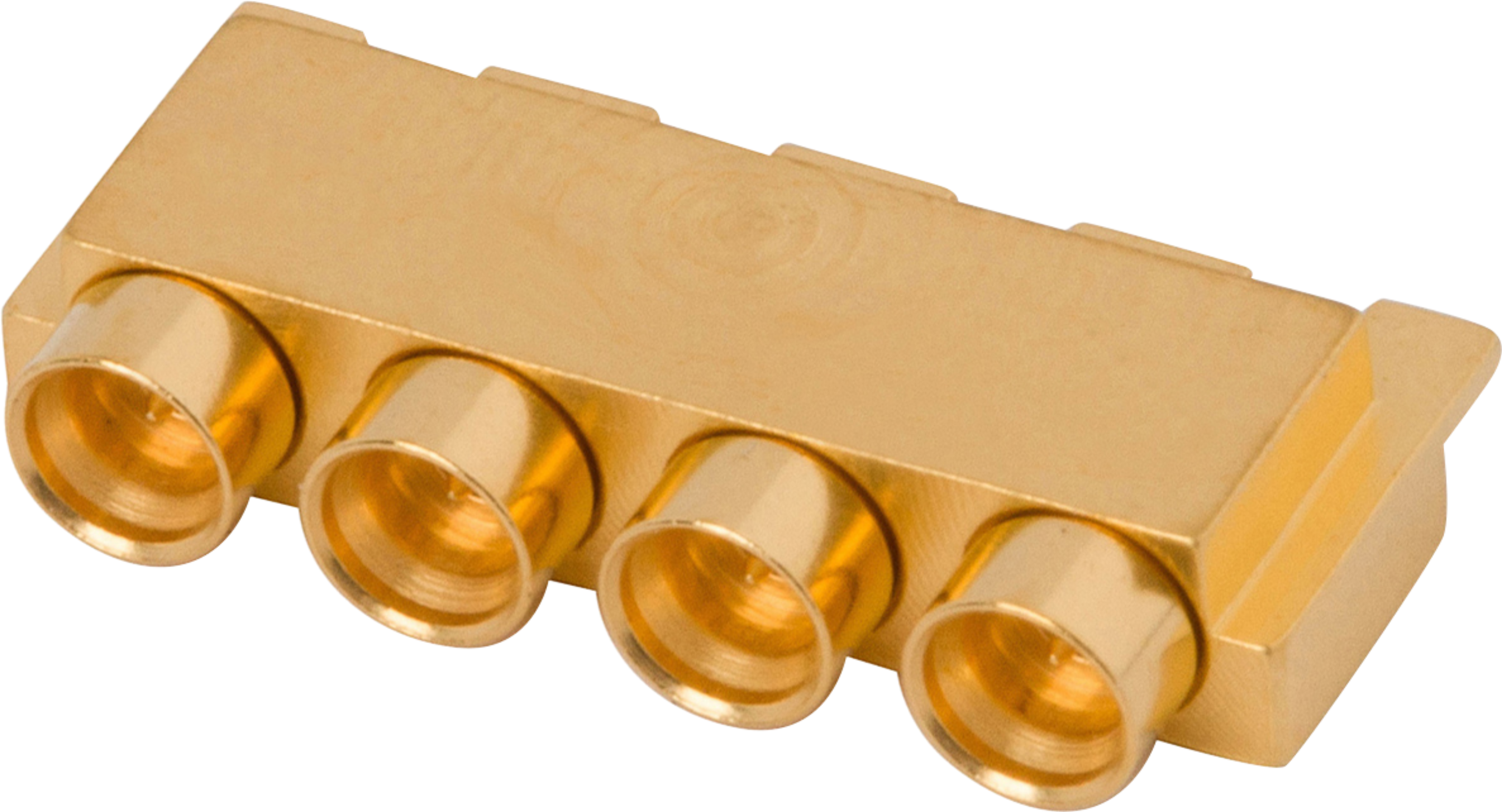

SMPS Male PCB Edge Launch Connector, 4 Port, SB
