| Attribute name | Attribute value |
|---|---|
| Family | QuarterBack |
| RF Series | SMPS |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Keyed Subtype | 180-180 |
| Coupling | Keyed |
| Mounting Type | PCB Vertical Launch |
| Termination Style | Solder |
| Number of Ports | Single |
| Finish | Gold |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 500 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - LD | 500 |
| Mating Cycles - SB | 1000 |
| Mating Cycles - FD | 100 |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Axial Misalignment | .010” Max |
| Insertion Force - SB | 3.0 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Products specifications
| Attribute name | Attribute value |
|---|---|
| Family | QuarterBack |
| RF Series | SMPS |
| Gender | Plug (Male) |
| Orientation (Body) | Straight |
| Keyed Subtype | 180-180 |
| Coupling | Keyed |
| Mounting Type | PCB Vertical Launch |
| Termination Style | Solder |
| Number of Ports | Single |
| Finish | Gold |
| Electrical | |
| Frequency | 40 GHz |
| Impedance | 50 ohms |
| Dielectric withstanding Voltage | 500 VRMS |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Mechanical | |
| Mating Cycles - LD | 500 |
| Mating Cycles - SB | 1000 |
| Mating Cycles - FD | 100 |
| Insertion Force - LD | 5.0 lbs |
| Insertion Force - FD | 7.0 lbs |
| Withdrawal Force - SB | 0.5 lbs |
| Withdrawal Force - FD | 9.0 lbs |
| Axial Misalignment | .010” Max |
| Insertion Force - SB | 3.0 lbs |
| Withdrawal Force - LD | 7.0 lbs |
| Radial Misalignment | 3° Max |
| Environmental | |
| Temperature Rating | -65°C to +165°C |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Customers Also Viewed
1211-40003
SMP Connectors 1211-40003
1211-40004

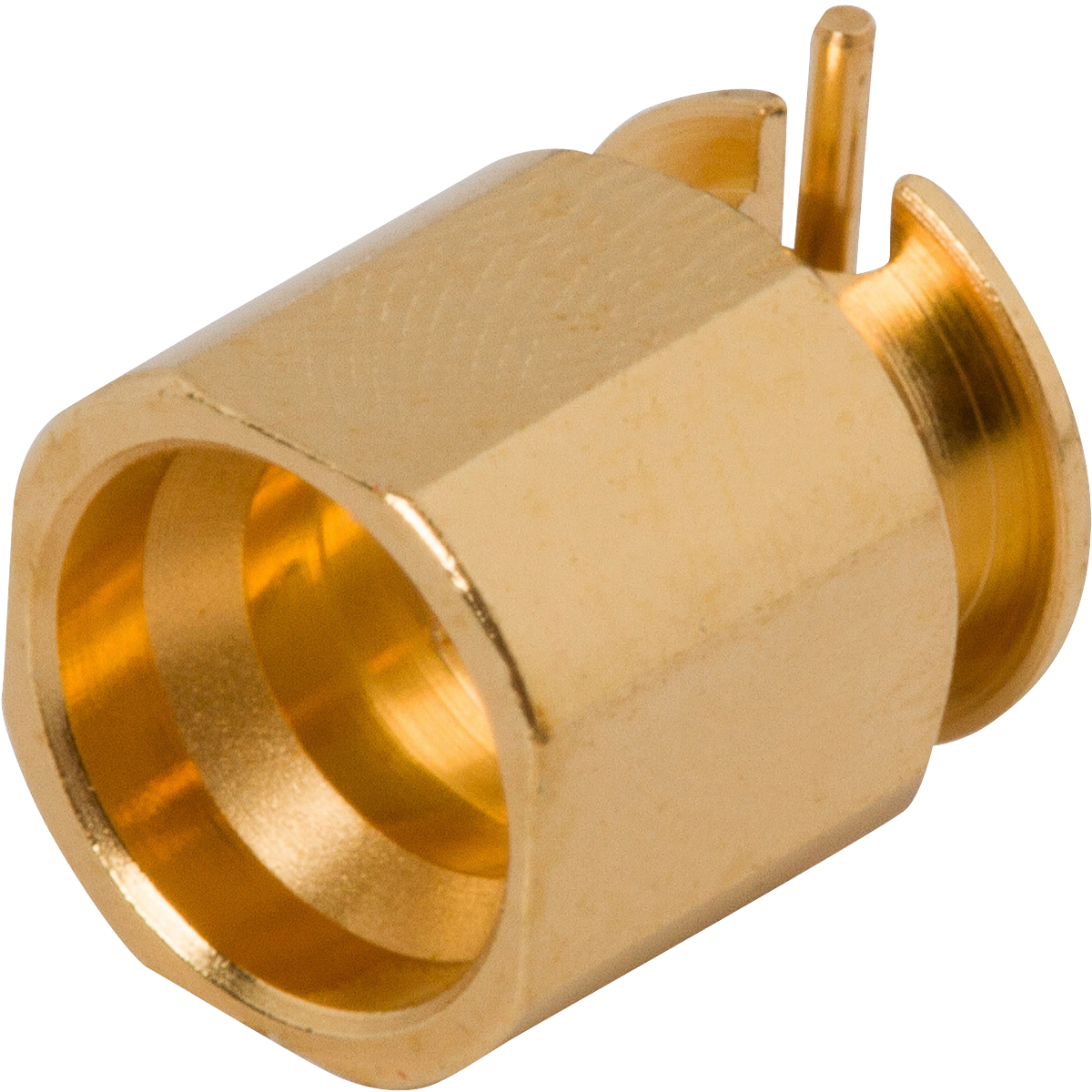

SMP Connectors 1211-40004
3211-60112

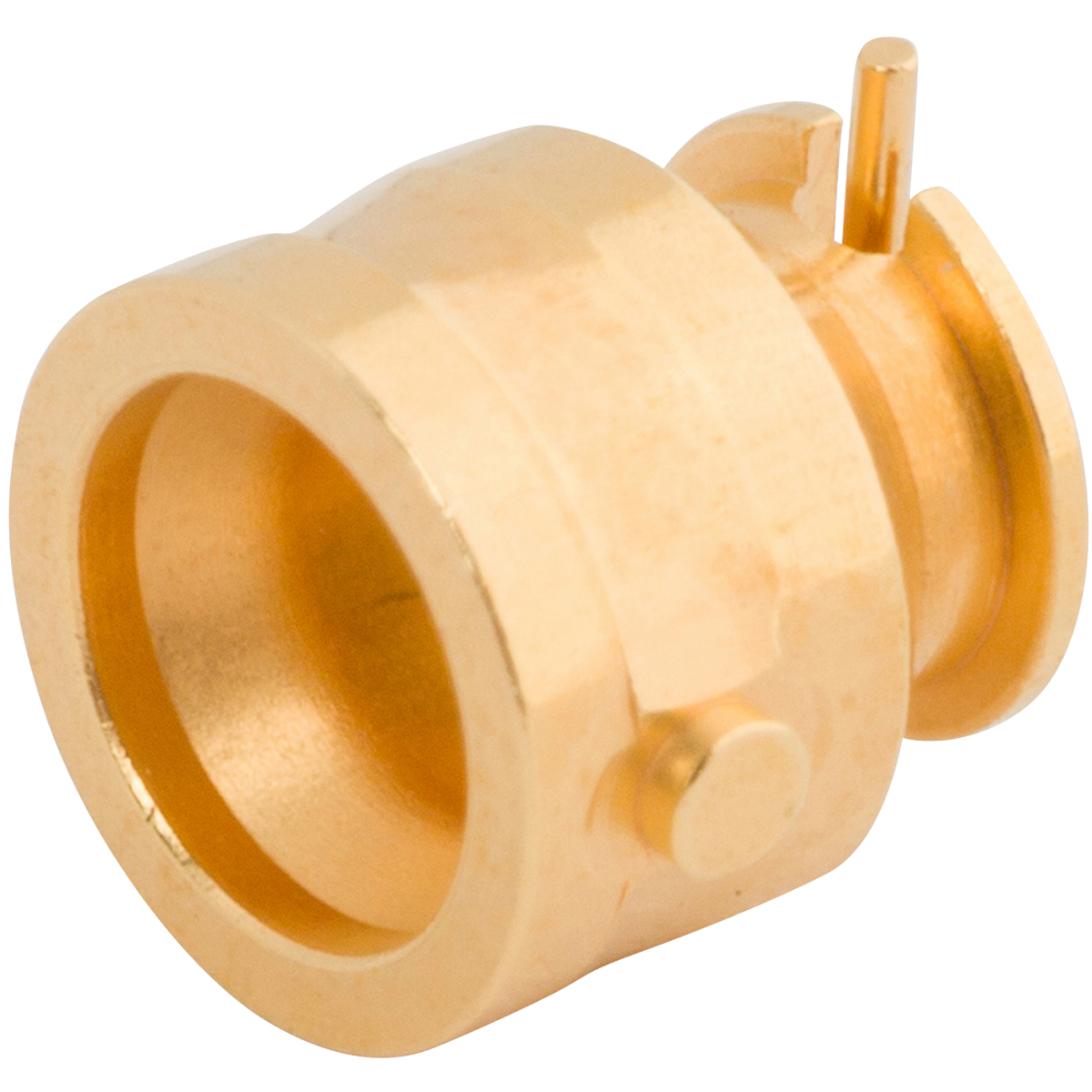

SMPM Connectors 3211-60112
