SMPS Male PCB Surface Mount, 4 Port (Glass Seal), FD
P/N: 9311-20027

There currently isn't any inventory available in distribution. Please contact us to obtain this product.
Products specifications
Attribute name Attribute value
Family Mini-D RF
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Full Detent
Mounting Type PCB Vertical Launch
Number of Ports Multiple
Finish Gold
Termination Style Solder
Style Glass Seal
Electrical
Impedance 50 ohms
Frequency 50 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Mating Cycles - FD 100
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Spinning Wheel; Your Submission is Loading

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Mini-D RF
RF Series SMPS
Gender Plug (Male)
Orientation (Body) Straight
Coupling Push-on
Detent Full Detent
Mounting Type PCB Vertical Launch
Number of Ports Multiple
Finish Gold
Termination Style Solder
Style Glass Seal
Electrical
Impedance 50 ohms
Frequency 50 GHz
Shielding Effectiveness ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz
Dielectric withstanding Voltage 250 VRMS
Mechanical
Mating Cycles - SB 500
Insertion Force - SB 1.2 lbs
Mating Cycles - FD 100
Insertion Force - FD 2.5 lbs
Withdrawal Force - SB 1.0 lbs
Withdrawal Force - FD 4.5 lbs
Axial Misalignment .010” Max
Radial Misalignment 3° Max
Environmental
Temperature Rating -65°C to +165°C
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Product tags
Customers Also Viewed
Part #   9311-20013

SMP Male PCB Surface Mount, 2 Port (Glass Seal), FD

Available Inventory: 0
9311-20013
SMP Connectors 9311-20013
Datasheet
Part #   9311-20018

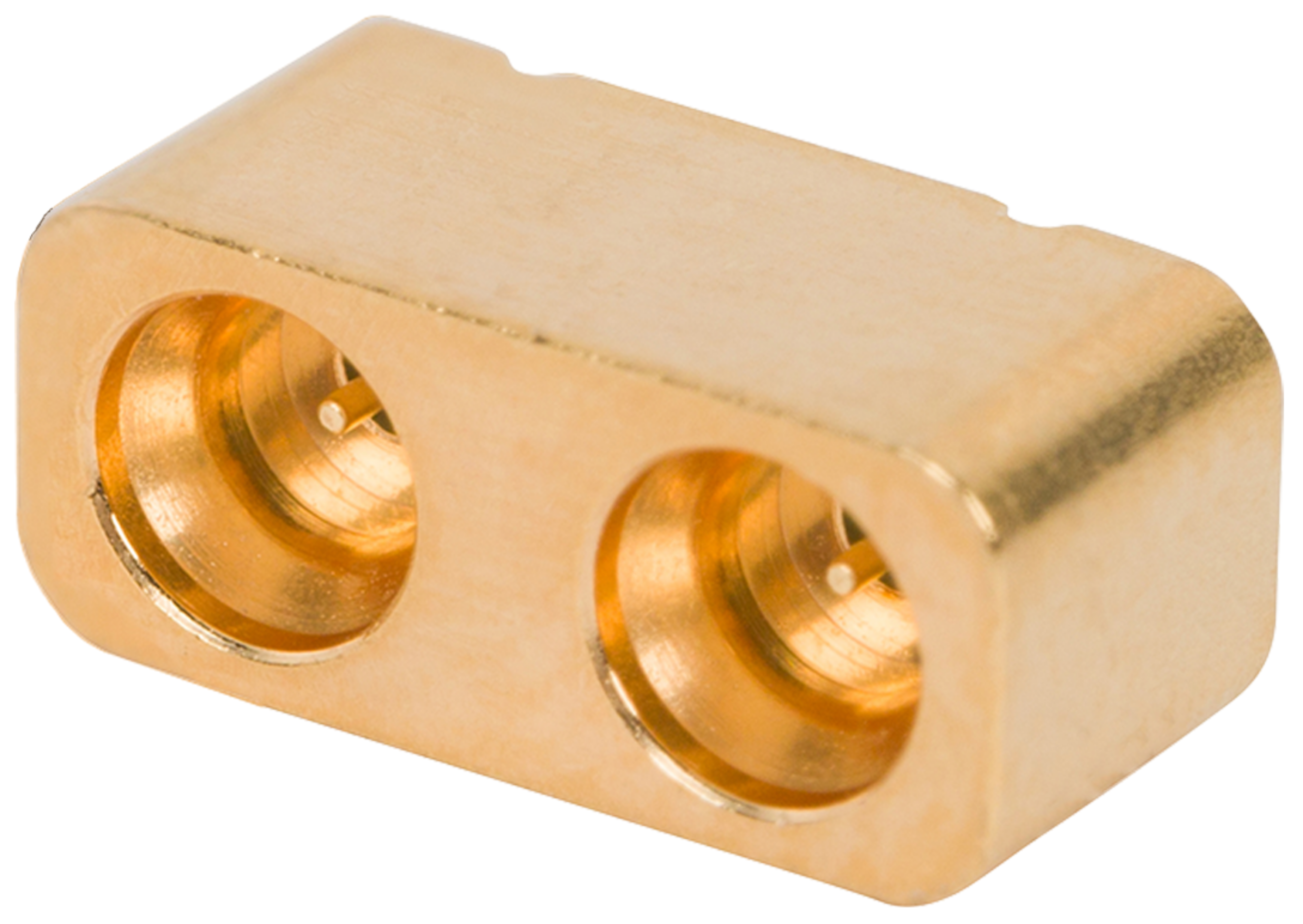

SMP Male PCB Surface Mount, 2 Port (Glass Seal), SB

Available Inventory: 0
9311-20018
SMP Connectors 9311-20018
Datasheet
Part #   9311-20021

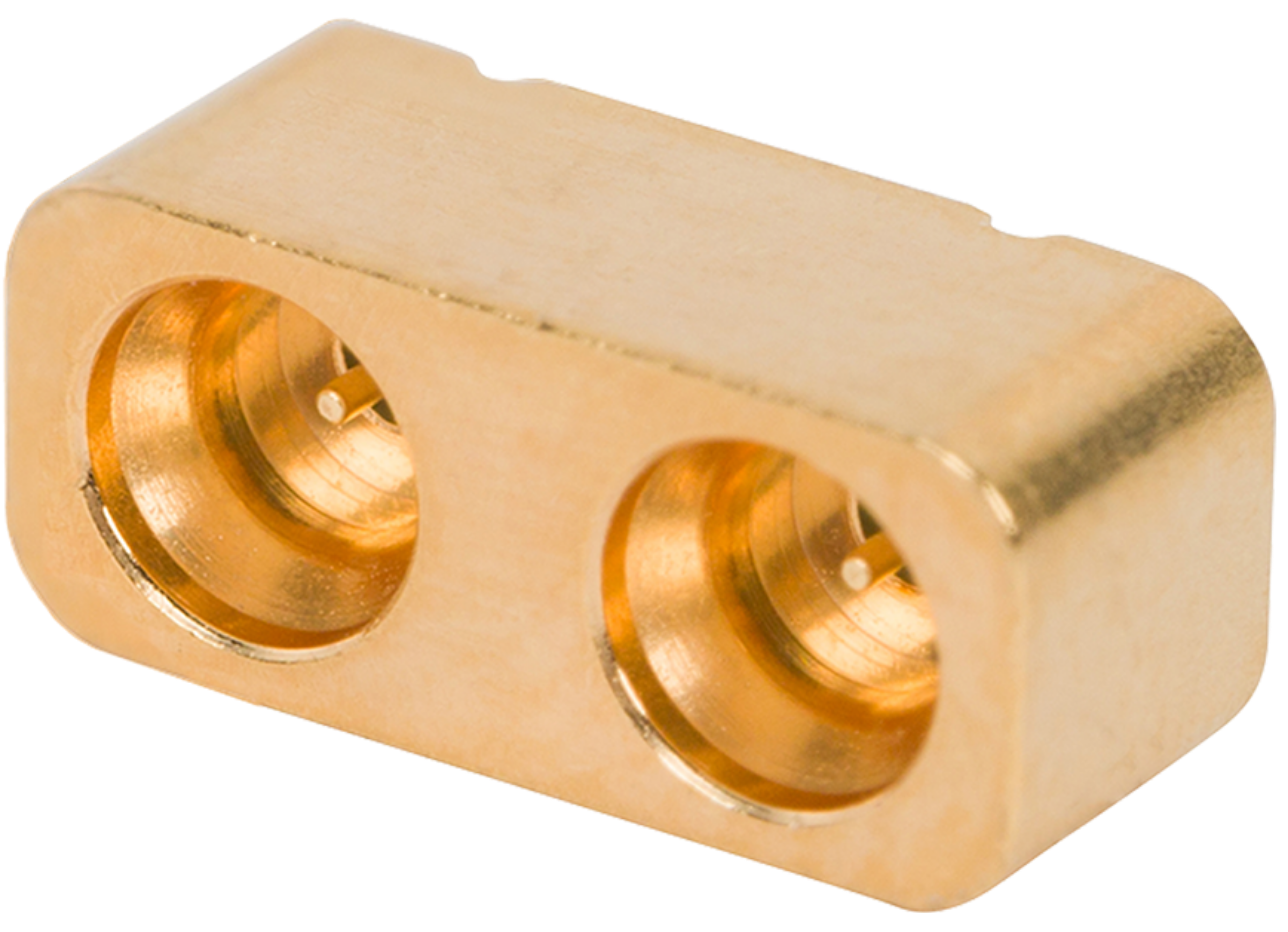

SMPM Male PCB Surface Mount, 2 Port (Glass Seal), FD
