| Attribute name | Attribute value |
|---|---|
| RF Series | SMPS |
| Gender | Socket |
| Orientation (Body) | Straight |
| Mounting Type | D38999 Series I, III and IV |
| Coupling | Push-on |
| Style | Size 16 |
| RF Series 2 | MCX |
| Gender 2 | Plug (Male) |
| Orientation 2 (Body) | Straight |
| Cable Type | RG-179 |
| Cable Length | 12" |
| Electrical | |
| Frequency | 3 GHz |
| Impedance | 75 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 1.2 lbs |
| Mating Cycles - FD | 100 |
| Withdrawal Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Insertion Force - FD | 2.5 lbs |
| Withdrawal Force - SB | 1.0 lbs |
| Environmental | |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
| EU RoHS Directive 2011/65/EU | Not Compliant
These products DO NOT comply with the substance restrictions of the Restriction on Hazardous Substances Directive 2011/65/EU (RoHS2). Products indicated as ‘Not Compliant’ contain one or more restricted substances above the prohibition thresholds. Consequently, these products should NOT be used in any application requiring RoHS2 compliance. |
| EU REACH Regulation (EC) No. 1907/2006 | SVHC > Threshold
These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed. REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 370000 Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. |
|
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 6/28/2023 1:29:12 AM
|
|
| Attribute name | Attribute value |
|---|---|
| RF Series | SMPS |
| Gender | Socket |
| Orientation (Body) | Straight |
| Mounting Type | D38999 Series I, III and IV |
| Coupling | Push-on |
| Style | Size 16 |
| RF Series 2 | MCX |
| Gender 2 | Plug (Male) |
| Orientation 2 (Body) | Straight |
| Cable Type | RG-179 |
| Cable Length | 12" |
| Electrical | |
| Frequency | 3 GHz |
| Impedance | 75 ohms |
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz, ≥ -65 dB 3 - 26.5 GHz |
| Dielectric withstanding Voltage | 250 VRMS |
| Mechanical | |
| Mating Cycles - SB | 500 |
| Insertion Force - SB | 1.2 lbs |
| Mating Cycles - FD | 100 |
| Withdrawal Force - FD | 4.5 lbs |
| Axial Misalignment | .010” Max |
| Radial Misalignment | 3° Max |
| Insertion Force - FD | 2.5 lbs |
| Withdrawal Force - SB | 1.0 lbs |
| Environmental | |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
| Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
| Temperature Rating | -65°C to +165°C |
| Shock | MIL-STD-202, Method 213, Condition I |
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Part # 7093-0276

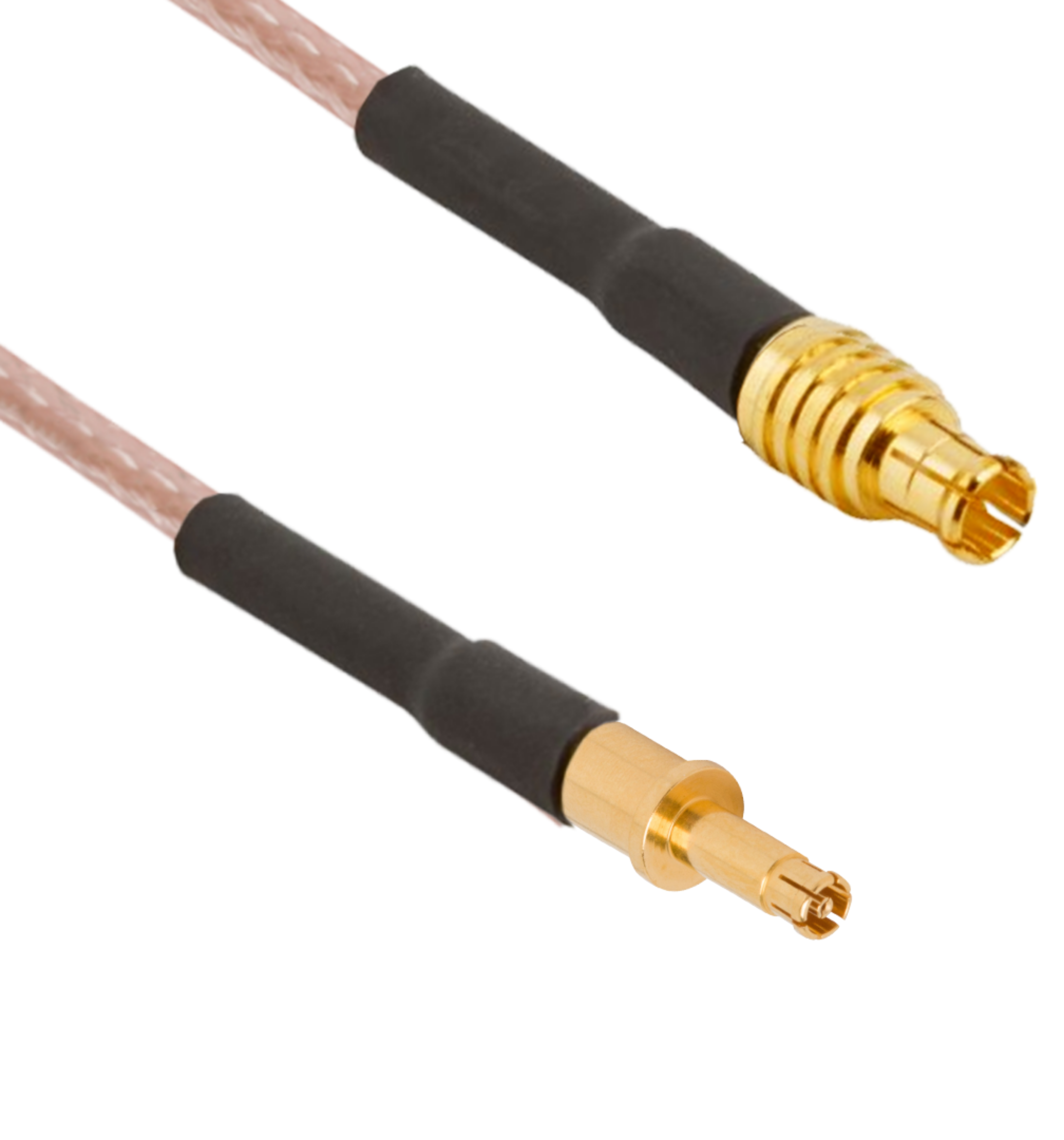

SMPS (Size 16) D38999 Pin Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
Available Inventory: 71
Part # 7093-0277

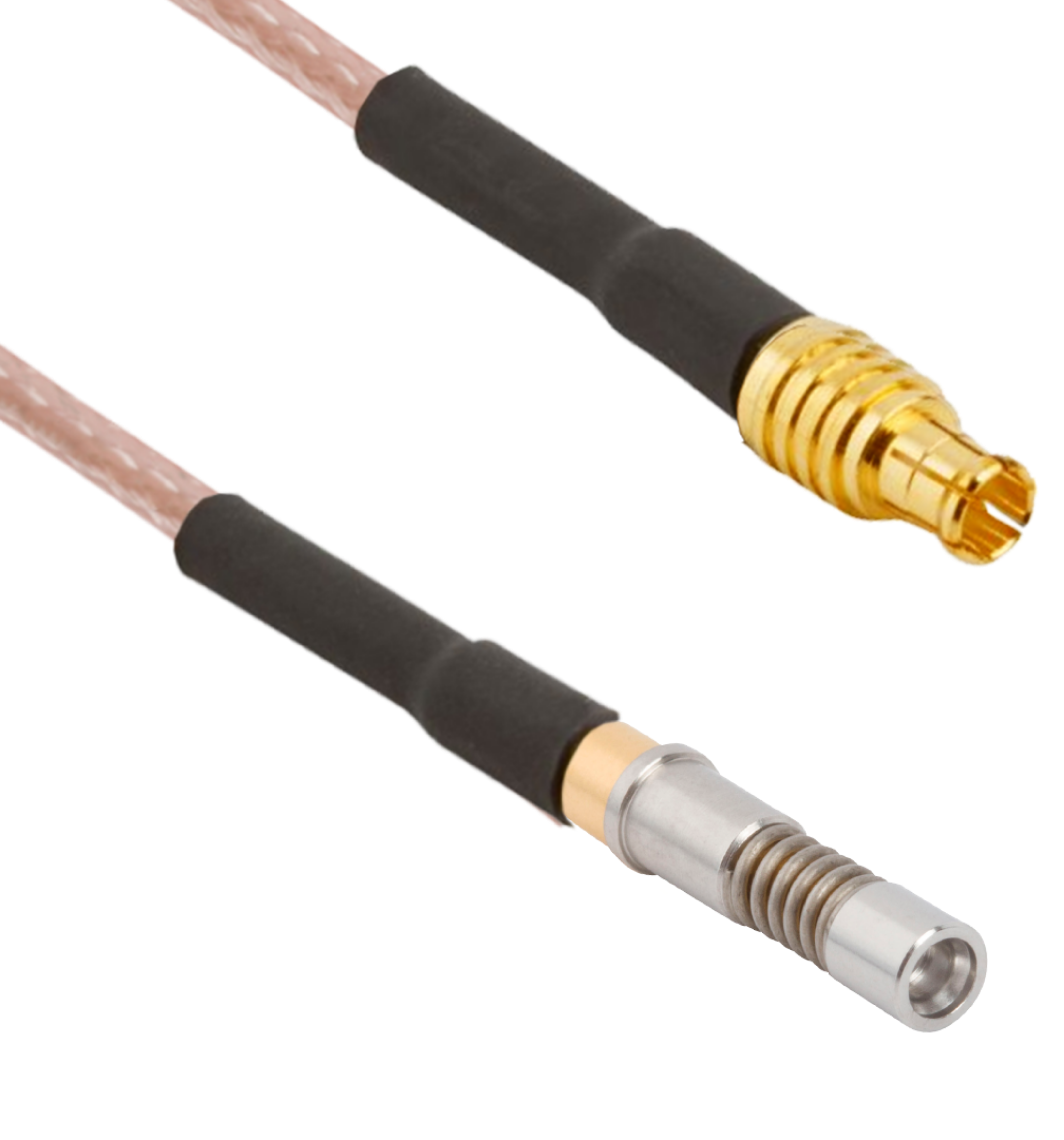

SMPM (Size 12) D38999 Socket Contact to MCX Male 12" 75 Ohm Cable Assembly for RG-179 Cable
Available Inventory: 71
