P/N: 4021-00065

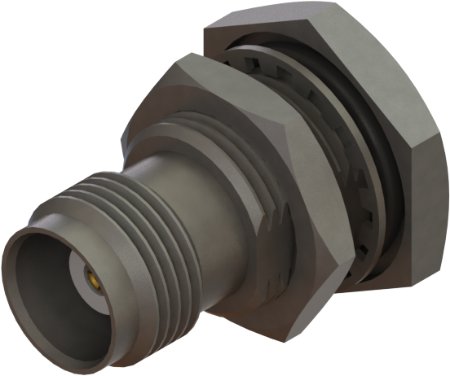

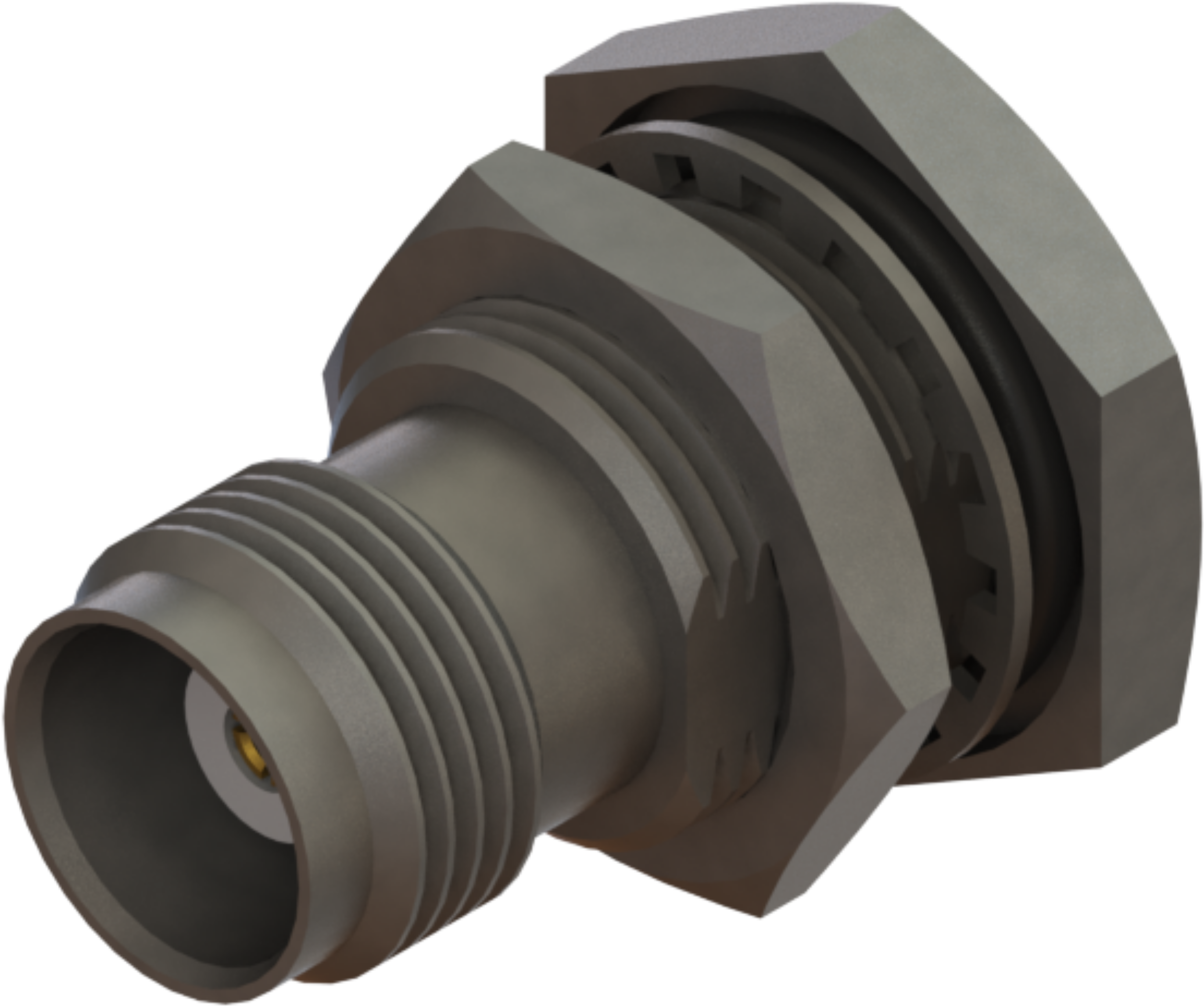

TNC Female Bulkhead Connector for .141 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Jack (Female)
Mounting Type Panel
Orientation (Body) Straight
Termination Style Solder
Body Style Jamnut/Bulkhead
Coupling Threaded
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
Cable Type 0.140 Flexible Coax
Electrical
Frequency GHz 11 GHz
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Jack (Female)
Mounting Type Panel
Orientation (Body) Straight
Termination Style Solder
Body Style Jamnut/Bulkhead
Coupling Threaded
Number of Ports Single
Frequency 11 GHz
Impedance 50 ohms
Cable Type 0.140 Flexible Coax
Electrical
Frequency GHz 11 GHz
Dielectric withstanding Voltage 1500 VRMS
Mating Cycles 500
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
