P/N: 4100-0001

TNC Male Cable Connector, R/A for RG-214 Cable

In stock at Qty Order
Mouser Electronics 24
Digi-Key Electronics 21
Arrow Electronics Inc 8
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 11 GHz
Cable Type RG-214
Impedance 50 ohms
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series TNC
Gender Plug (Male)
Orientation (Body) Right Angle
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 11 GHz
Cable Type RG-214
Impedance 50 ohms
Electrical
Frequency GHz 11 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Mating Cycles 500
Dielectric withstanding Voltage 1500 VRMS
Mechanical
Mating Torque 12 - 15 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   4011-00043

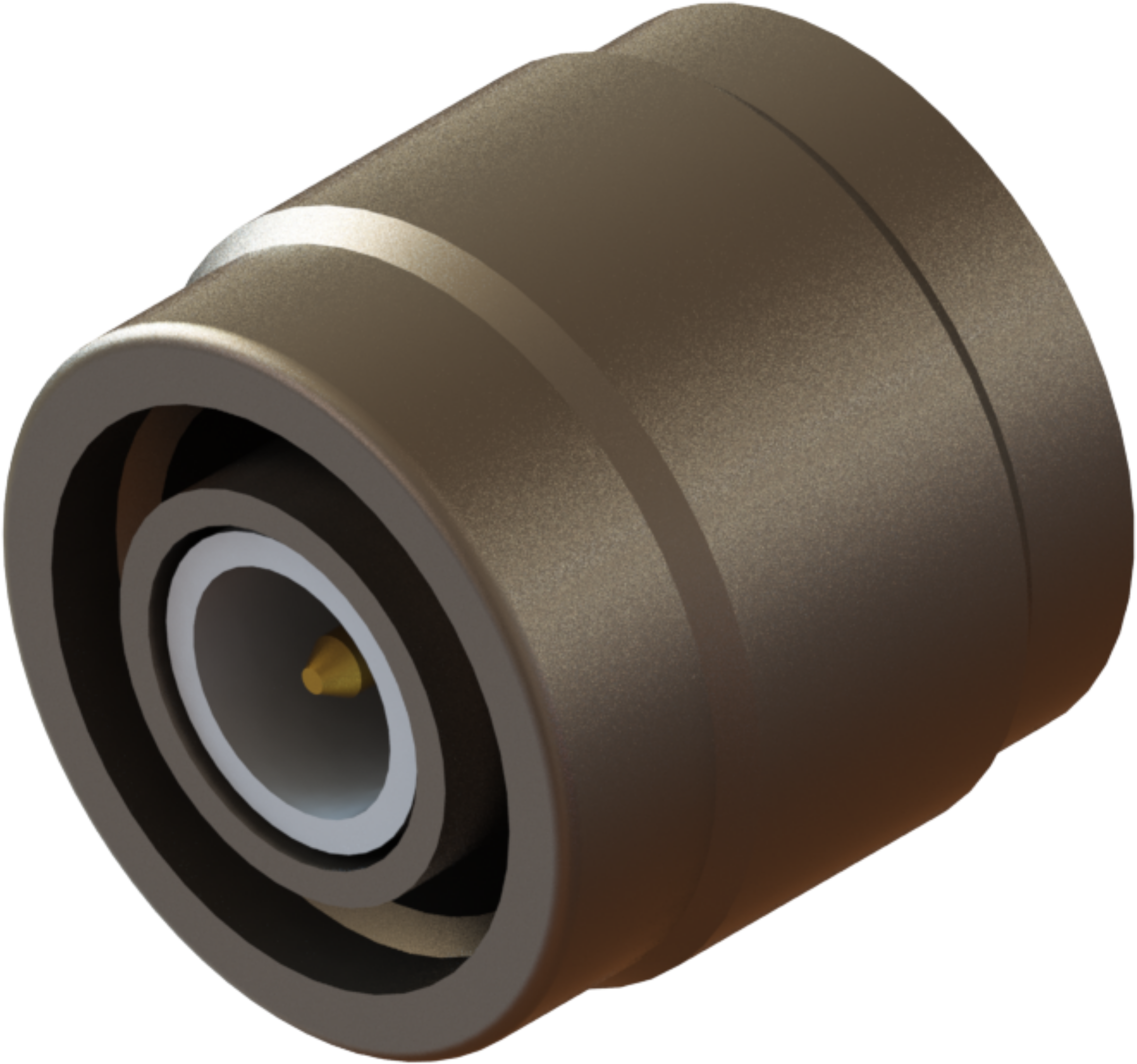

TNC Male Connector for .085 Cable

Available Inventory: 0
4011-00043
TNC Connectors 4011-00043
Datasheet
Part #   4021-00064

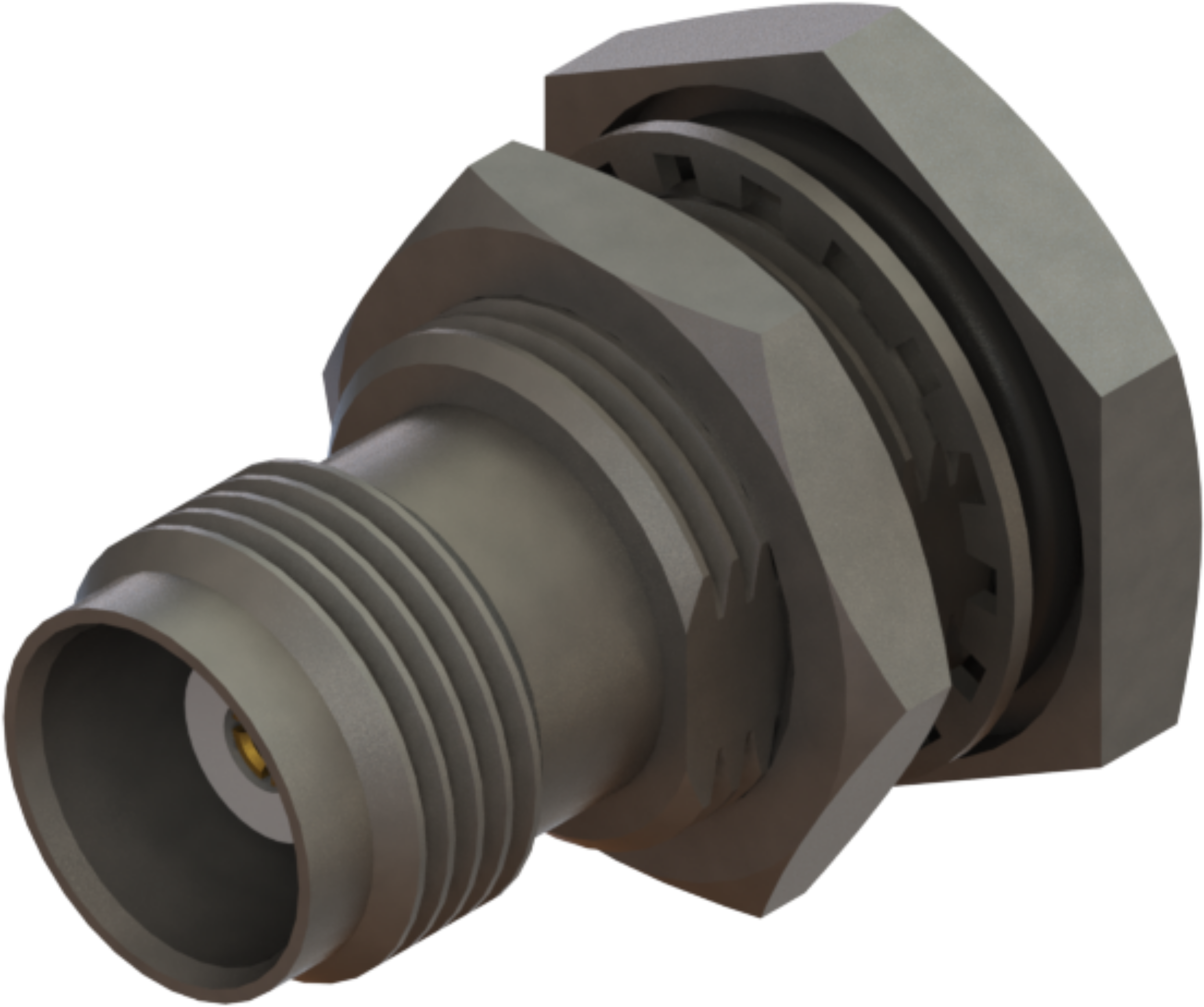

TNC Female Bulkhead Connector for .085 Cable

Available Inventory: 0
4021-00064
TNC Connectors 4021-00064
Datasheet
Part #   M39012/26-0018

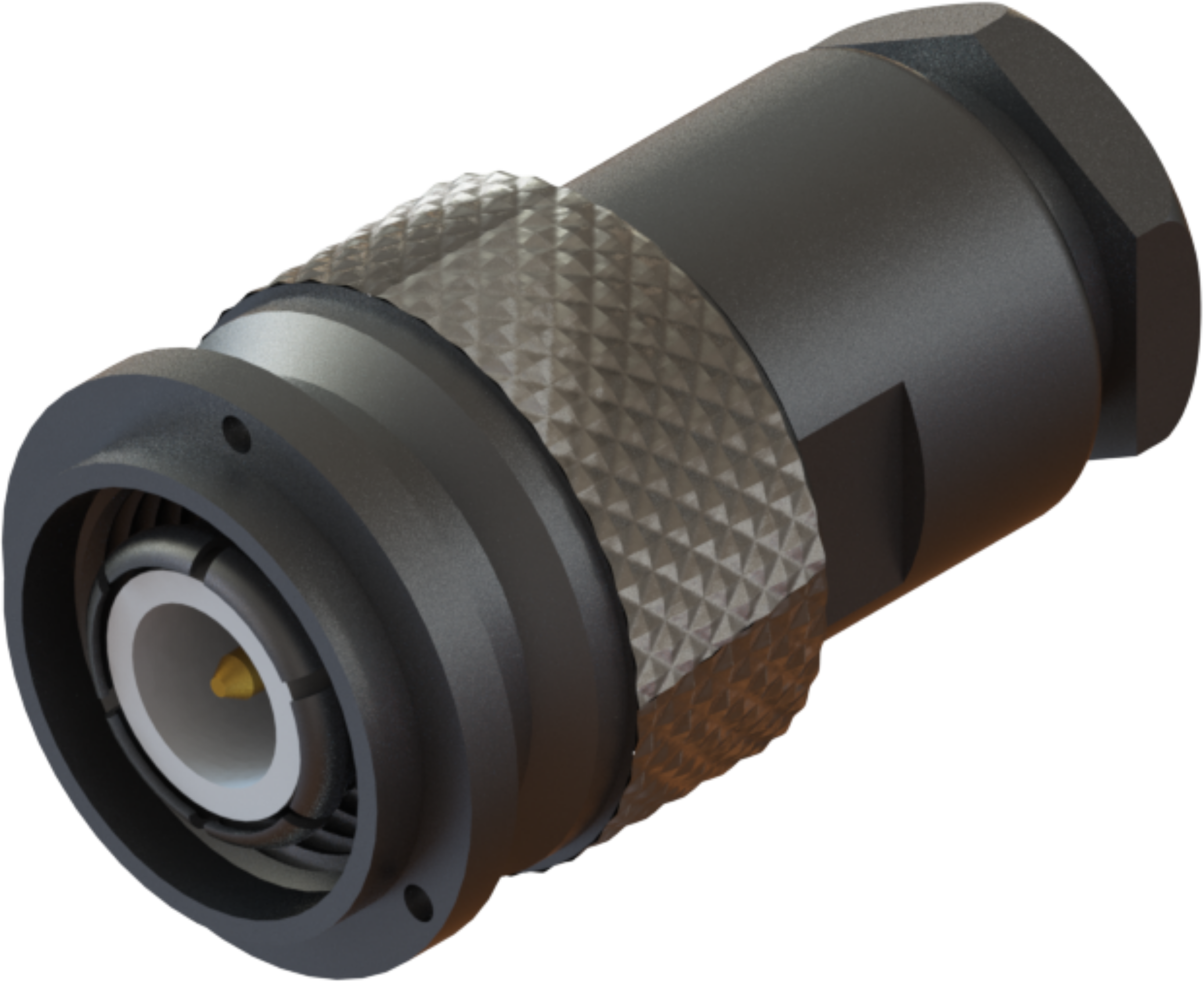

TNC Male Cable Connector, Lockwire Holes, for RG-174 Cable
