P/N: SF1187-6626

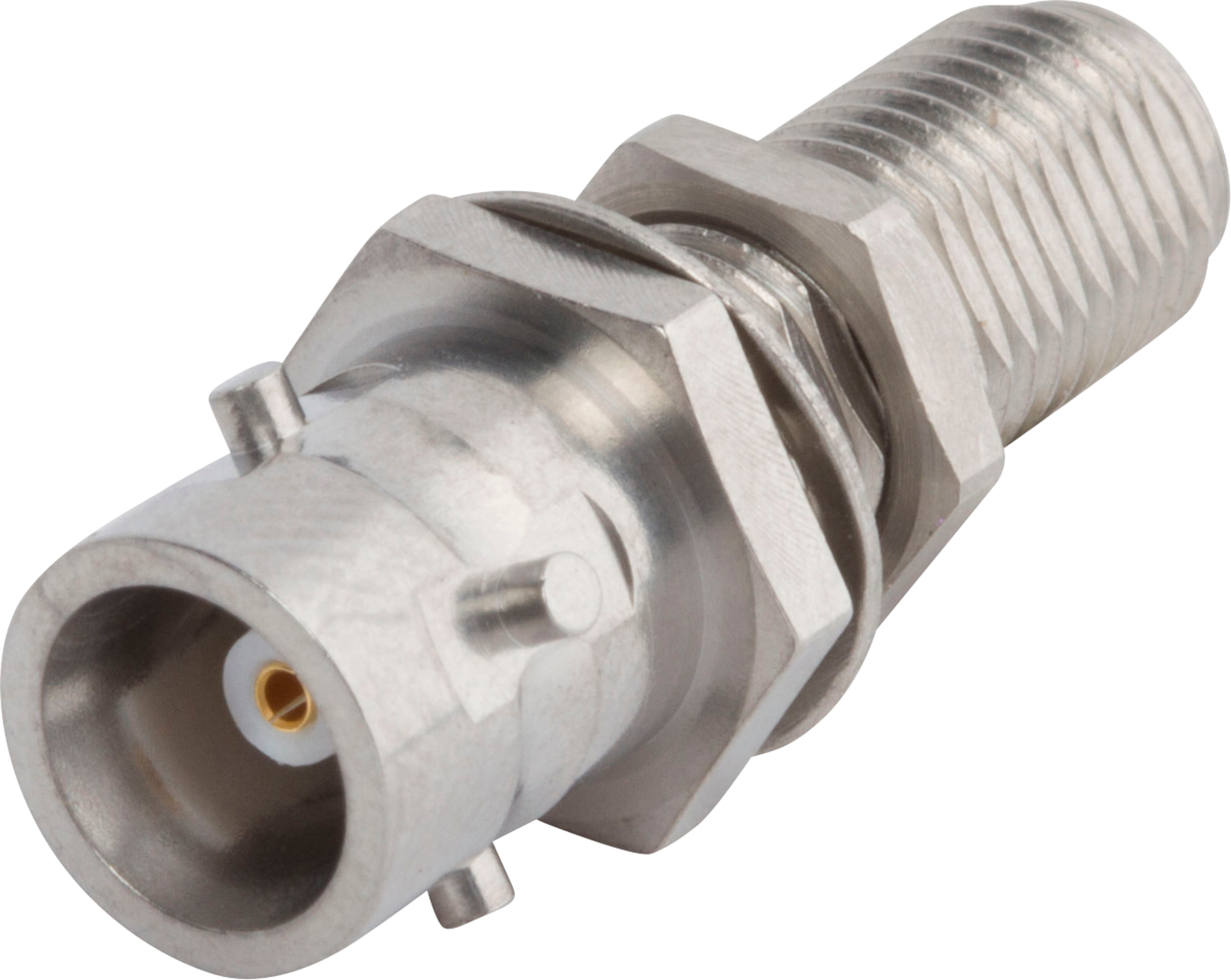

ZMA Female (110°|140°|110°) to SMA Female Adapter

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series ZMA
Orientation (Body) Straight
Coupling Keyed
Gender Jack (Female)
Keyed Subtype 110-140-110
Mounting Type Panel
Body Style Jamnut/Bulkhead
Impedance 50 ohms
Frequency 11 GHz
RF Series 2 SMA
Finish Passivated
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Electrical
Impedance (Ω) 50
Frequency GHz 18 GHz
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 2500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 4 in - oz
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
