P/N: SF8721-60110

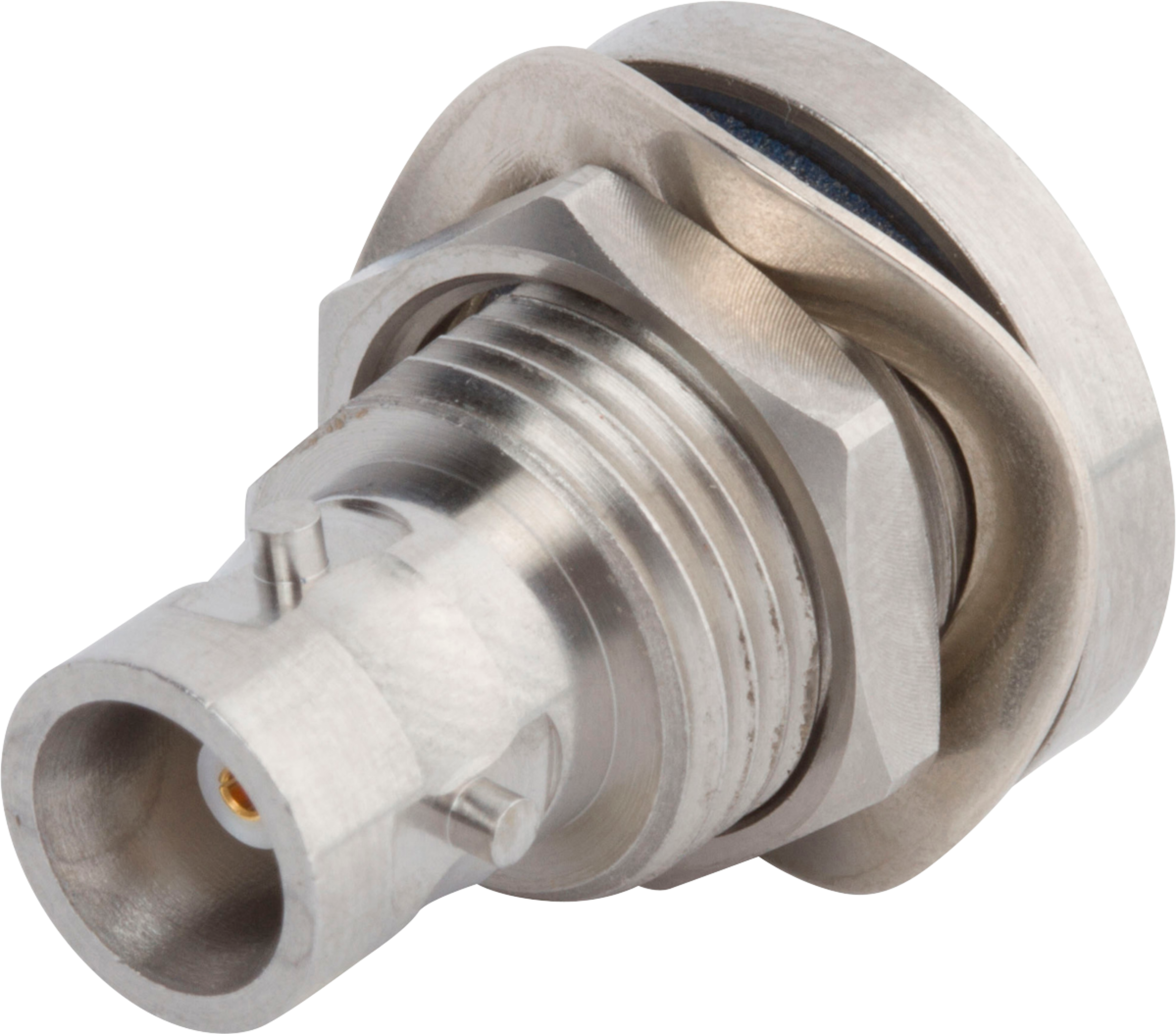

ZMA Female (120°) Connector for .085 Cable

In stock at Qty Order
Master Electronics 25
Products specifications
Attribute name Attribute value
Orientation (Body) Straight
RF Series ZMA
Gender Jack (Female)
Coupling Keyed
Keyed Subtype 120-120-120
Frequency 18 GHz
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Finish Passivated
Electrical
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Frequency GHz 18 GHz
Mating Cycles 500
Dielectric withstanding Voltage 2500 VRMS
Mechanical
Mating Torque 4 in - oz
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
