P/N: SF1122-6031

ZMA Male (90°) to SMA Female Adapter

In stock at Qty Order
Digi-Key Electronics 99
Newark 11
TTI Inc Global Headquarters 5
Mouser Electronics 2
Microwave Components LLC 2
Heilind Electronics 1
Products specifications
Attribute name Attribute value
RF Series ZMA
Gender Plug (Male)
Orientation (Body) Straight
Keyed Subtype 90-90-90-90
Coupling Keyed
Impedance 50 ohms
Frequency 11 GHz
Finish Passivated
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 2500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 4 in - oz
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series ZMA
Gender Plug (Male)
Orientation (Body) Straight
Keyed Subtype 90-90-90-90
Coupling Keyed
Impedance 50 ohms
Frequency 11 GHz
Finish Passivated
RF Series 2 SMA
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Electrical
Frequency GHz 18 GHz
Impedance (Ω) 50
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 2500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 4 in - oz
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1122-6032

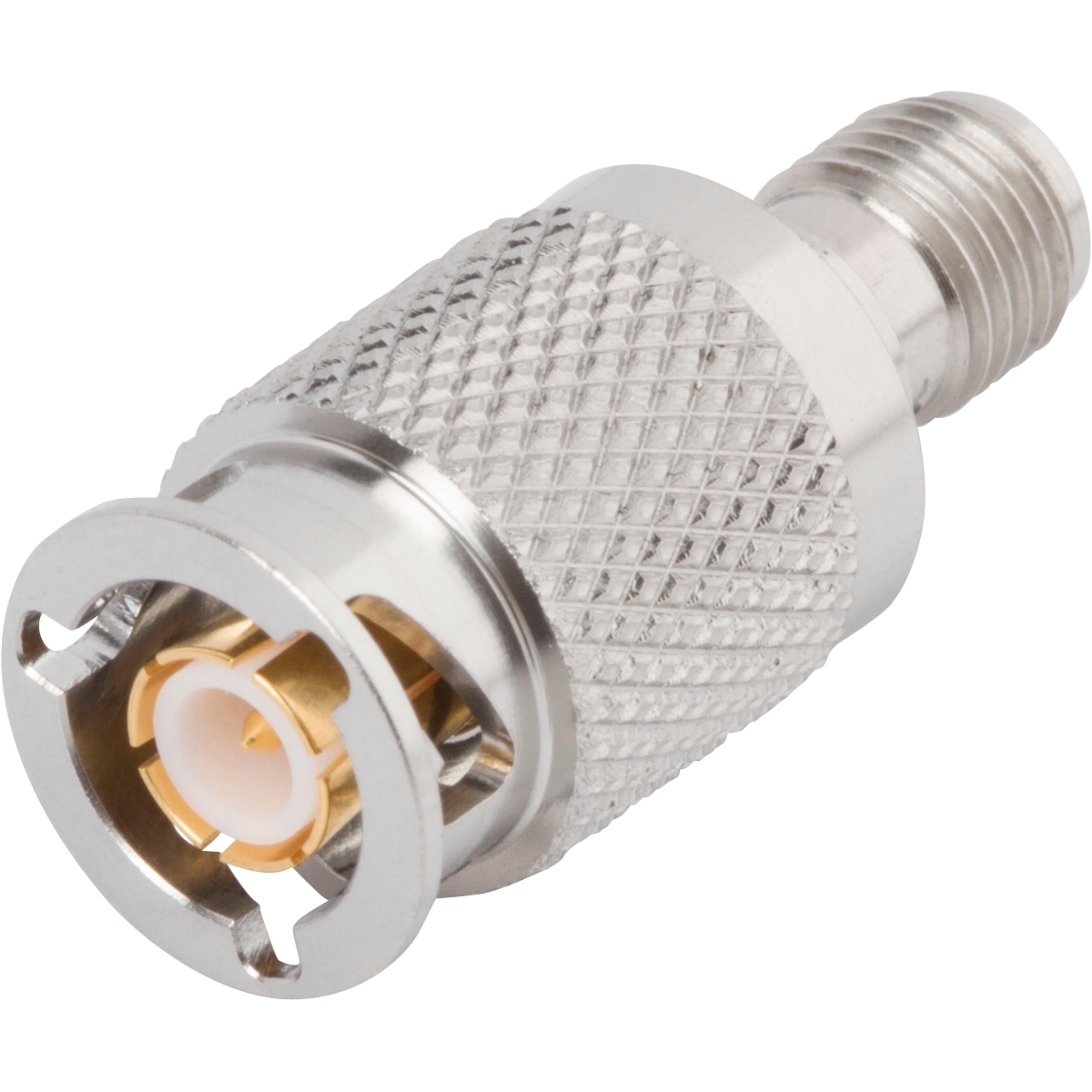

ZMA Male (120°) to SMA Female Adapter

Available Inventory: 141
SF1122-6032
ZMA Adapters SF1122-6032
Datasheet
Part #   SF1122-6033

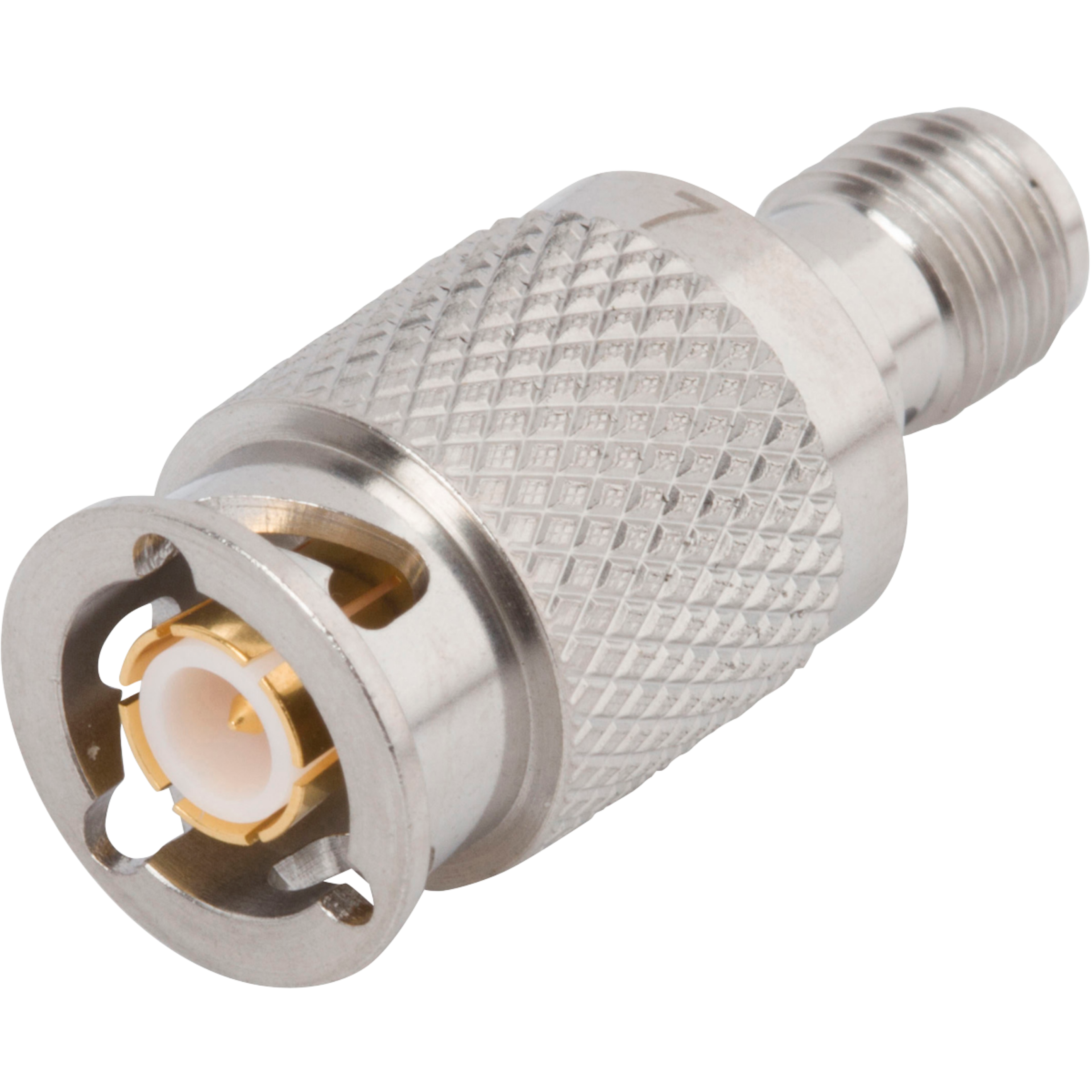

ZMA Male (130°|100°|130°) to SMA Female Adapter

Available Inventory: 40
SF1122-6033
ZMA Adapters SF1122-6033
Datasheet
Part #   SF1122-6034

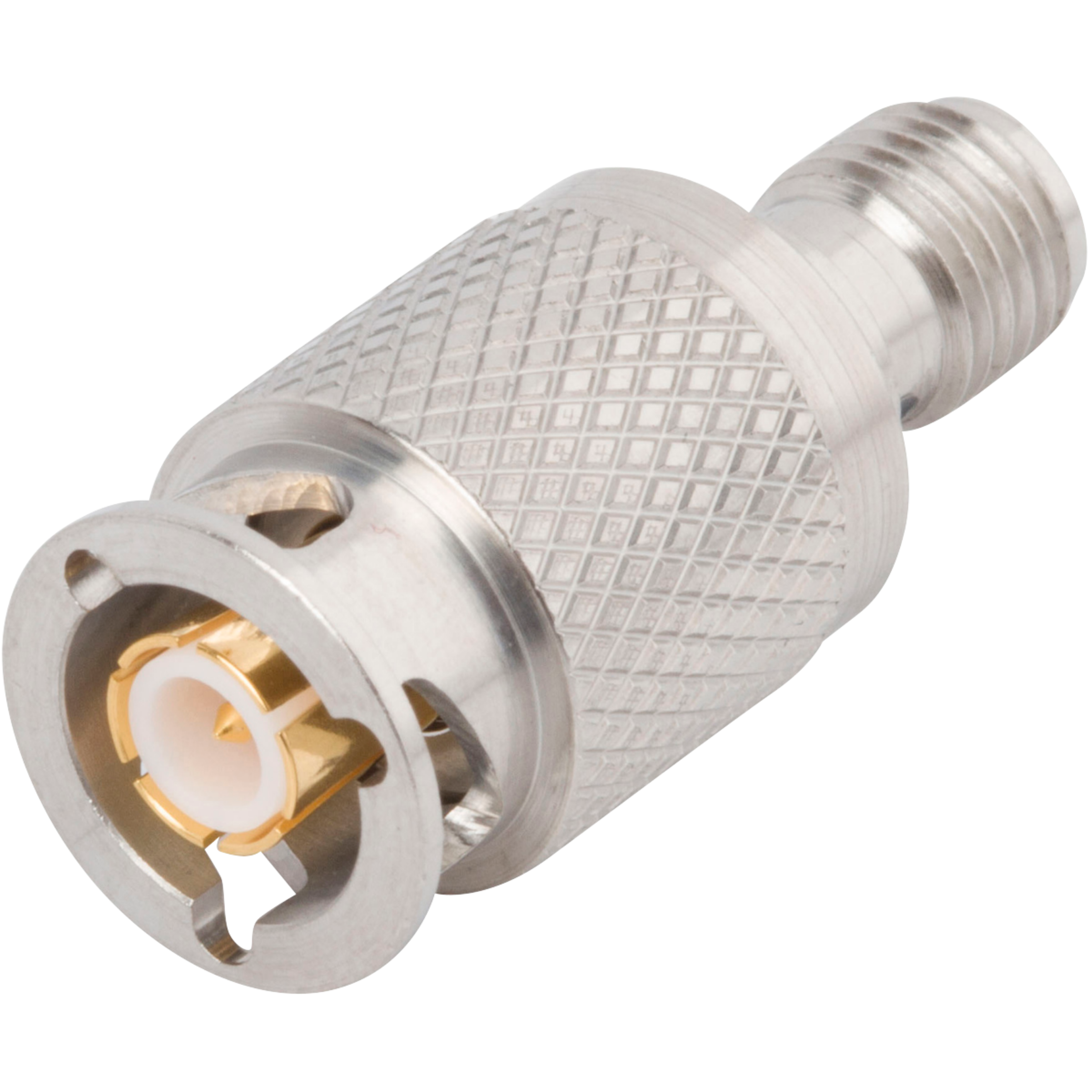

ZMA Male (110°|140°|110°) to SMA Female Adapter
