P/N: SF3321-60006

1.85mm Female Connector for .085 Cable

In stock at Qty Order
Mouser Electronics 32
Digi-Key Electronics 11
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 65 GHz
Finish Passivated
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 2.4mm
Mating Torque 5 - 7 in - lbs
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Orientation (Body) Straight
Coupling Threaded
Termination Style Solder
Number of Ports Single
Frequency 65 GHz
Finish Passivated
Impedance 50 ohms
Cable Type 0.085 Flexible Coax
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 2.4mm
Mating Torque 5 - 7 in - lbs
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF3321-60004

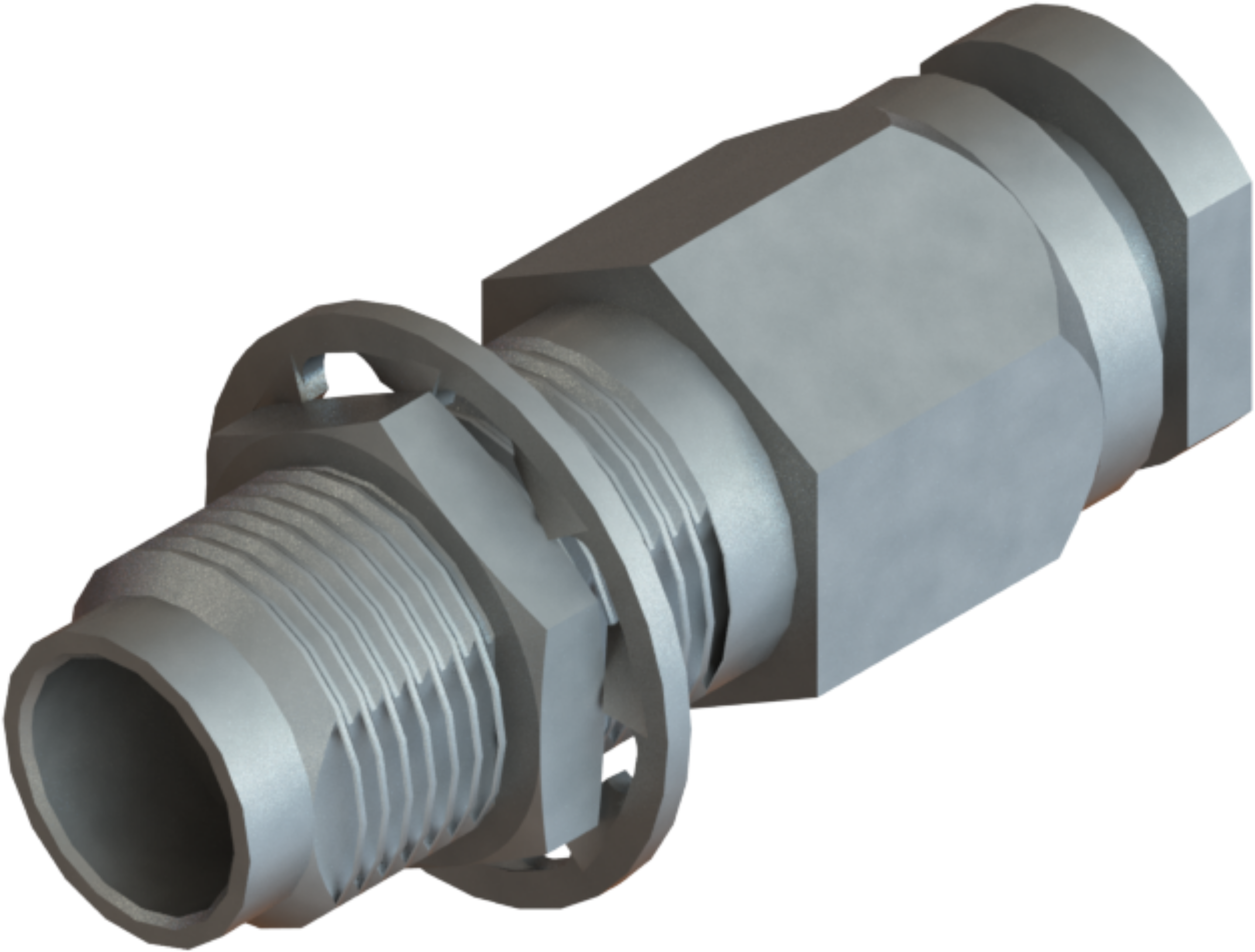

1.85mm Female Bulkhead Connector for .047 Cable

Available Inventory: 23
SF3321-60004
1.85mm Connectors SF3321-60004
Datasheet
Part #   SF3321-60005

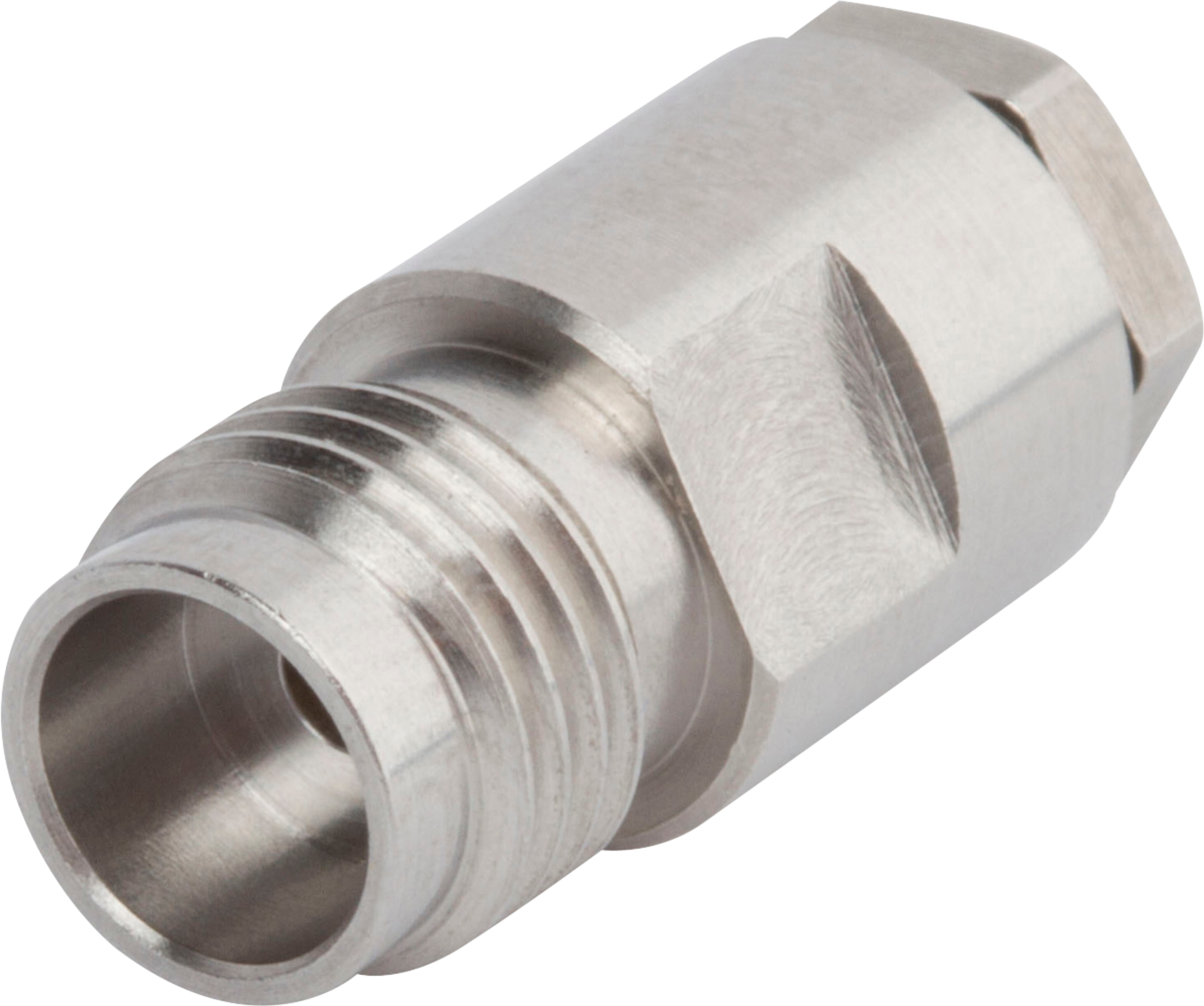

1.85mm Female Connector for .047 Cable

Available Inventory: 50
SF3321-60005
1.85mm Connectors SF3321-60005
Datasheet
Part #   SF3321-60007

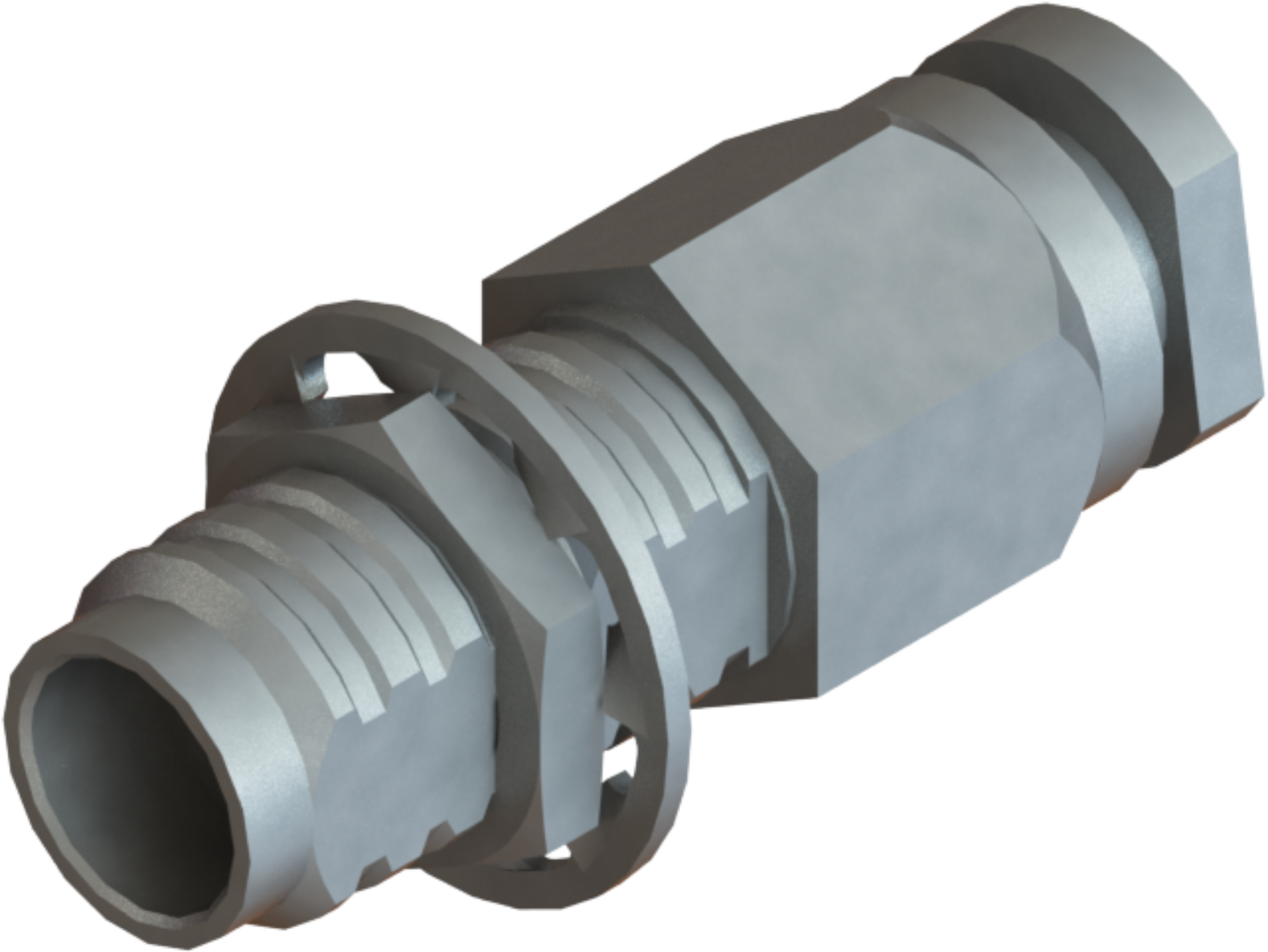

1.85mm Female Bulkhead Connector for .085 Cable
