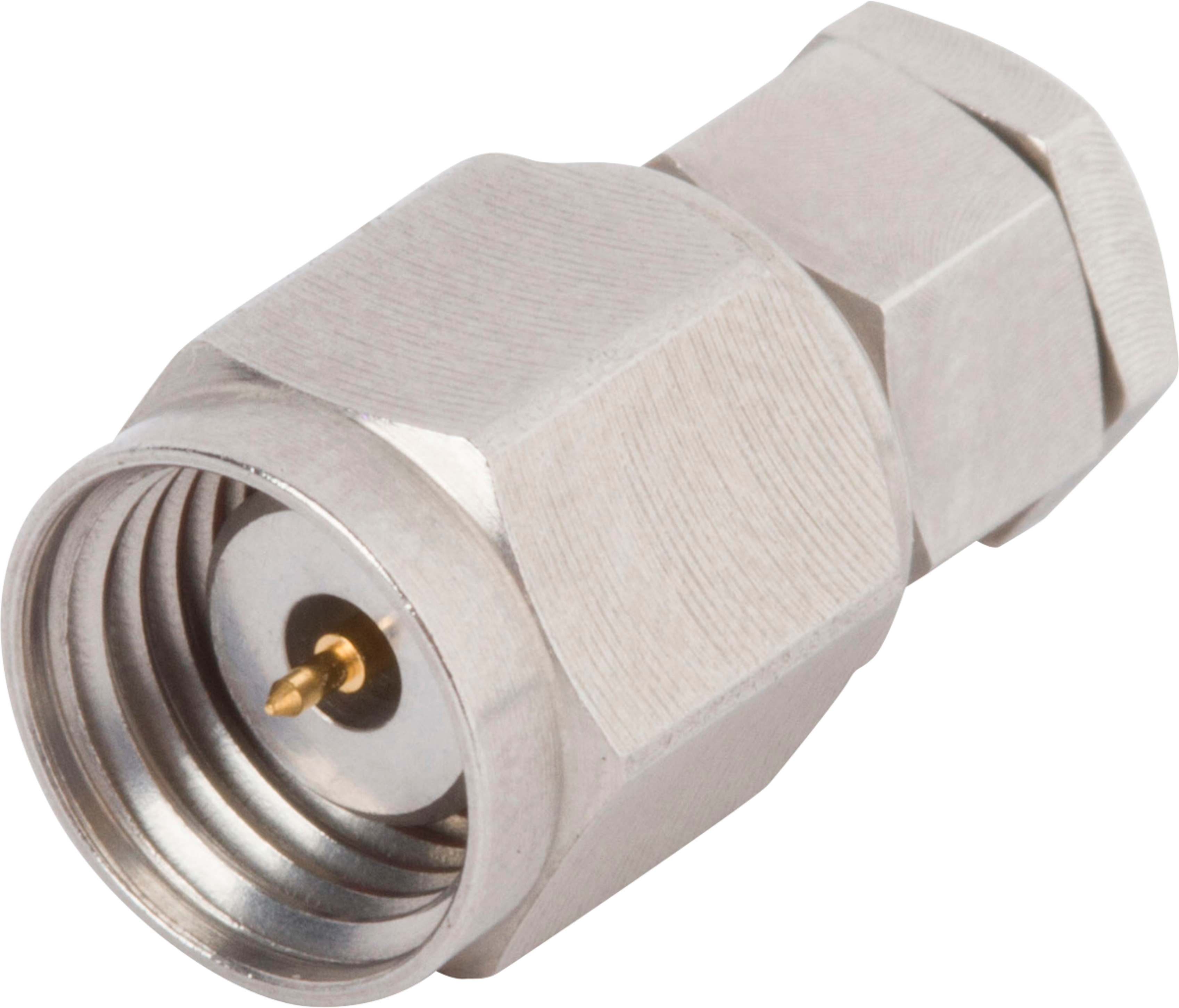

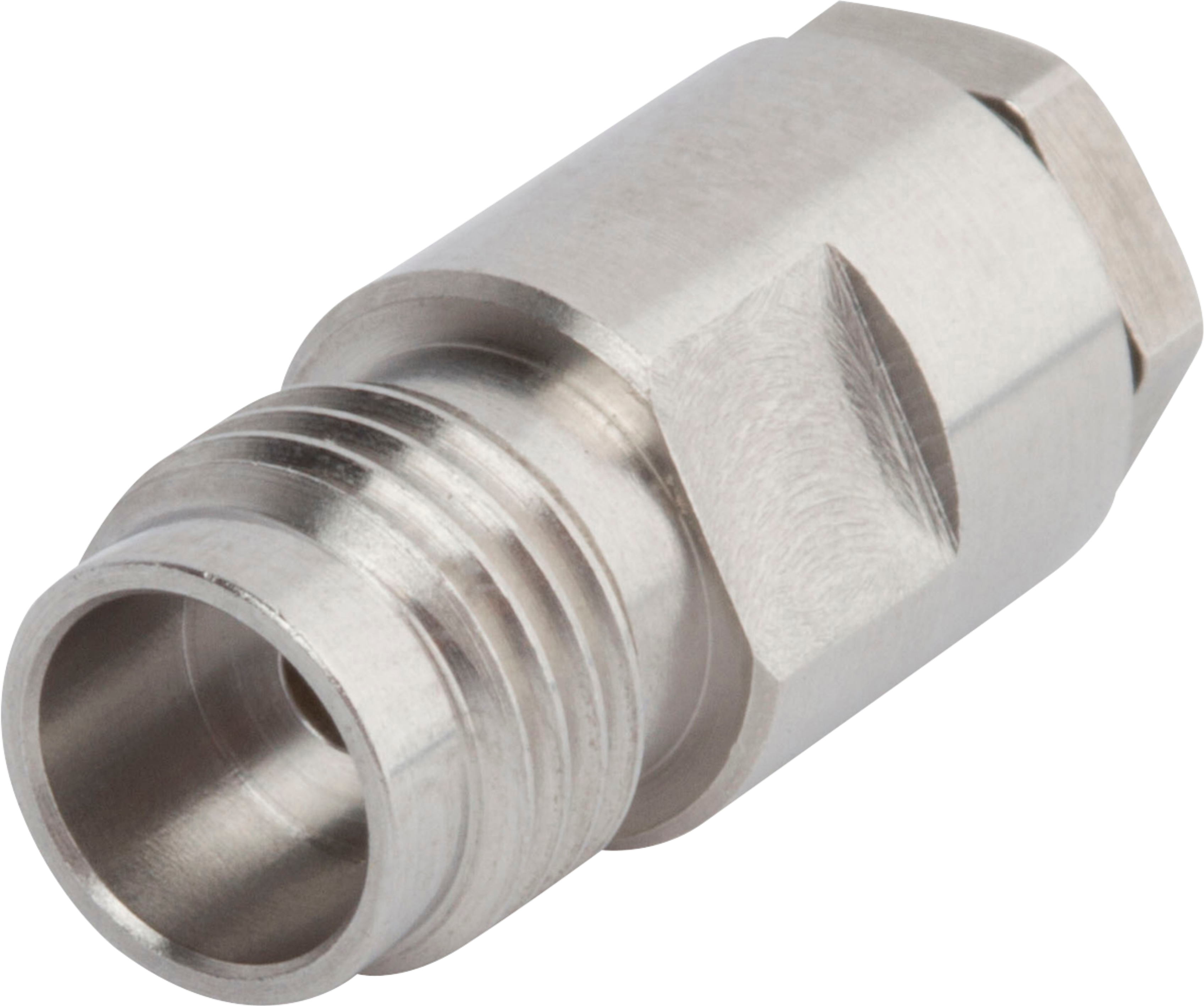

Attribute name | Attribute value |
---|---|
RF Series | 1.85 mm |
Gender | Plug (Male) |
Orientation (Body) | Straight |
Termination Style | Solder |
Number of Ports | Single |
Finish | Passivated |
Coupling | Threaded |
Cable Type | 0.047 Flexible Coax |
Cable Builder Attributes | |
Cable Builder Left Image | 25883 |
Cable Builder Right Image | 25884 |
Mating Connector | SF3321-60021, SF3311-60012 |
Electrical | |
Impedance | 50 ohms |
Frequency | 65 GHz |
Shielding Effectiveness | ≥ -100 dB |
Dielectric withstanding Voltage | 500 VRMS |
Mechanical | |
Mating Cycles | 500 |
Mating Torque | 5 - 7 in - lbs |
Inter-mate ability | 2.4mm |
Environmental | |
Corrosion (salt spray) | MIL-STD-202, Method 101, Condition B |
Temperature Rating | -65°C to +165°C |
Thermal Shock | MIL-STD-202, Method 107, Condition B |
Shock | MIL-STD-202, Method 213, Condition I |
Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. |
Moisture Resistance | MIL-STD-202, Method 106, Less Step 7B |
Vibration | MIL-STD-202, Method 204, Condition D |
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. Please contact [email protected] for any Compliance or Environmental related questions. Last Update: 2/6/2023 1:06:15 AM |
