P/N: SF3321-60032

1.85mm Female Solderless LiteTouch PCB Connector, 2 Hole (CPW / Microstrip)

In stock at Qty Order
Mouser Electronics 100 On Order
Products specifications
Attribute name Attribute value
Family LiteTouch
RF Series 1.85 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Termination Style Solder-free
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Number of Ports Single
Finish Passivated
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family LiteTouch
RF Series 1.85 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Termination Style Solder-free
Body Style 2 Hole
Mounting Type PCB Vertical Launch
Number of Ports Single
Finish Passivated
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Environmental
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   SF3321-60033

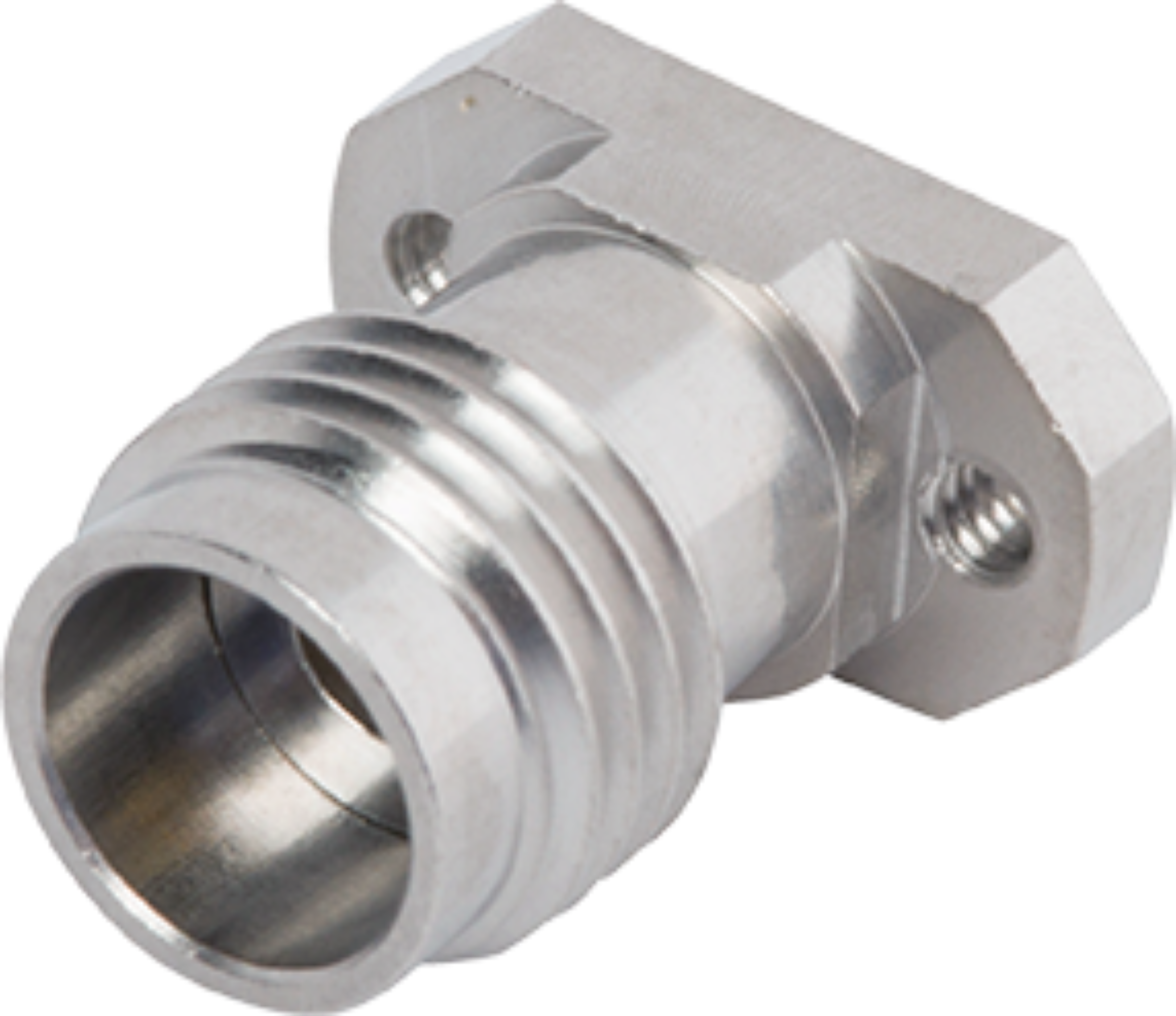

1.85mm Female Solderless LiteTouch PCB Connector, 2 Hole (Stripline)

Available Inventory: 0
SF3321-60033
1.85mm Connectors SF3321-60033
Datasheet

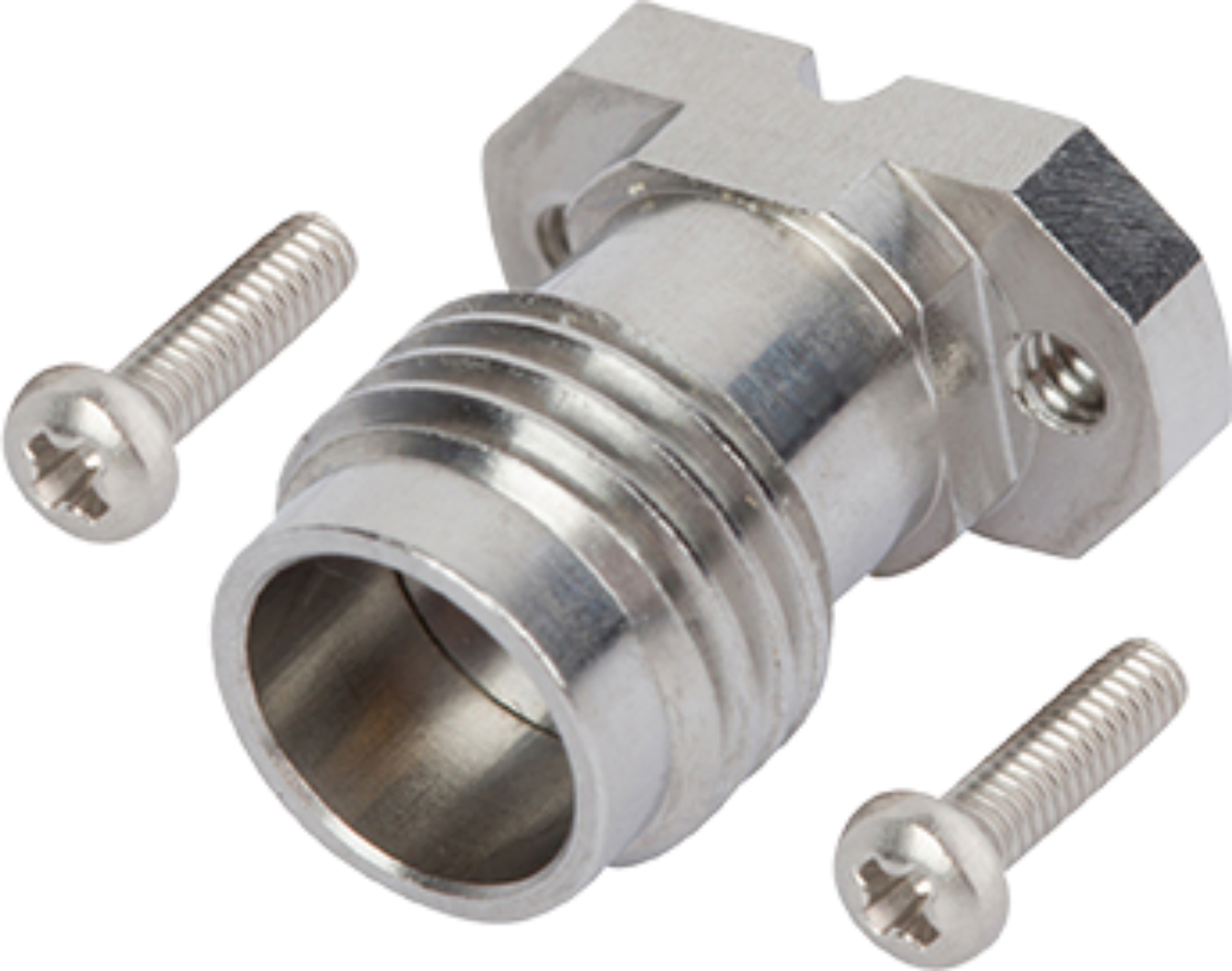

SF3321-60032-1S
1.85mm Connectors SF3321-60032-1S
Datasheet

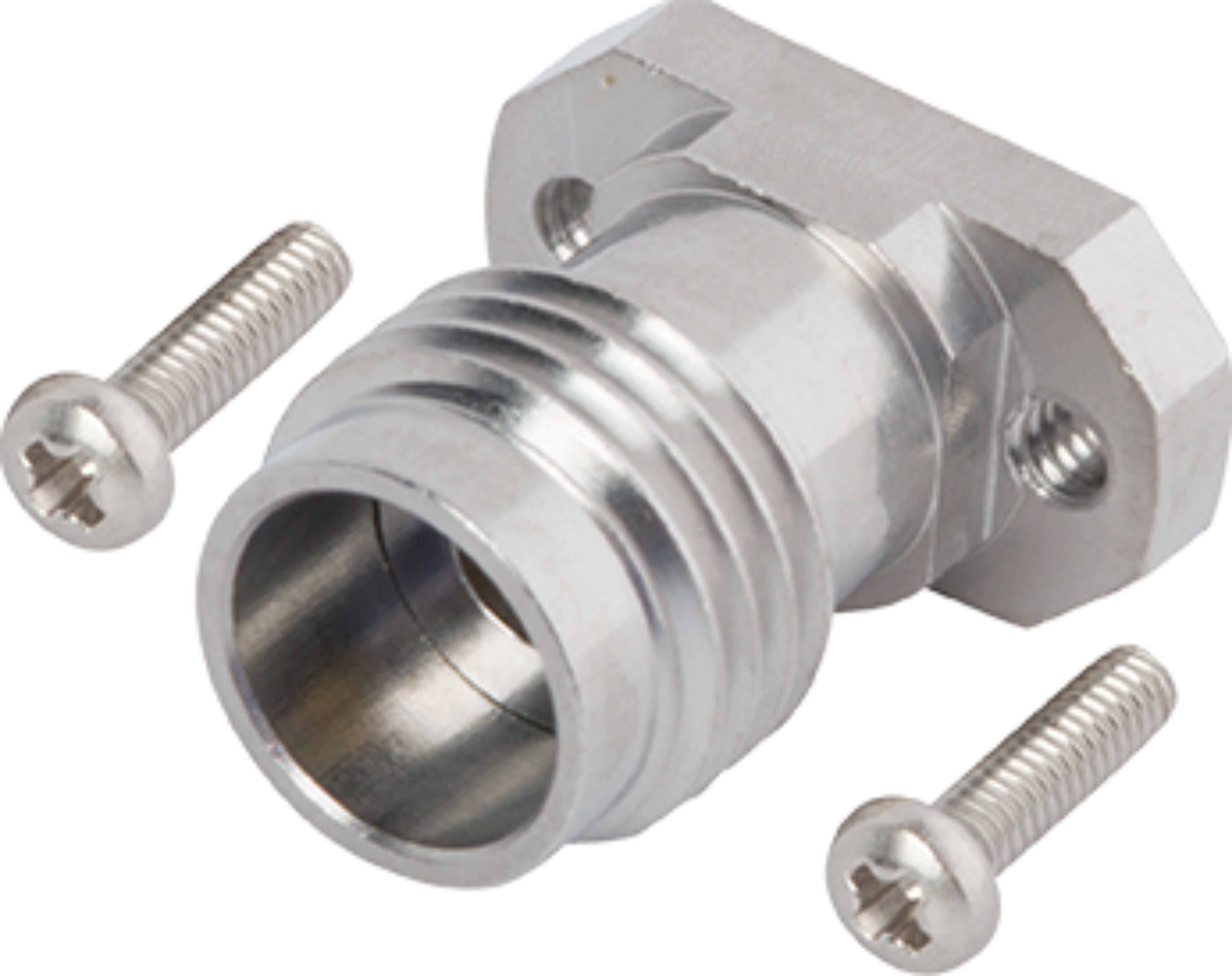

SF3321-60033-1S
