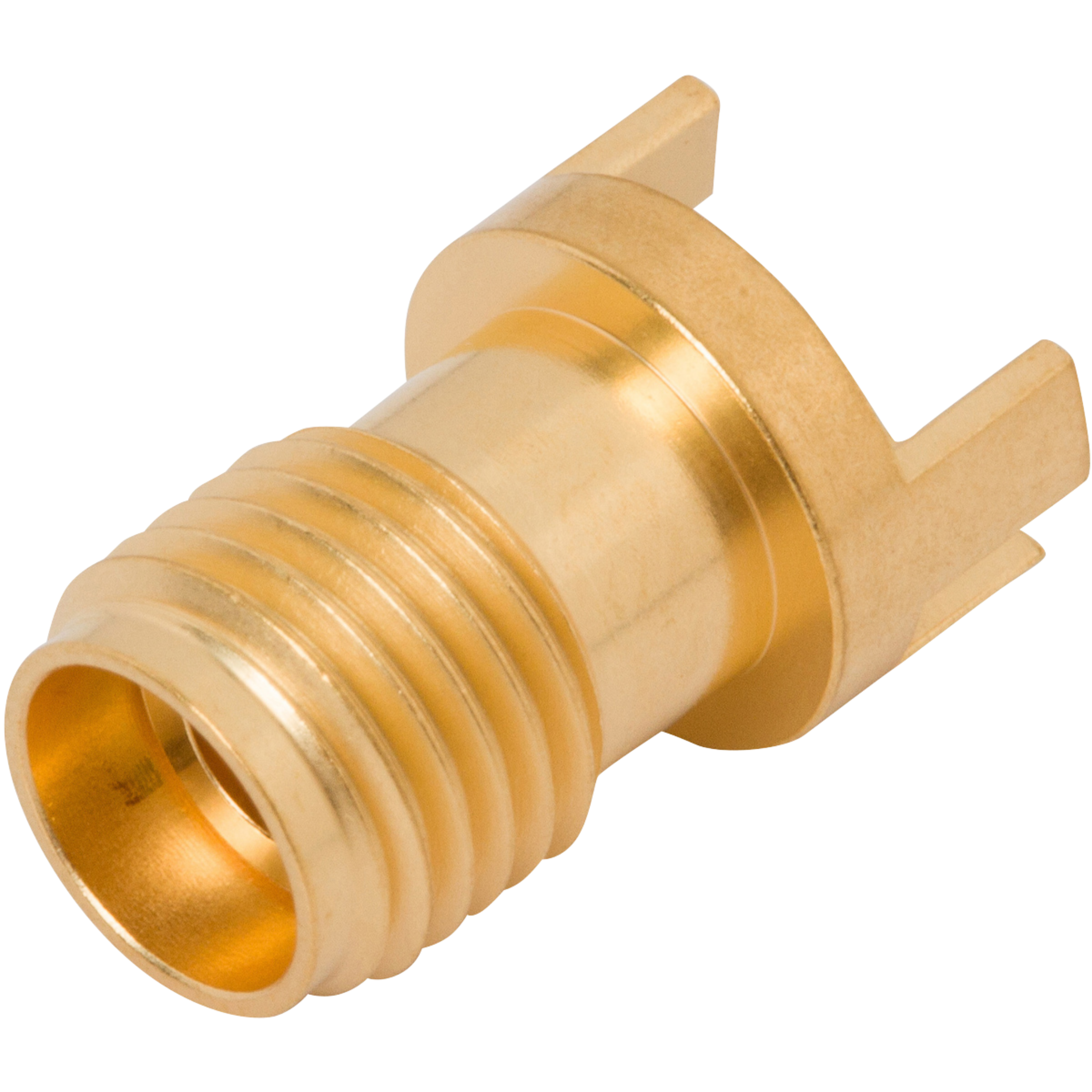

P/N: 3321-60001

1.85mm Female PCB Edge Launch Connector, .062" PCB Thickness"

In stock at Qty Order
Richardson RFPD 500
Digi-Key Electronics 98
TTI Inc Global Headquarters 70
Mouser Electronics 32
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Number of Ports Single
Impedance 50 ohms
Finish Gold
Frequency 65 GHz
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Orientation (Body) Straight
Gender Jack (Female)
Coupling Threaded
Mounting Type PCB Edge Launch
Termination Style Solder
Number of Ports Single
Impedance 50 ohms
Finish Gold
Frequency 65 GHz
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 2.4mm
Temperature Rating -65°C to +165°C
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   1285-6004

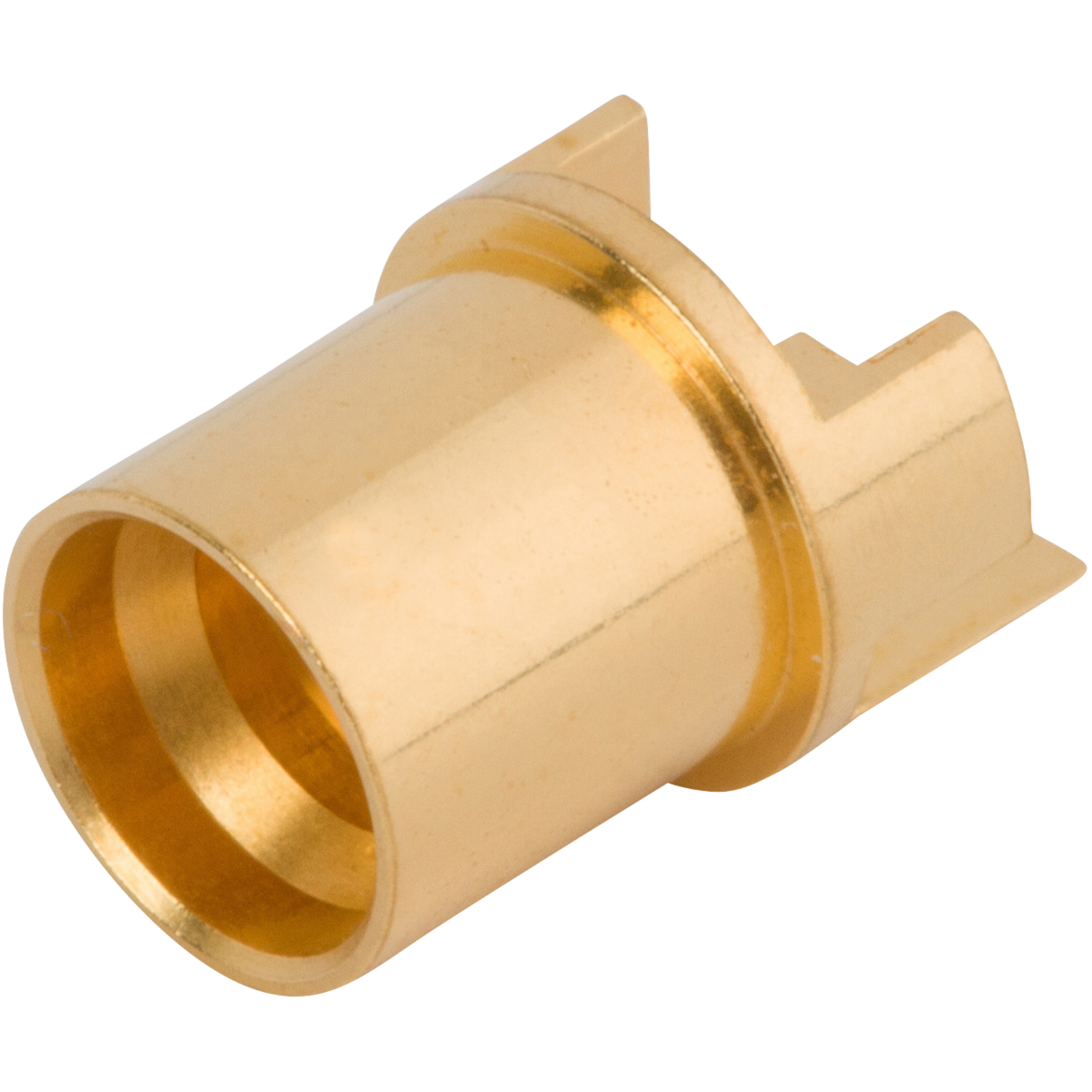

SMP Male PCB Edge Launch Connector, .062" PCB Thickness, SB"

Available Inventory: 86
1285-6004
SMP Connectors 1285-6004
Datasheet
Part #   1521-60051

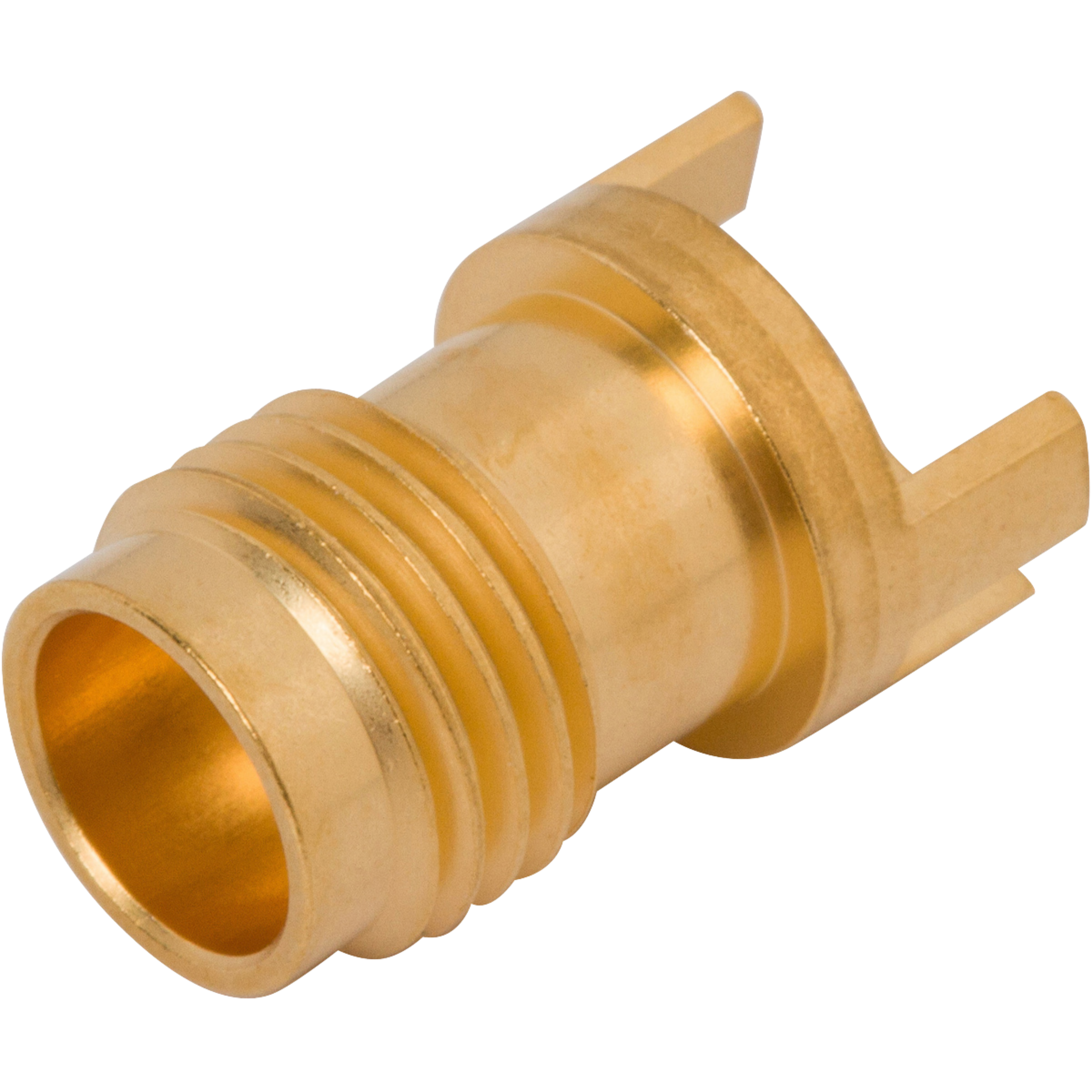

2.92mm Female PCB Edge Launch Connector, .062" PCB Thickness"
