P/N: SF3375-6001

1.85mm Female Sparkplug Connector (Accepts .008 Pin)

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Mounting Type Panel
Number of Ports Single
Frequency 65 GHz
Finish Passivated
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Jack (Female)
Coupling Threaded
Orientation (Body) Straight
Mounting Type Panel
Number of Ports Single
Frequency 65 GHz
Finish Passivated
Impedance 50 ohms
Electrical
Impedance (Ω) 50
Frequency GHz 65 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Customers Also Viewed
Part #   2975-6200

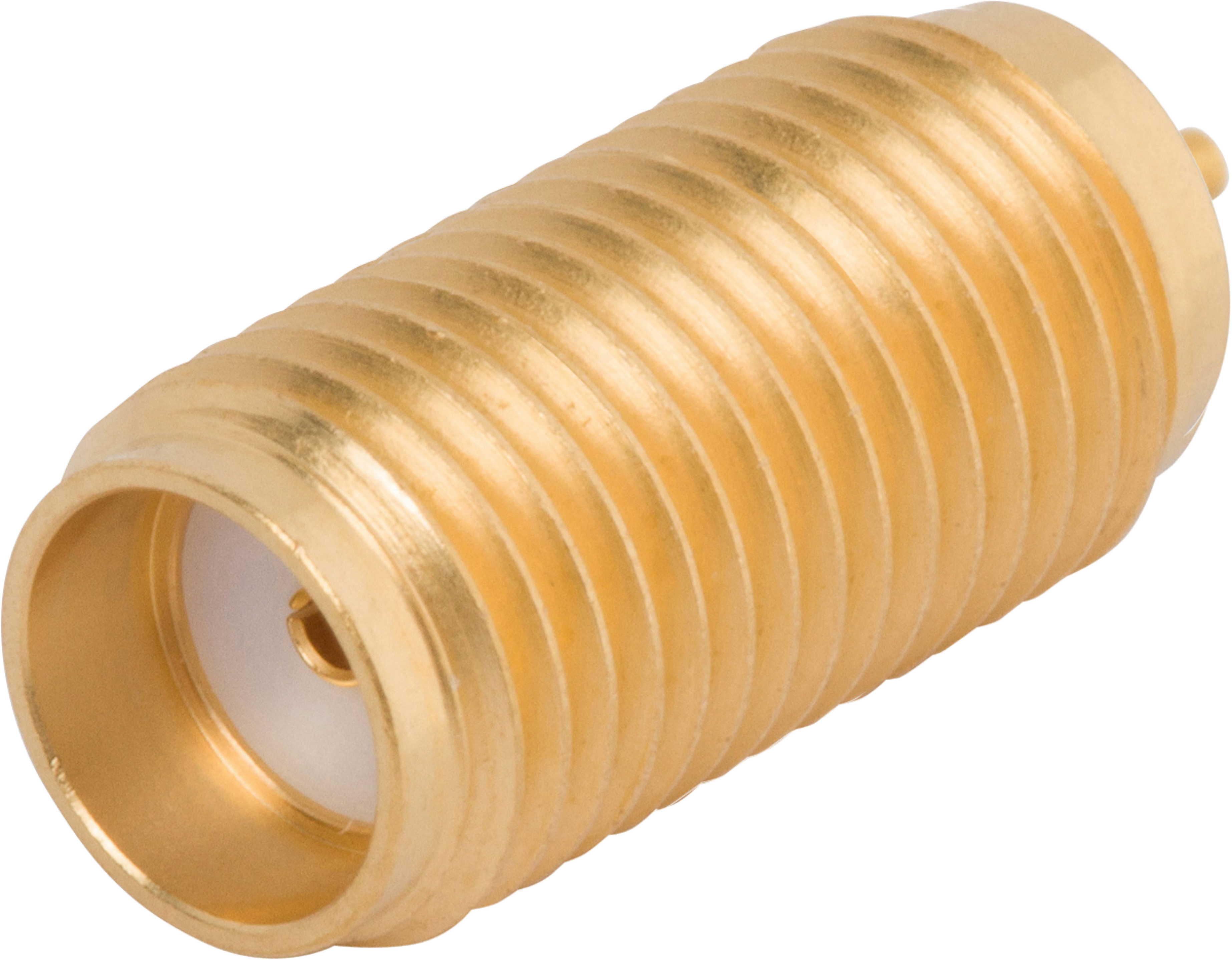

SMA Female Sparkplug Hermetic Connector

Available Inventory: 1448
2975-6200
SMA Connectors 2975-6200
Datasheet
Part #   SF1575-6007

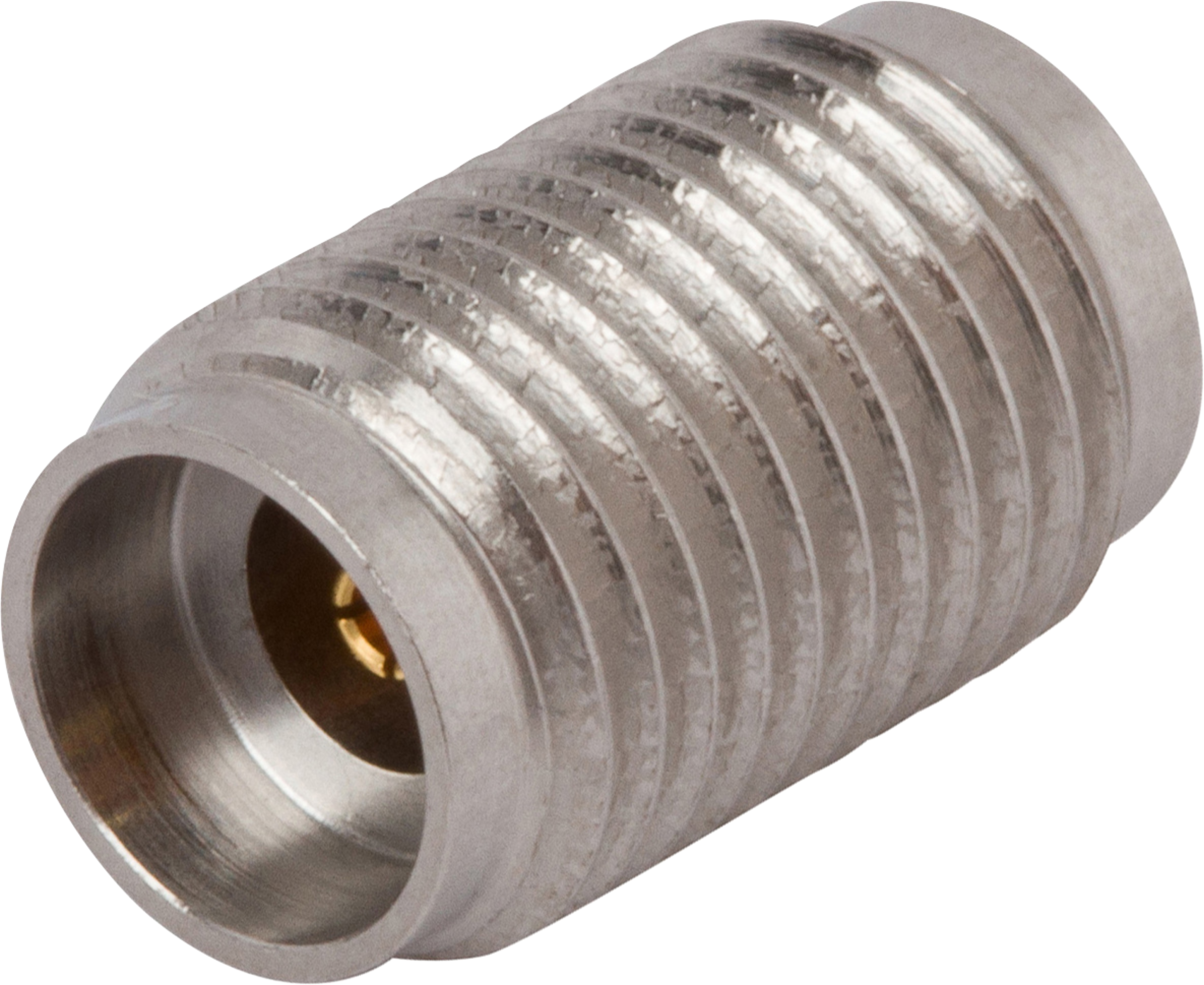

2.92mm Female Sparkplug Connector

Available Inventory: 87
SF1575-6007
2.92mm Connectors SF1575-6007
Datasheet
Part #   SF1675-6004

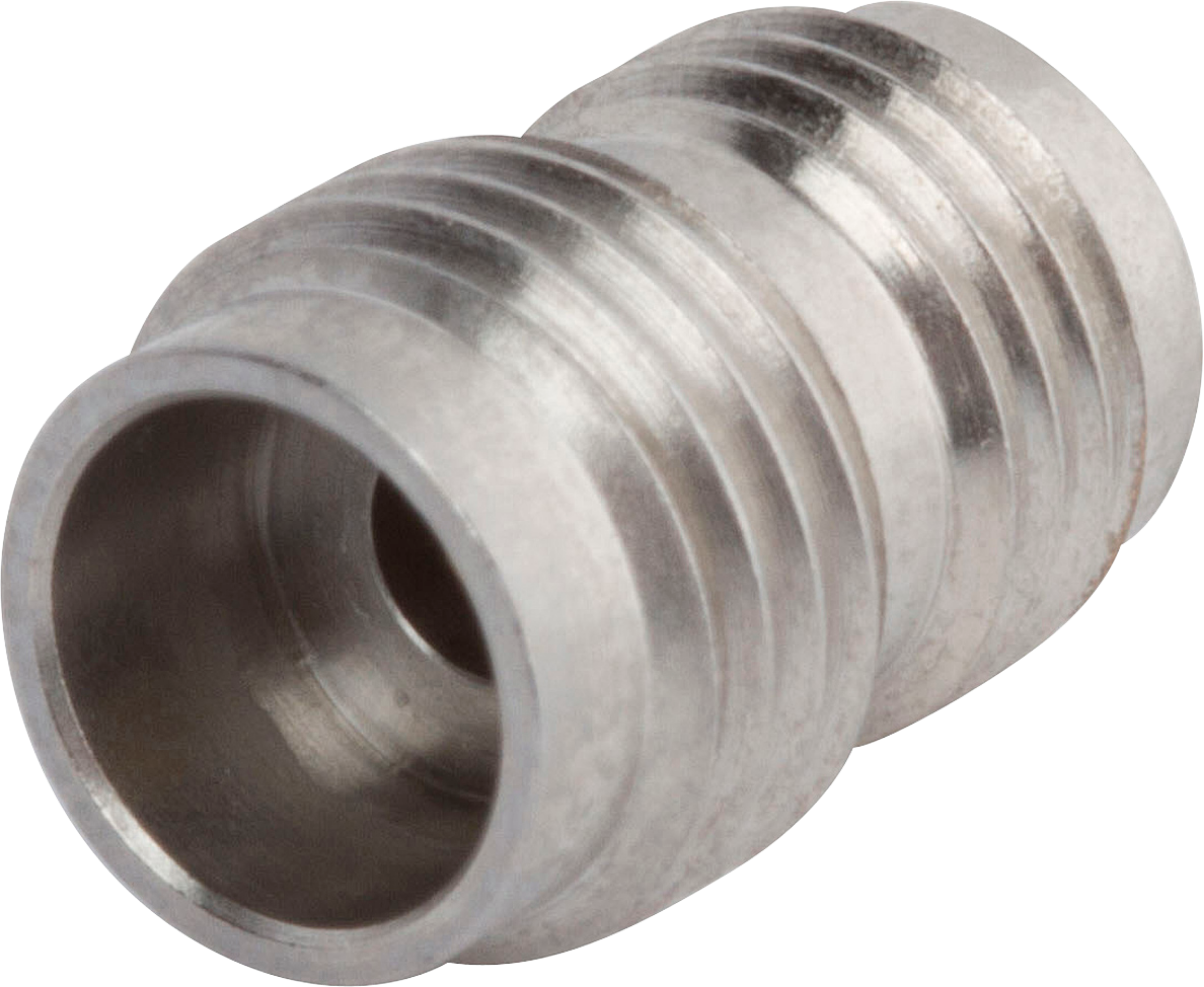

2.4mm Female Sparkplug Connector (Accepts .008 Pin)
