P/N: SF3321-60003

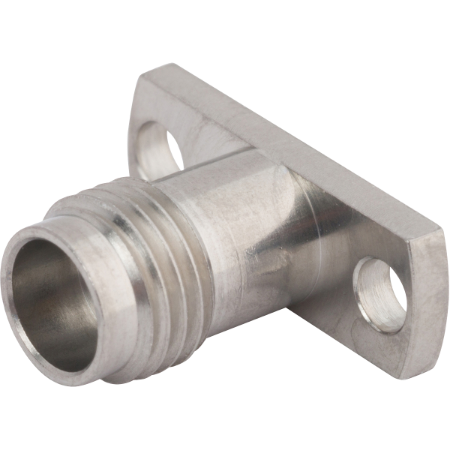

1.85mm Female Flange Mount Connector, 2 Hole (Accepts .009 Pin)

In stock at Qty Order
Mouser Electronics 50
Digi-Key Electronics 39
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Coupling Threaded
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type Panel
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Inter-mate ability 2.4mm
Mating Torque 5 - 7 in - lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Coupling Threaded
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type Panel
Body Style 2 Hole
Number of Ports Single
Finish Passivated
Electrical
Frequency 65 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Inter-mate ability 2.4mm
Mating Torque 5 - 7 in - lbs
Environmental
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1552-6002

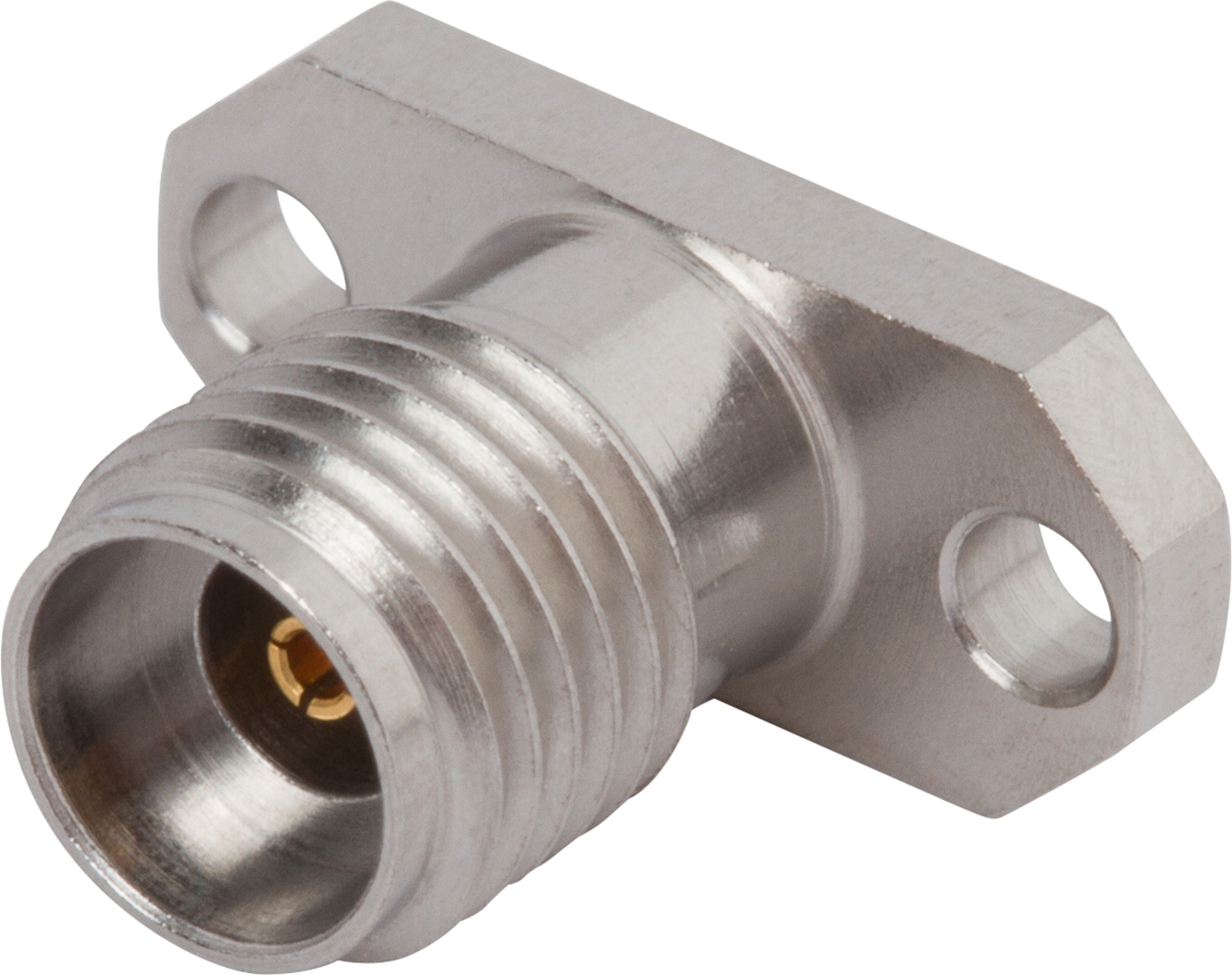

2.92mm Female Flange Mount Connector, 2 Hole (Accepts Ø.012 Pin)

Available Inventory: 766
SF1552-6002
2.92mm Connectors SF1552-6002
Datasheet
Part #   SF1621-60017

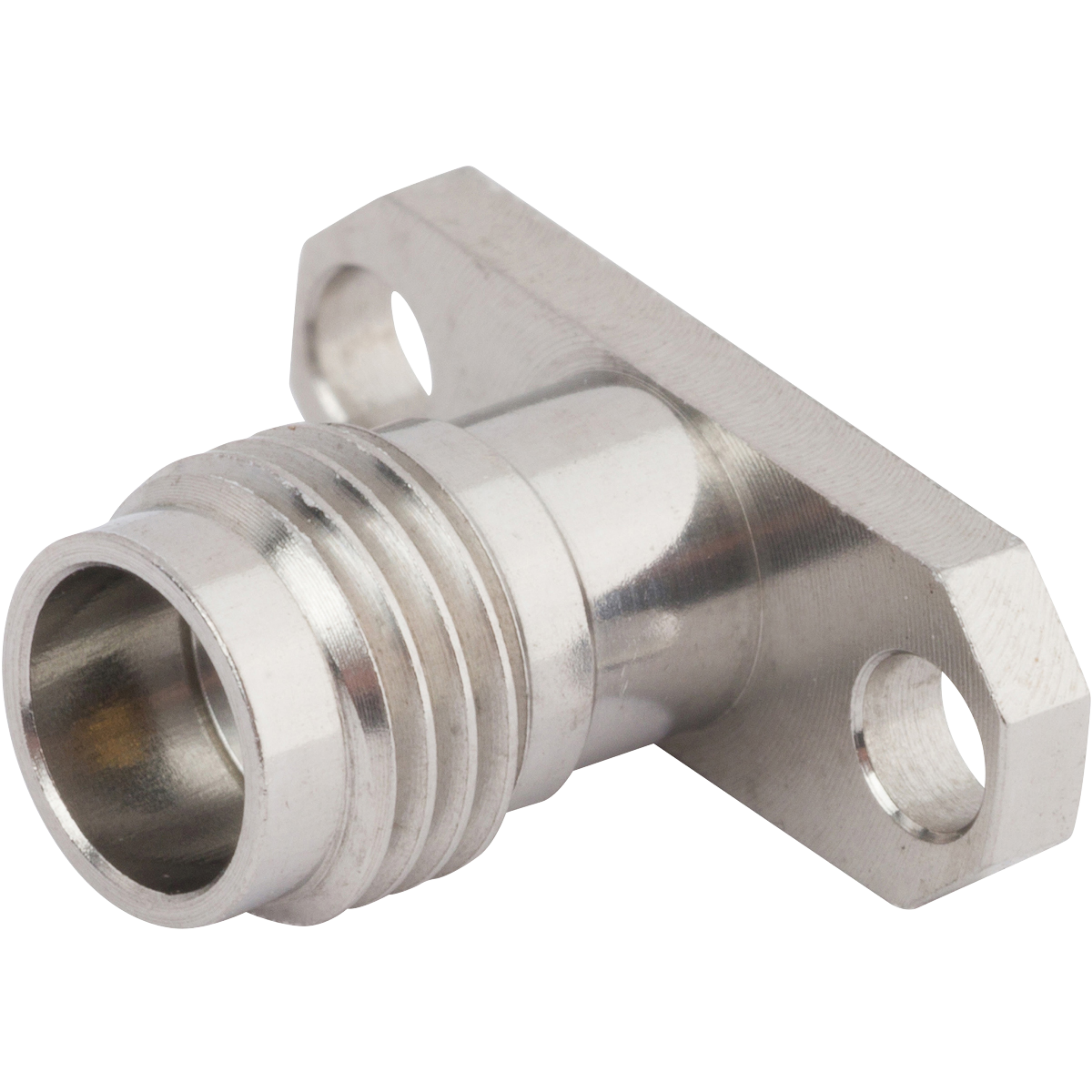

2.4mm Female Flange Mount Connector, 2 Hole (Accepts Ø.012 Pin)

Available Inventory: 79
SF1621-60017
2.4mm Connectors SF1621-60017
Datasheet
Part #   SF2950-6062

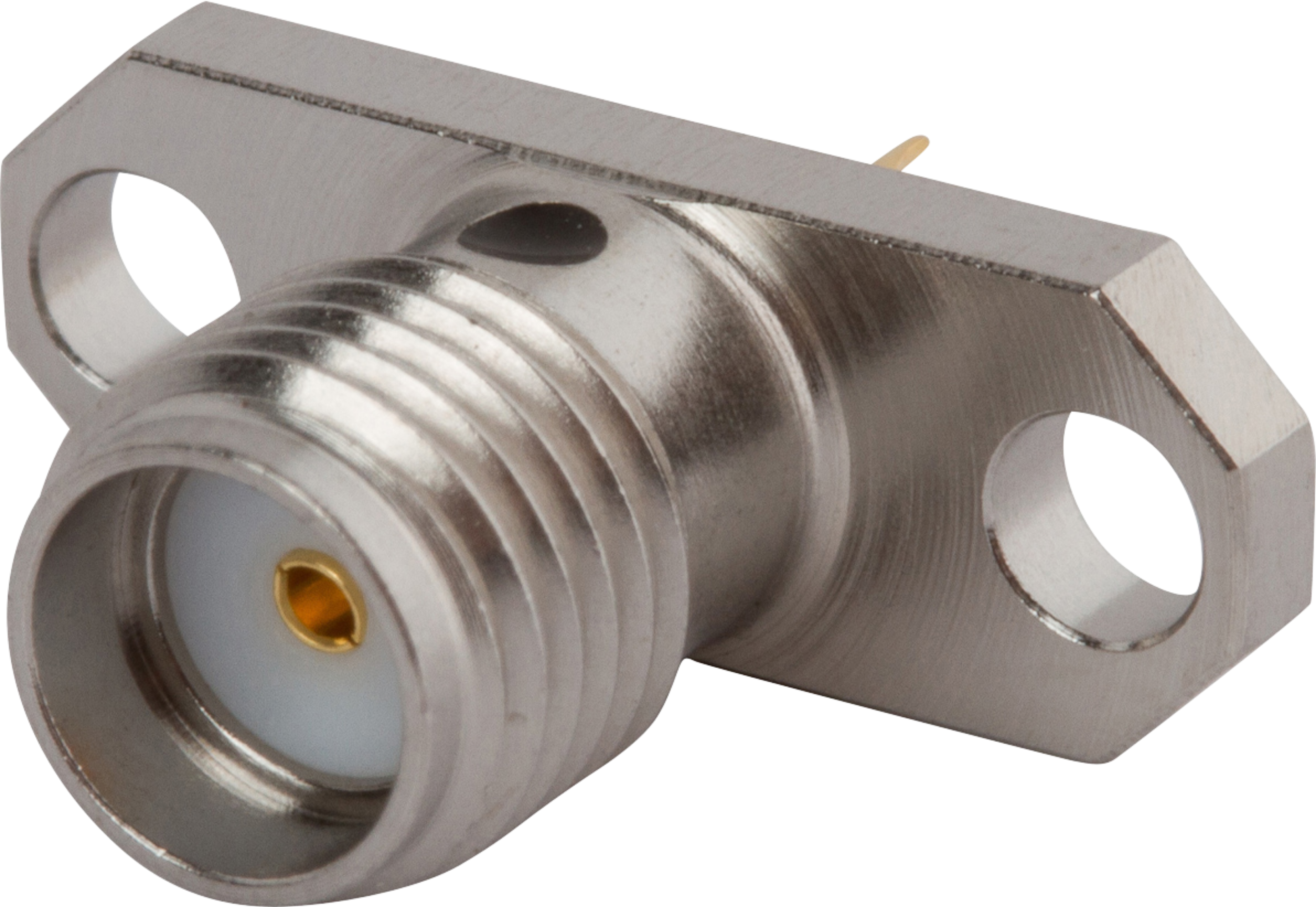

SMA Female Flange Mount Connector, 2 Hole (Solder Pot)
