P/N: SF1133-6006

1.85mm Male to 2.4mm Male Adapter

In stock at Qty Order
Mouser Electronics 3
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Finish Passivated
Gender 2 Plug (Male)
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 1.85 mm
Gender Plug (Male)
Coupling Threaded
Orientation (Body) Straight
Finish Passivated
Gender 2 Plug (Male)
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 2.4mm
Mating Cycles 500
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Customers Also Viewed

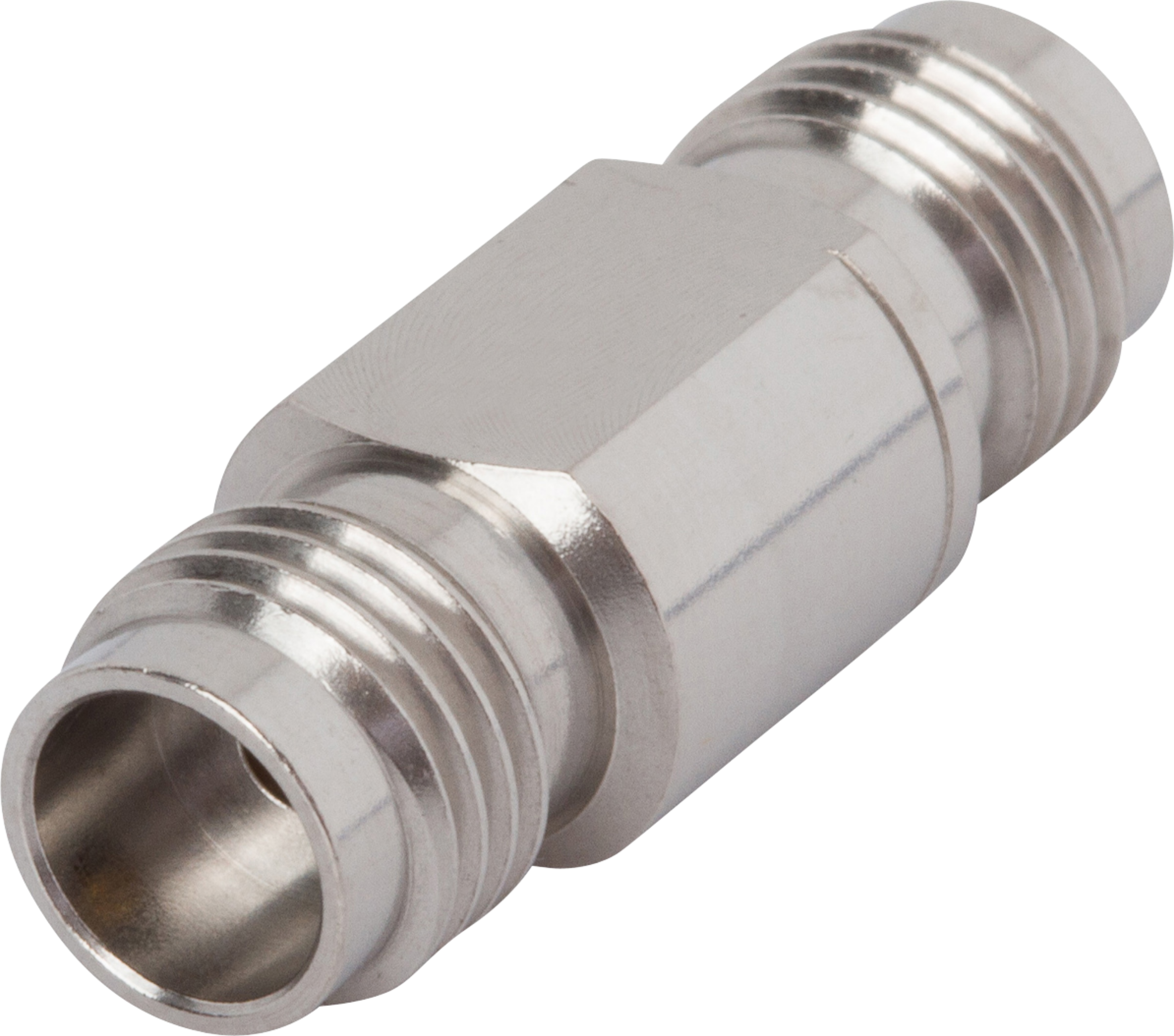

Part #   SF1133-6003

1.85mm Female to 2.4mm Female Adapter

Available Inventory: 27
SF1133-6003
1.85mm Adapters SF1133-6003
Datasheet

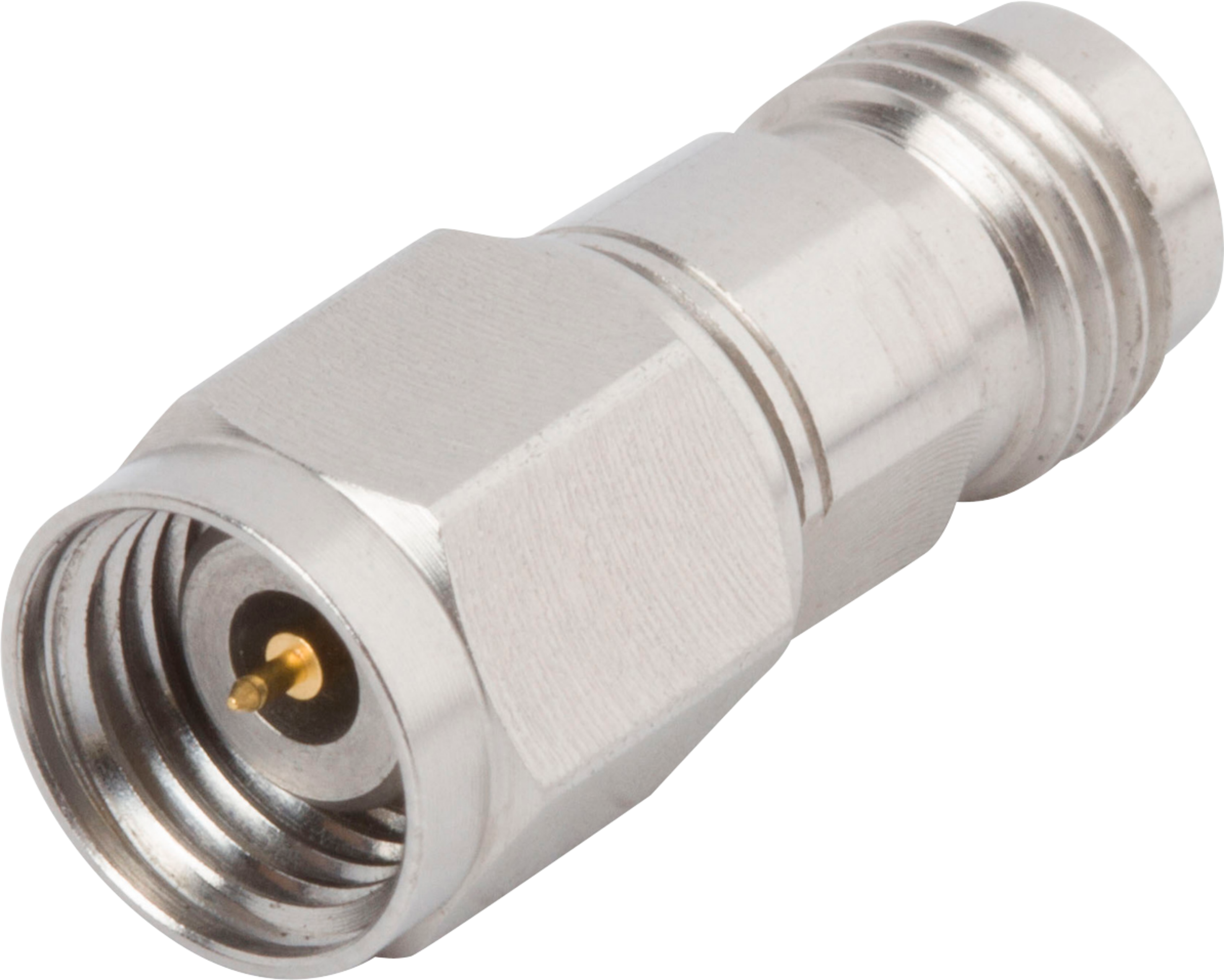

Part #   SF1133-6004
