1.85mm Male to SMPS Male Adapter, SB
P/N: 1138-6047

Name: 1.85mm Male to SMPS Male Adapter, SB | 1138-6047
SKU: 1138-6047
Availability: OutOfStock

There currently isn't any inventory available in distribution. Please contact us to obtain this product.

Downloads

Products specifications

Attribute name	Attribute value
RF Series	1.85 mm
Gender	Plug (Male)
Orientation (Body)	Straight
Coupling	Threaded
Finish	Passivated
RF Series 2	SMPS
Gender 2	Plug (Male)
Orientation 2 (Body)	Straight
Detent	Smooth Bore
Electrical
Frequency	65 GHz
Impedance	50 ohms
Shielding Effectiveness	≥ -90 dB
Dielectric withstanding Voltage	1000 VRMS
Mechanical
Mating Torque	7 - 10 in - lbs
Intermateability	2.4mm
Mating Cycles	500
Environmental
Temperature Rating	-65°C to +165°C
Corrosion (salt spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Shock	MIL-STD-202, Method 213, Condition I
Thermal Shock	MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.

Product tags

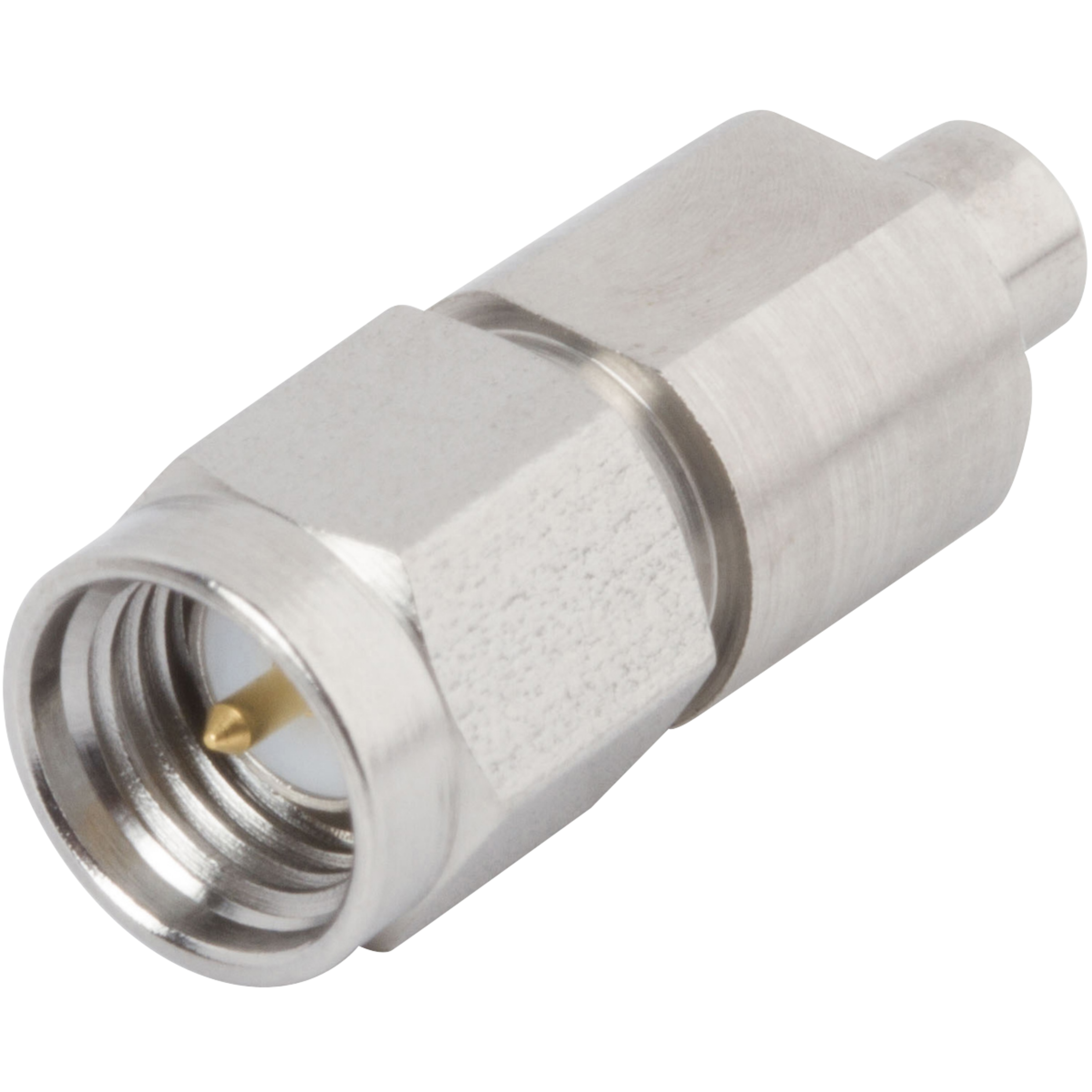

SMA Male to SMPM Male Adapter, SB
