SMA Male to SMPM Male Adapter, FD
P/N: SF1080-6005

In stock at Qty Order
Digi-Key Electronics 42
Mouser Electronics 23
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Detent Full Detent
RF Series 2 SMPM
Gender 2 Plug (Male)
Finish Passivated
Orientation 2 (Body) Straight
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series SMA
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Detent Full Detent
RF Series 2 SMPM
Gender 2 Plug (Male)
Finish Passivated
Orientation 2 (Body) Straight
Electrical
Frequency 18 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -90 dB
Dielectric withstanding Voltage 1000 VRMS
Mechanical
Mating Torque 7 - 10 in - lbs
Mating Cycles 500
Inter-mate ability 2.92mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1115-6086

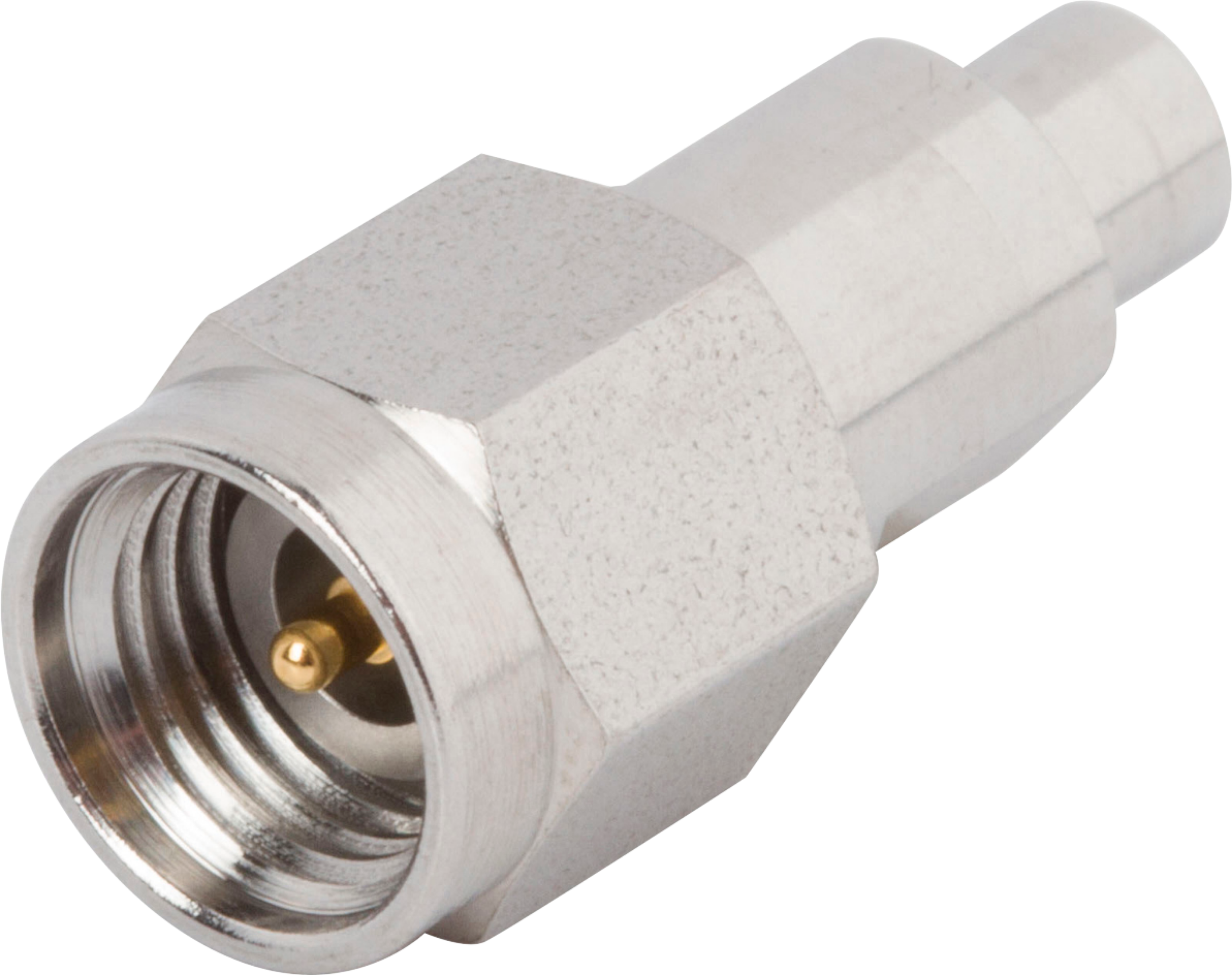

2.92mm Male to SMPM Male Adapter, FD

Available Inventory: 64
SF1115-6086
2.92mm Adapters SF1115-6086
Datasheet
Part #   SF1115-6087

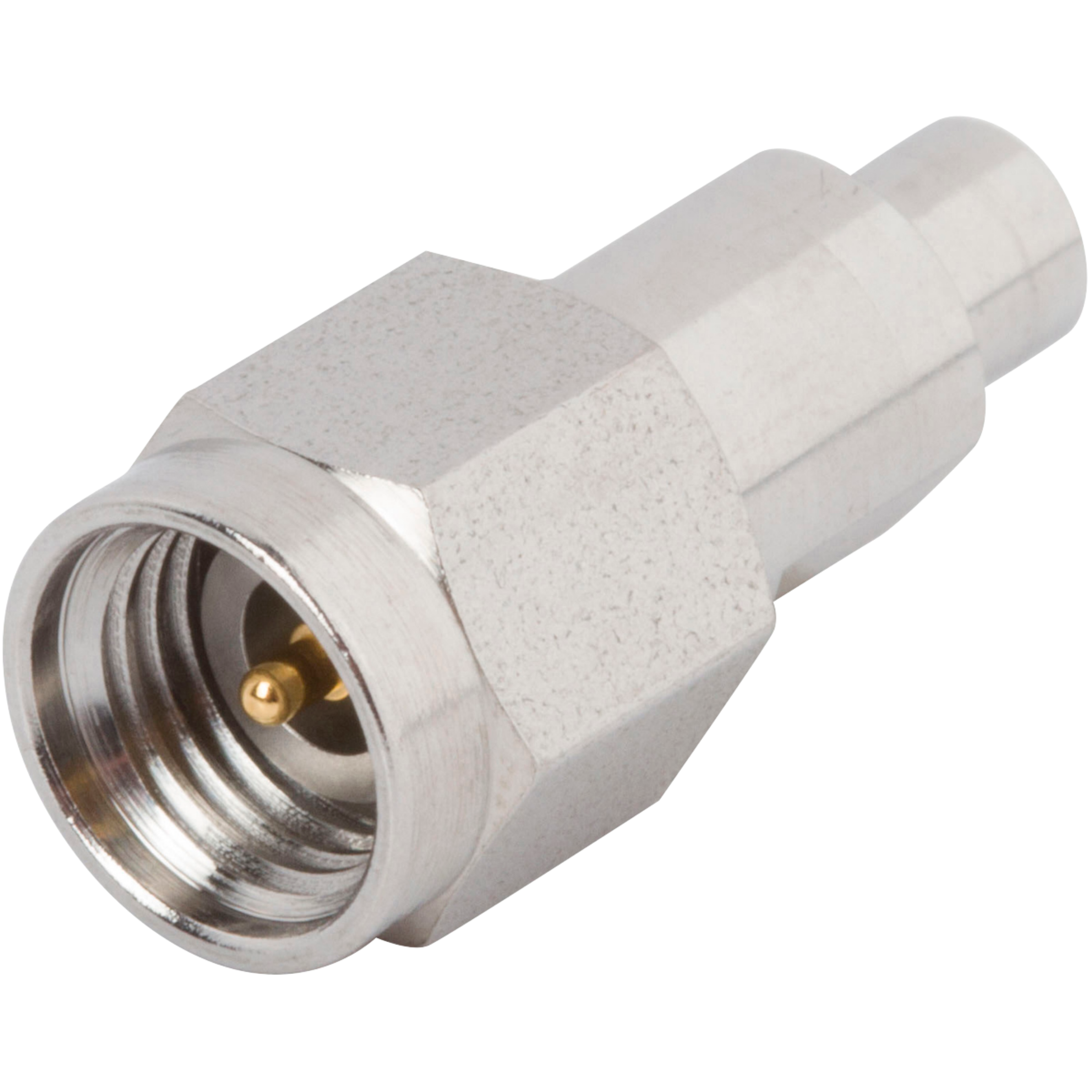

2.92mm Male to SMPM Male Adapter, SB

Available Inventory: 35
SF1115-6087
2.92mm Adapters SF1115-6087
Datasheet
Part #   SF1080-6004

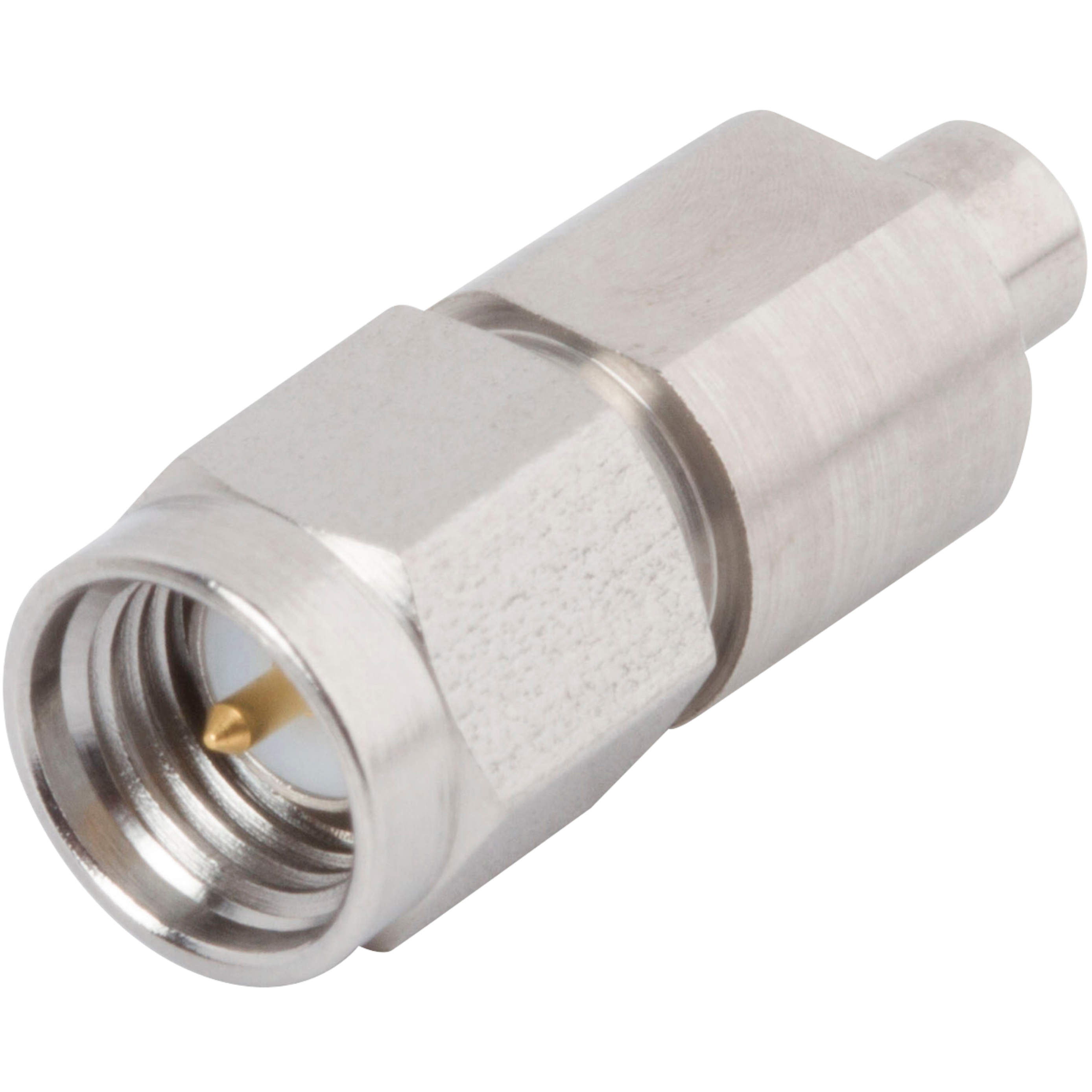

SMA Male to SMPM Male Adapter, SB
