P/N: SF1621-60029-2S

2.4mm Female Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (Stripline)

In stock at Qty Order
Digi-Key Electronics 1350
Mouser Electronics 100
Arrow Electronics Inc 70
TTI Inc Global Headquarters 20
Farnell 2
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.4 mm
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Coupling Threaded
Number of Ports Single
Finish Passivated
Termination Style Solder-free
Impedance 50 ohms
Frequency 50 GHz
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
Family Solderless
RF Series 2.4 mm
Orientation (Body) Straight
Gender Jack (Female)
Mounting Type PCB Vertical Launch
Body Style 2 Hole
Coupling Threaded
Number of Ports Single
Finish Passivated
Termination Style Solder-free
Impedance 50 ohms
Frequency 50 GHz
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   SF1621-60029

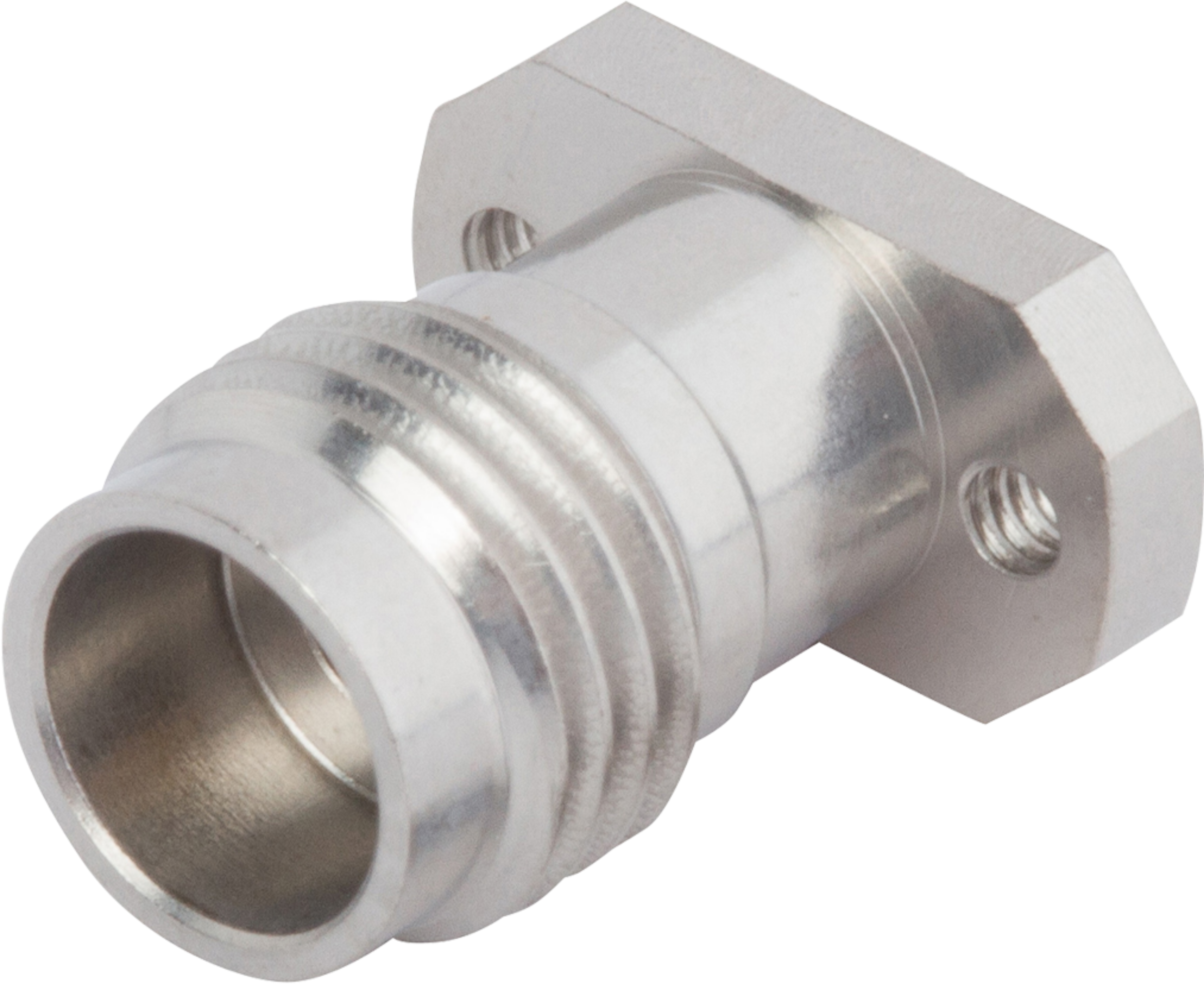

2.4mm Female Solderless PCB Compression Mount Connector, 2 Hole (Stripline)
