P/N: SF1621-60026-2S

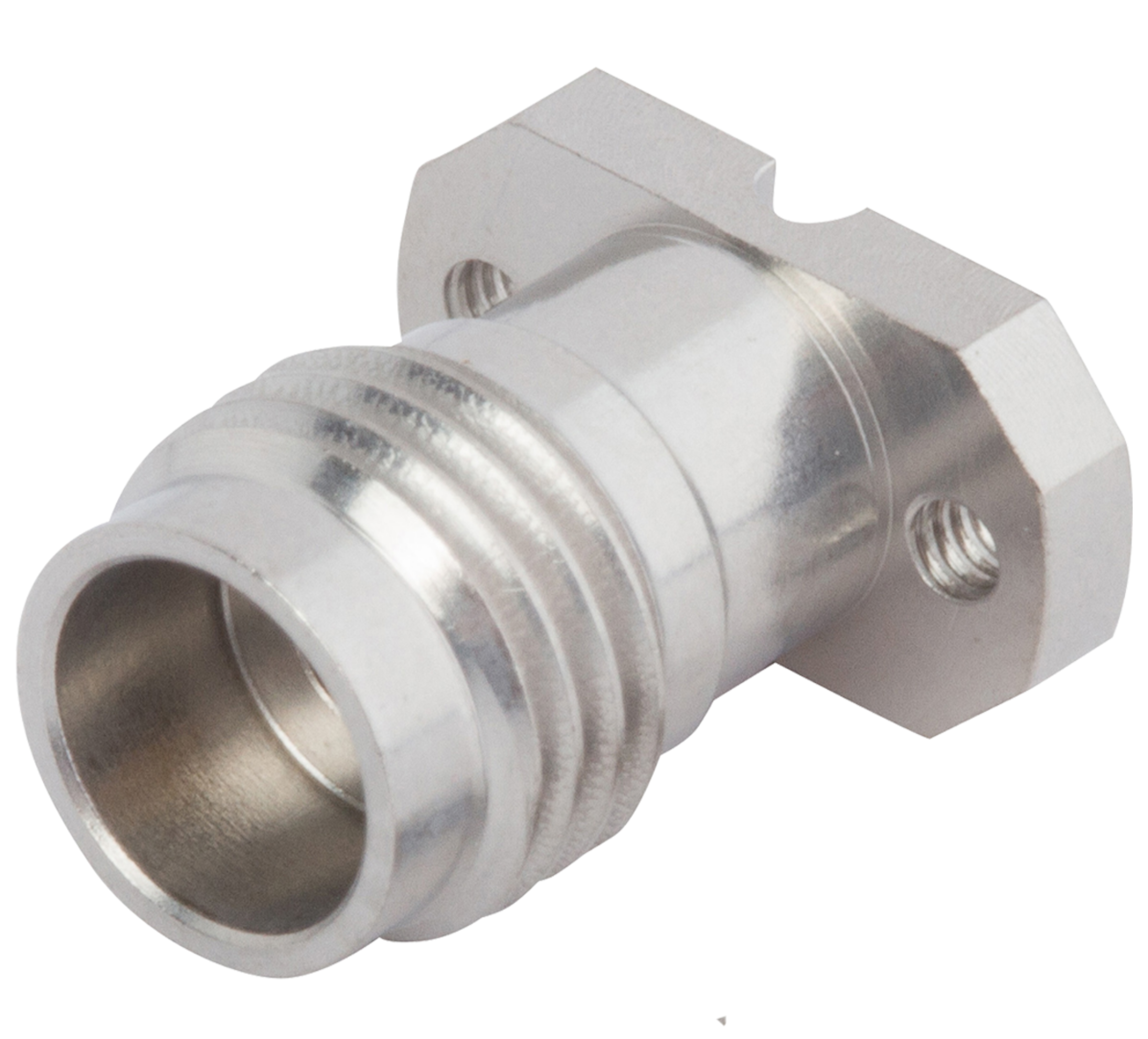

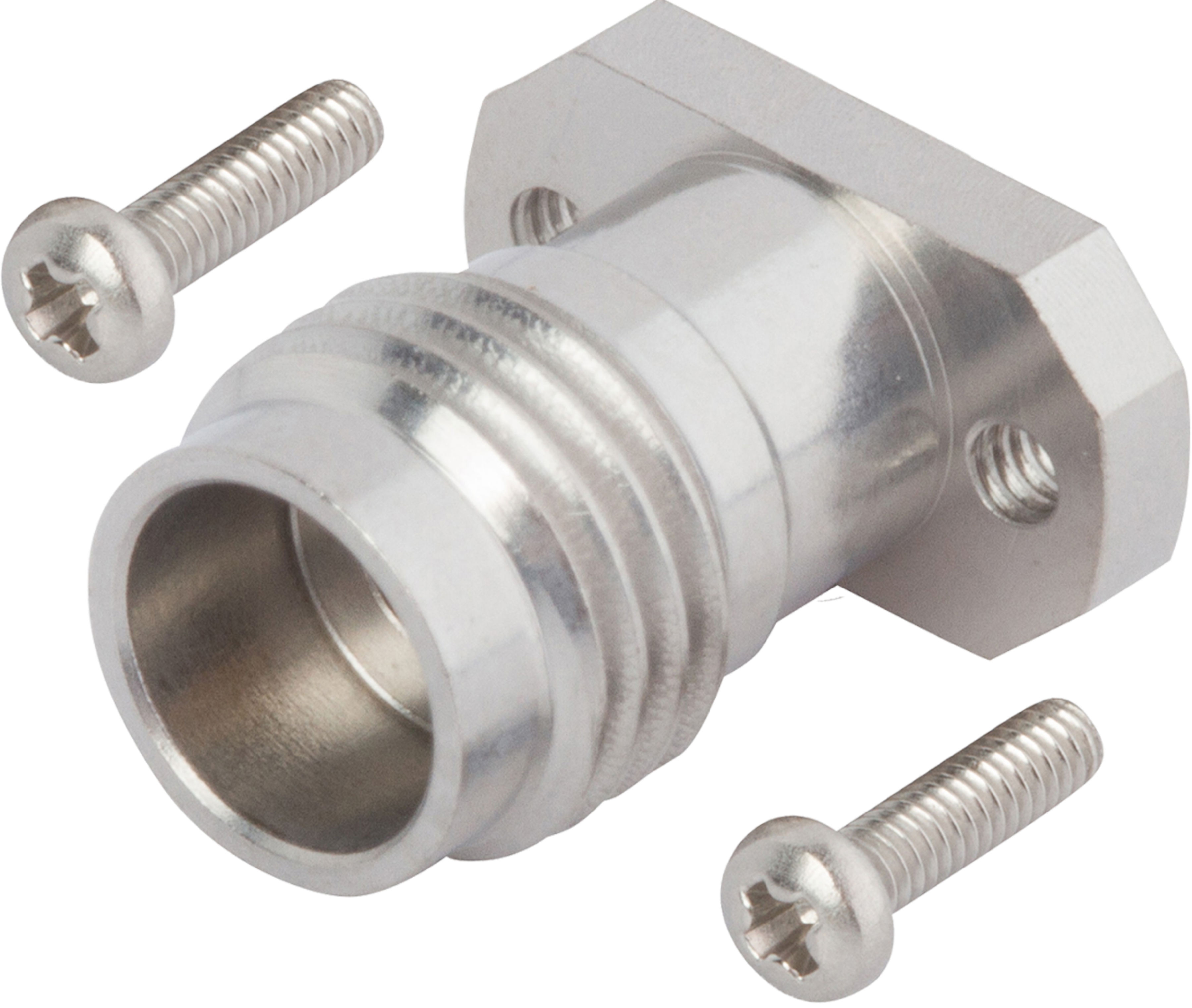

2.4mm Female Solderless PCB Compression Mount Connector, 2 Hole, with 6.35mm Screws (CPW / Microstrip)

In stock at Qty Order
Digi-Key Electronics 503
Master Electronics 100
Mouser Electronics 87
TTI Inc Global Headquarters 49
Farnell 29
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Jack (Female)
Family Solderless
Orientation (Body) Straight
Mounting Type PCB Vertical Launch
Coupling Threaded
Body Style 2 Hole
Termination Style Solder-free
Number of Ports Single
Impedance 50 ohms
Frequency 50 GHz
Finish Passivated
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
