P/N: 7016-0057

2.4mm Male to 2.4mm Male 12" Cable Assembly for .047 Cable"

In stock at Qty Order
Digi-Key Electronics 30
Mouser Electronics 12
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Coupling Threaded
Frequency 50 GHz
Orientation (Body) Straight
Impedance 50 ohms
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Gender Plug (Male)
Gender 2 Plug (Male)
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Coupling Threaded
Frequency 50 GHz
Orientation (Body) Straight
Impedance 50 ohms
RF Series 2 2.4 mm
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Gender Plug (Male)
Gender 2 Plug (Male)
Cable Length 12"
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Temperature Rating -65°C to +165°C
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

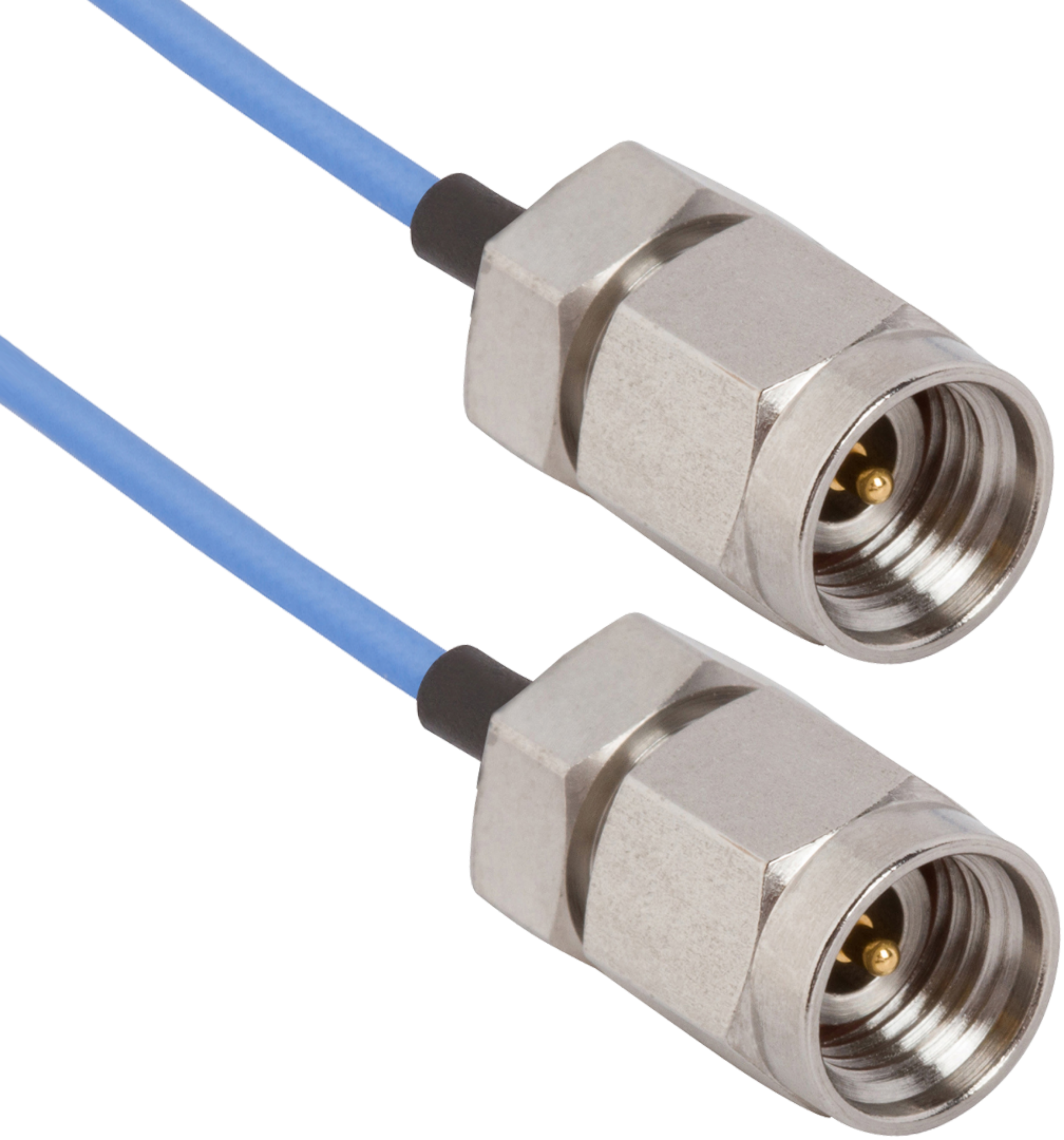

Part #   7015-0717

2.92mm Male to 2.92mm Male 6" Cable Assembly for .047 Cable

Available Inventory: 16
7015-0717
2.92mm Cable Assemblies 7015-0717
Datasheet

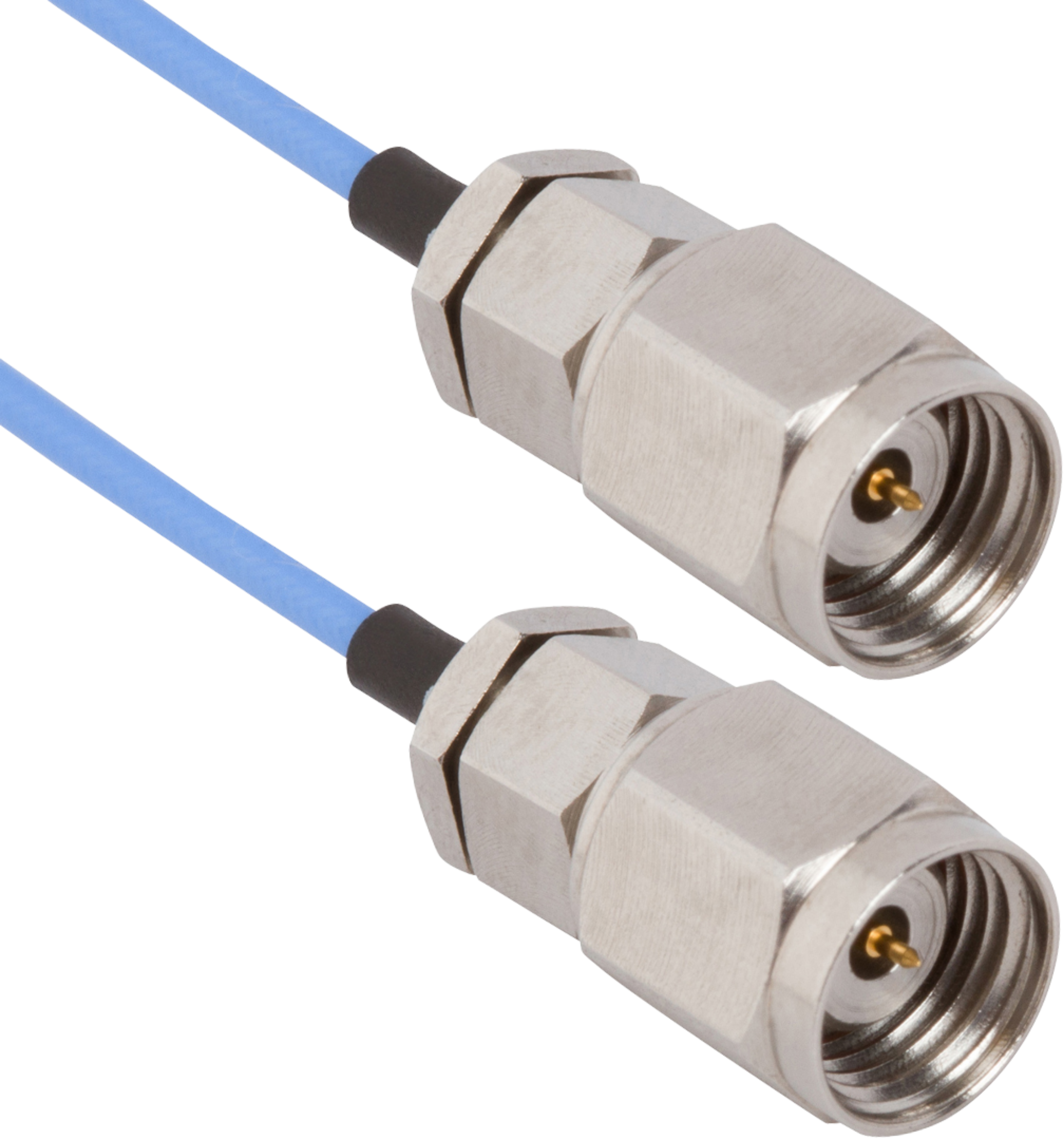

Part #   7016-0056

2.4mm Male to 2.4mm Male 6" Cable Assembly for .047 Cable"

Available Inventory: 21
7016-0056
2.4mm Cable Assemblies 7016-0056
Datasheet

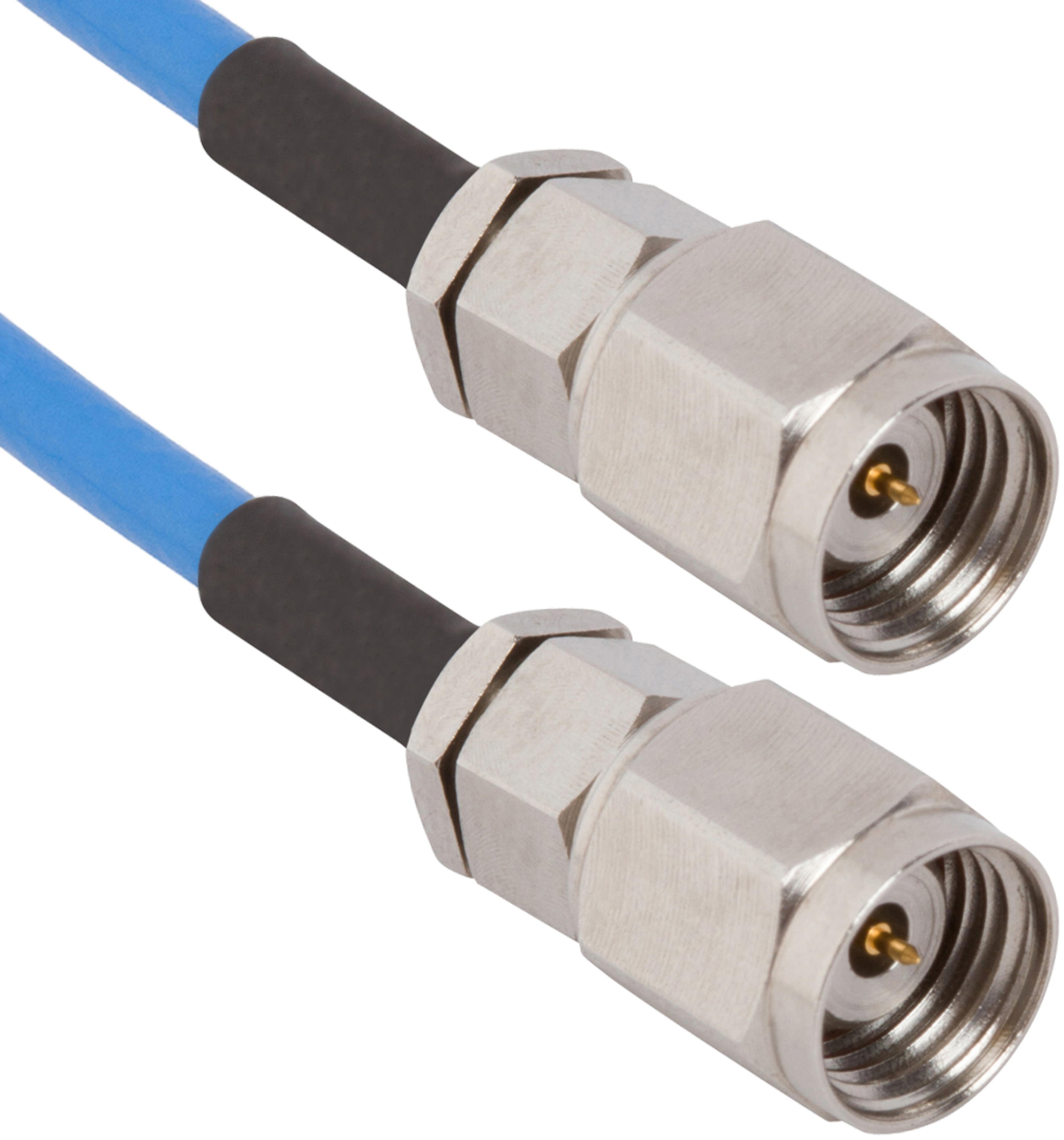

Part #   7016-0059
