P/N: 7016-0059

2.4mm Male to 2.4mm Male 12" Cable Assembly for .085 Cable"

In stock at Qty Order
Mouser Electronics 21
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
RF Series 2 2.4 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.


EU REACH Regulation (EC) No. 1907/2006 SVHC > Threshold

These products contain one or more EU REACH Substances of Very High Concern (SVHC) > 0.1% by weight (1000 ppm). Details related to the SVHC are displayed.

REACH SVHC: LEAD, CAS #: 7439-92-1, PPM: 4000

Use personal protective equipment as required. Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location.

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided.

Please contact compliance@svmicro.com for any Compliance or Environmental related questions.

Contact Us

How can we help?

*
*
*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
RF Series 2 2.4 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency 50 GHz
Impedance 50 ohms
Shielding Effectiveness ≥ -100 dB
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Cycles 500
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Environmental
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7015-0615

2.92mm Male to 2.92mm Male 12" Cable Assembly for .085 Cable

Available Inventory: 192
7015-0615
2.92mm Cable Assemblies 7015-0615
Datasheet
Part #   7016-0057

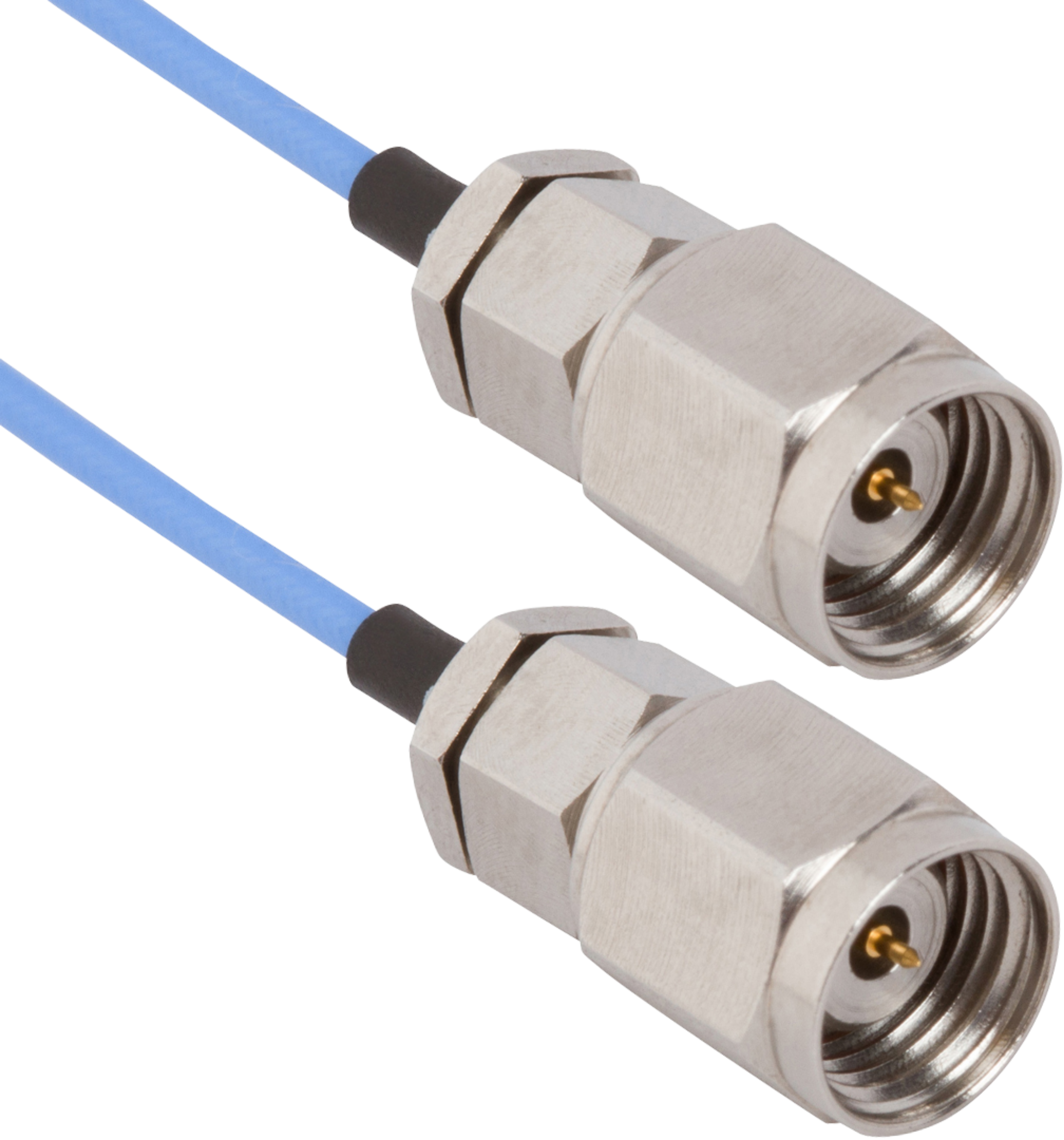

2.4mm Male to 2.4mm Male 12" Cable Assembly for .047 Cable"

Available Inventory: 40
7016-0057
2.4mm Cable Assemblies 7016-0057
Datasheet
Part #   7016-0058

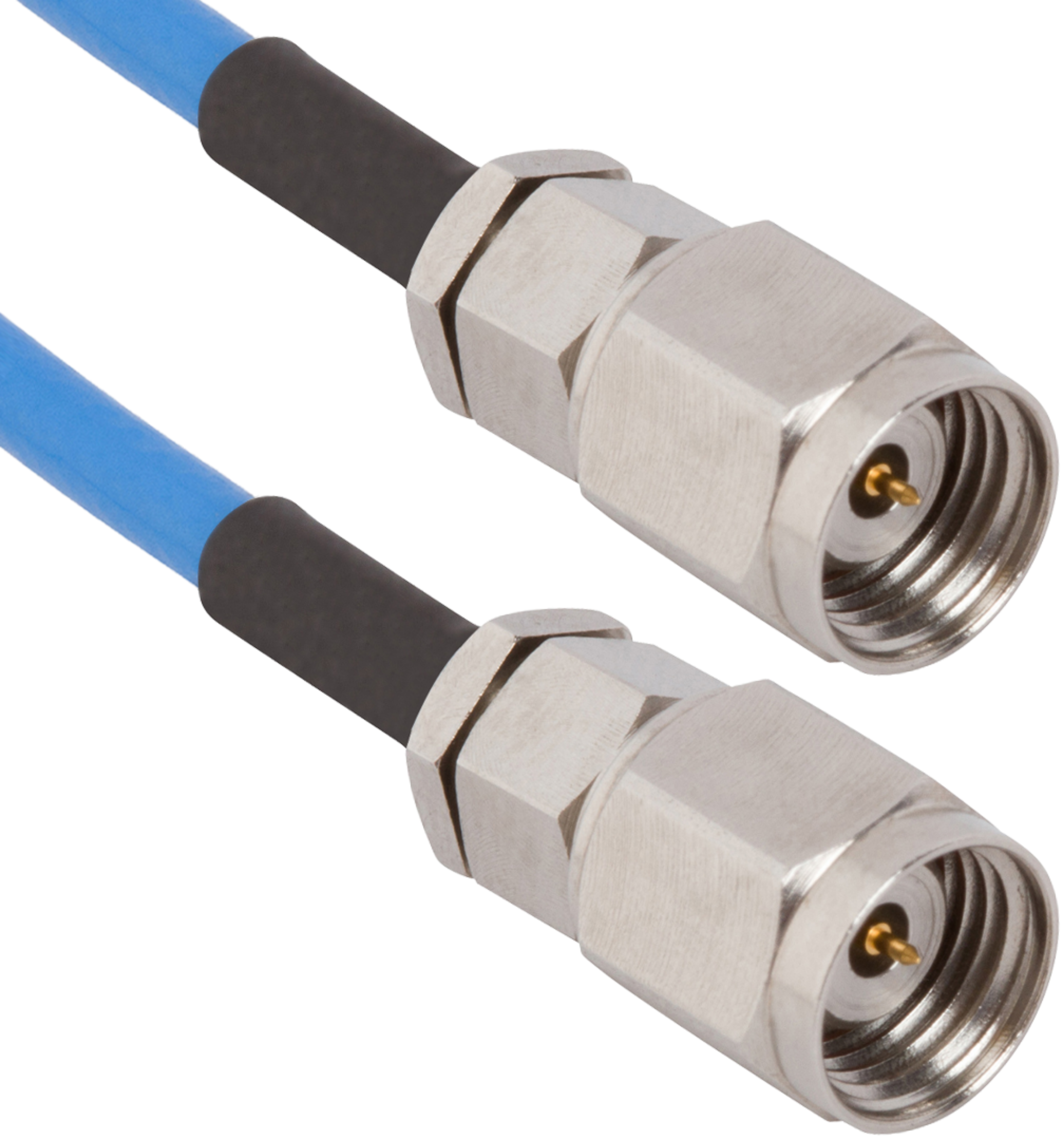

2.4mm Male to 2.4mm Male 6" Cable Assembly for .085 Cable"
