P/N: 7016-0126

2.4mm Male to 2.4mm Male 36" Cable Assembly for .085 Cable

Not available for this part number. Please contact us.
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Frequency 50 GHz
Impedance 50 ohms
RF Series 2 2.4 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 36"
Electrical
Shielding Effectiveness ≥ -100 dB
Frequency GHz 50 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Impedance (Ω) 50
Mechanical
Mating Torque 5 - 7 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 1.85mm
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Gender Plug (Male)
Orientation (Body) Straight
Coupling Threaded
Frequency 50 GHz
Impedance 50 ohms
RF Series 2 2.4 mm
Gender 2 Plug (Male)
Orientation 2 (Body) Straight
Cable Type 0.085 Flexible Coax
Cable Length 36"
Electrical
Shielding Effectiveness ≥ -100 dB
Frequency GHz 50 GHz
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Impedance (Ω) 50
Mechanical
Mating Torque 5 - 7 in - lbs
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Inter-mate ability 1.85mm
Environmental
Thermal Shock MIL-STD-202, Method 107, Condition B
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed
Part #   7016-0057

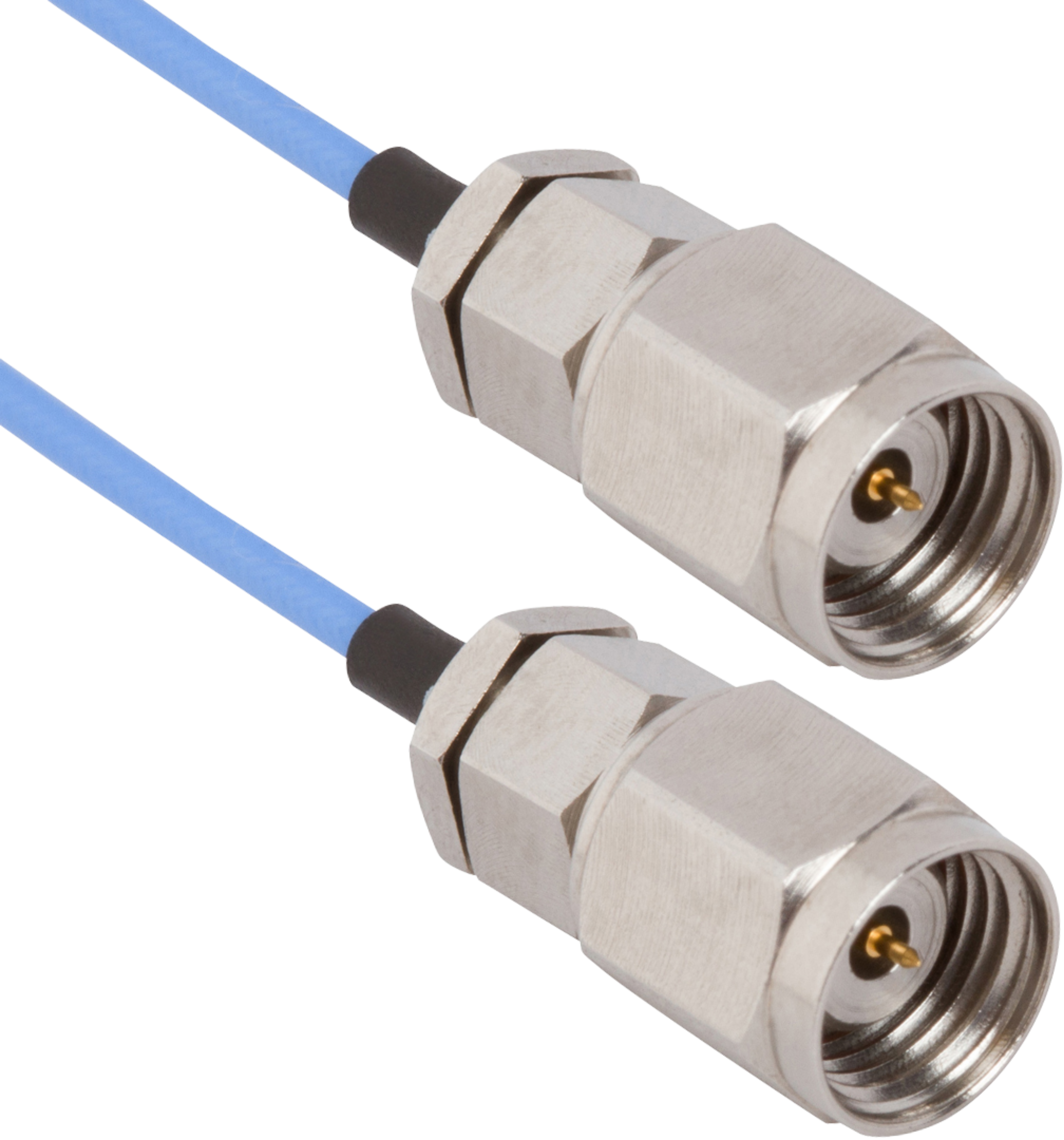

2.4mm Male to 2.4mm Male 12" Cable Assembly for .047 Cable"

Available Inventory: 42
7016-0057
2.4mm Cable Assemblies 7016-0057
Datasheet
Part #   7016-0058

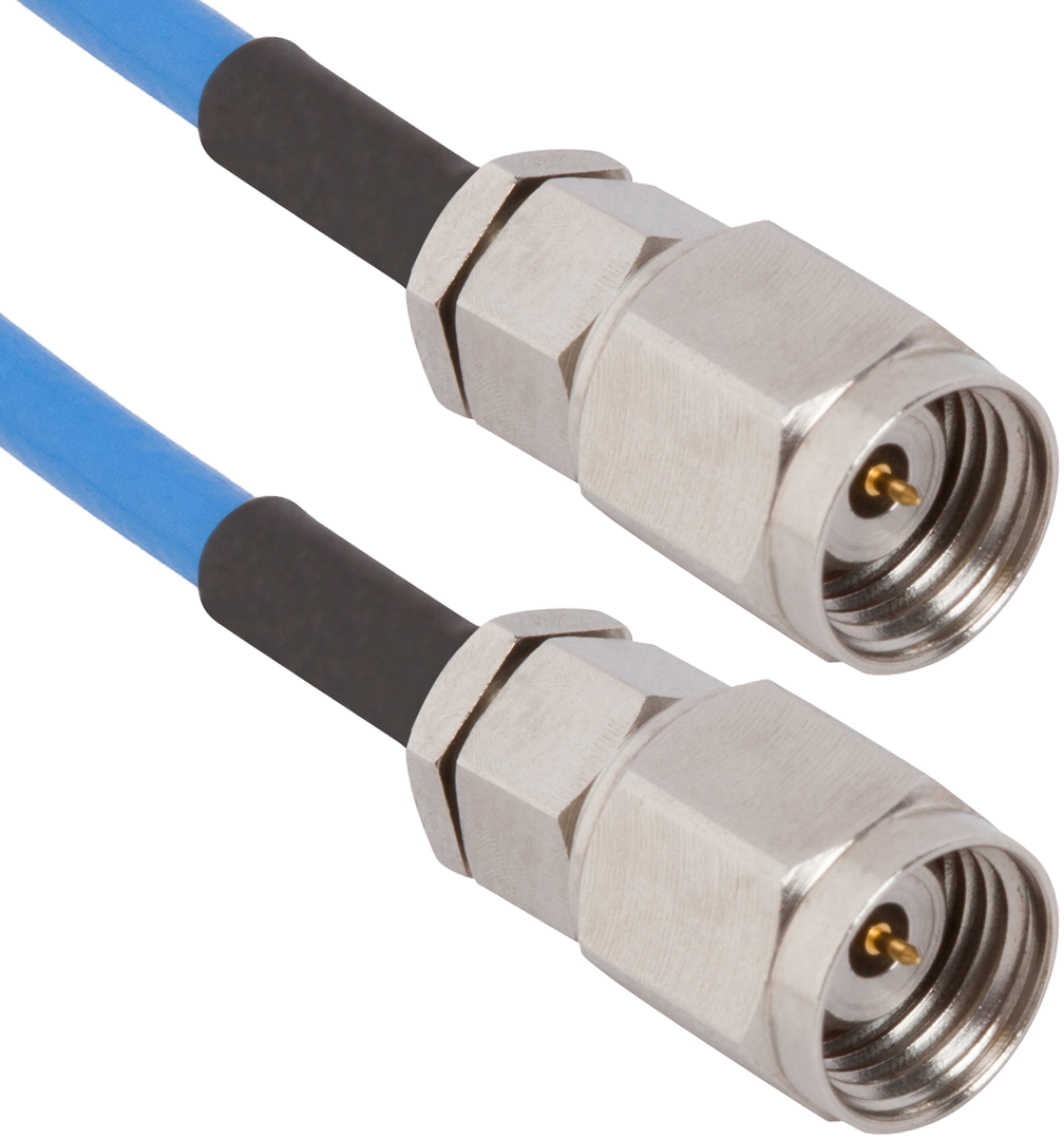

2.4mm Male to 2.4mm Male 6" Cable Assembly for .085 Cable"
