P/N: 7016-0061

2.4mm Male to 2.92mm Male 12" Cable Assembly for .047 Cable"

In stock at Qty Order
Mouser Electronics 6
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Coupling Threaded
Frequency 40 GHz
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2 2.92 mm
Impedance 50 ohms
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Length 12"
Electrical
Shielding Effectiveness ≥ -100 dB
Frequency GHz 50 GHz
Impedance (Ω) 50
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.

Contact Us

How can we help?

*
*
*
*
*
*
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Coupling Threaded
Frequency 40 GHz
Orientation (Body) Straight
Gender Plug (Male)
RF Series 2 2.92 mm
Impedance 50 ohms
Cable Type 0.047 Flexible Coax
Orientation 2 (Body) Straight
Gender 2 Plug (Male)
Cable Length 12"
Electrical
Shielding Effectiveness ≥ -100 dB
Frequency GHz 50 GHz
Impedance (Ω) 50
Mating Cycles 500
Dielectric withstanding Voltage 500 VRMS
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Thermal Shock MIL-STD-202, Method 107, Condition B
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Customers Also Viewed

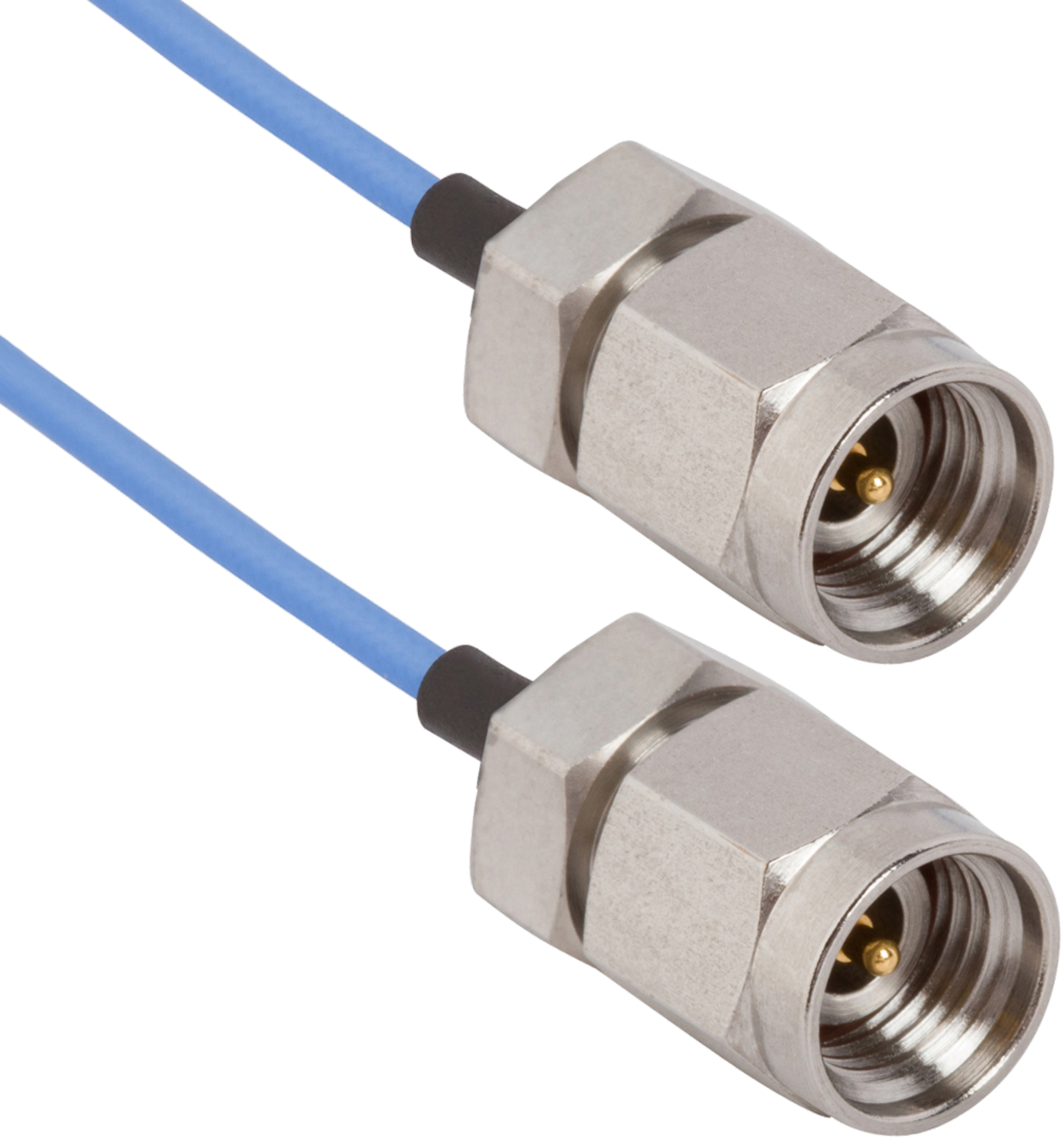

Part #   7015-0717

2.92mm Male to 2.92mm Male 6" Cable Assembly for .047 Cable

Available Inventory: 16
7015-0717
2.92mm Cable Assemblies 7015-0717
Datasheet

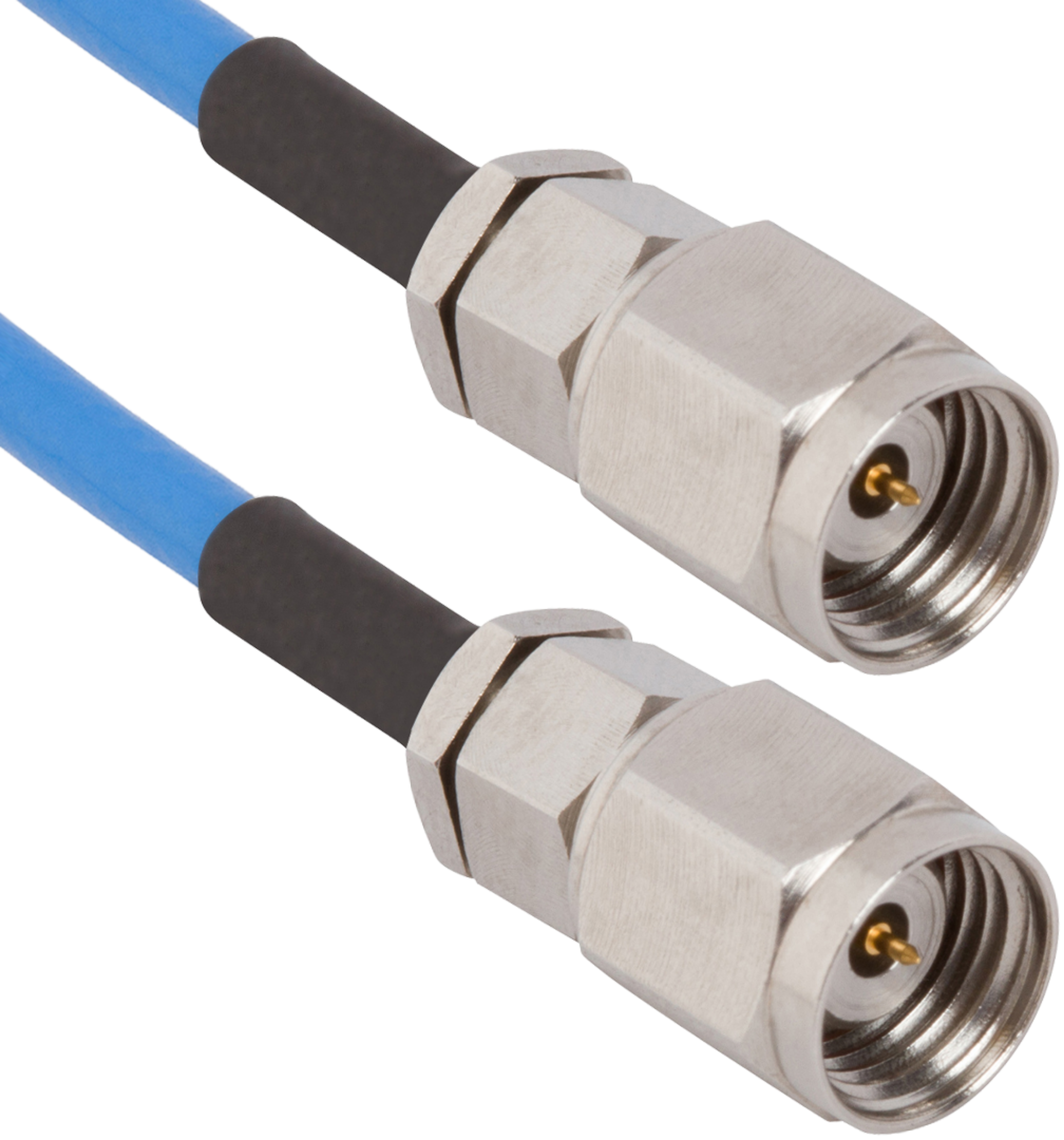

Part #   7016-0058

2.4mm Male to 2.4mm Male 6" Cable Assembly for .085 Cable"

Available Inventory: 32
7016-0058
2.4mm Cable Assemblies 7016-0058
Datasheet

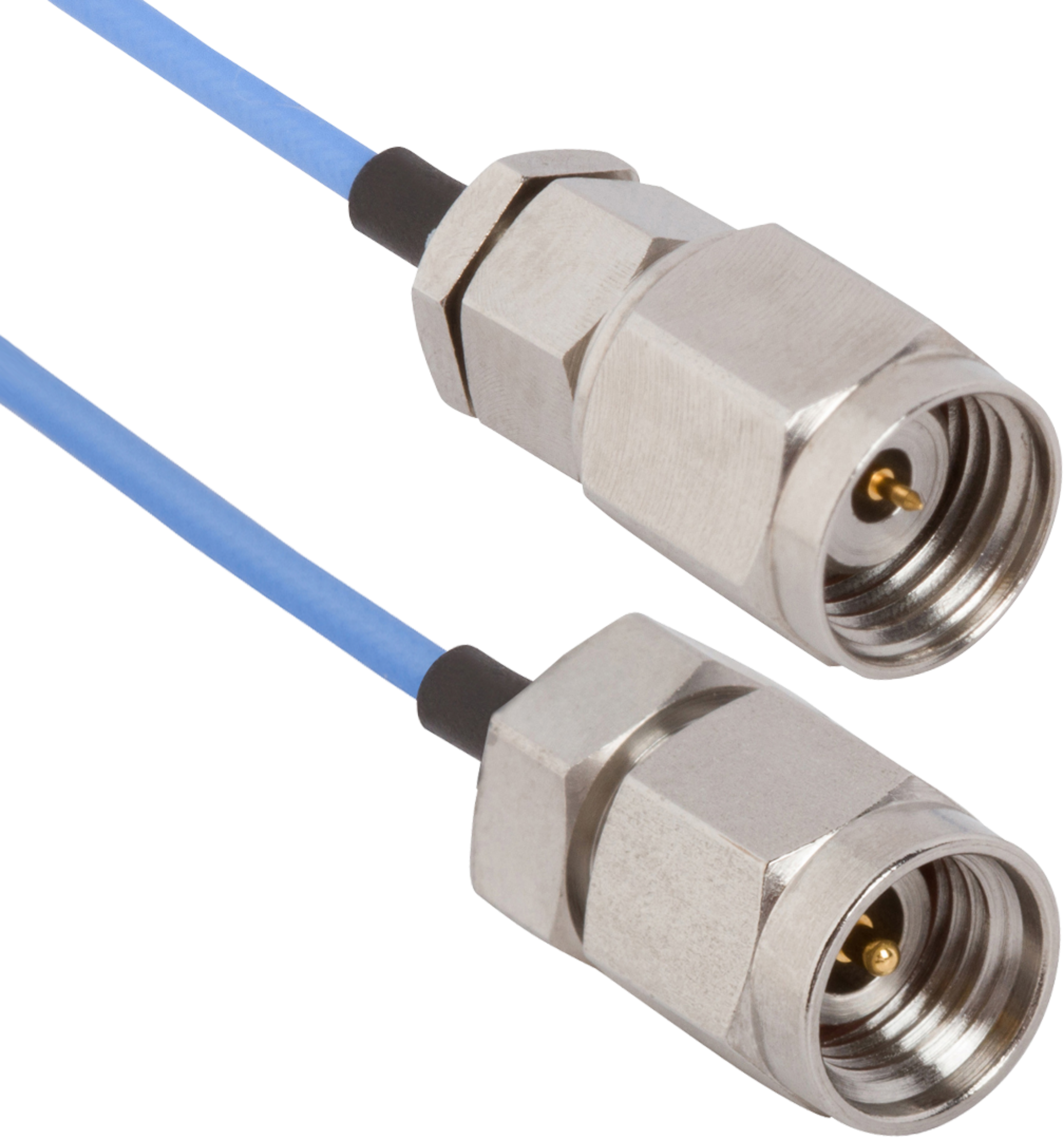

Part #   7016-0060
