P/N: 7016-0071

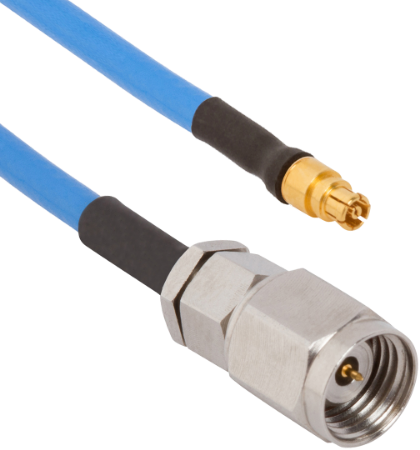

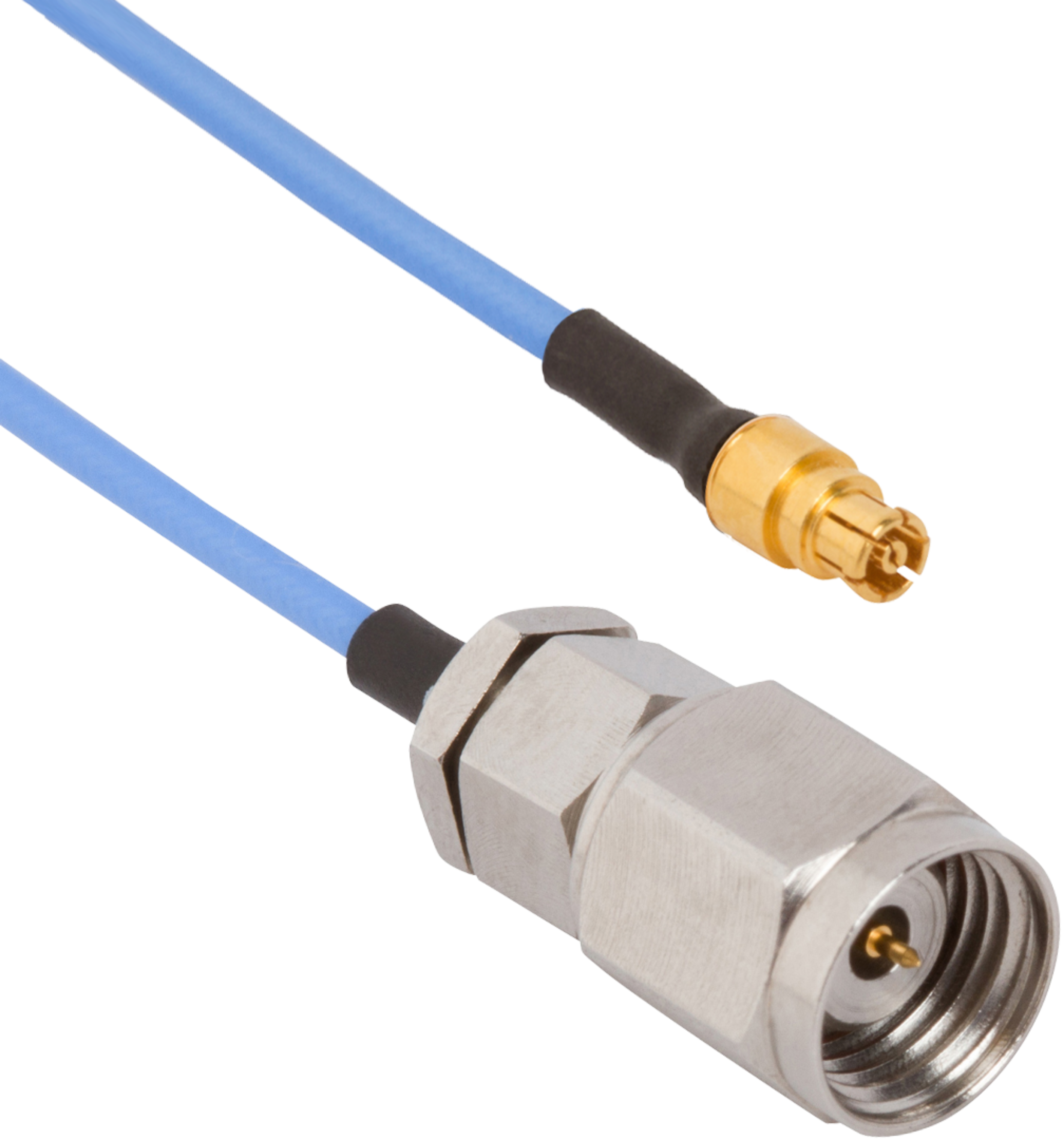

2.4mm Male to SMPM Female 12" Cable Assembly for .085 Cable

In stock at Qty Order
Mouser Electronics 3
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Termination Style Solder
Frequency 40 GHz
Impedance 50 ohms
RF Series 2 SMPM
Orientation 2 (Body) Straight
Gender 2 Jack (Female)
Cable Type 0.085 Flexible Coax
Cable Length 12"
Electrical
Frequency GHz 50 GHz
Impedance (Ω) 50
Dielectric withstanding Voltage 500 VRMS
Mating Cycles 500
Shielding Effectiveness ≥ -100 dB
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Vibration MIL-STD-202, Method 204, Condition D
Shock MIL-STD-202, Method 213, Condition I
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
