P/N: 7016-0068

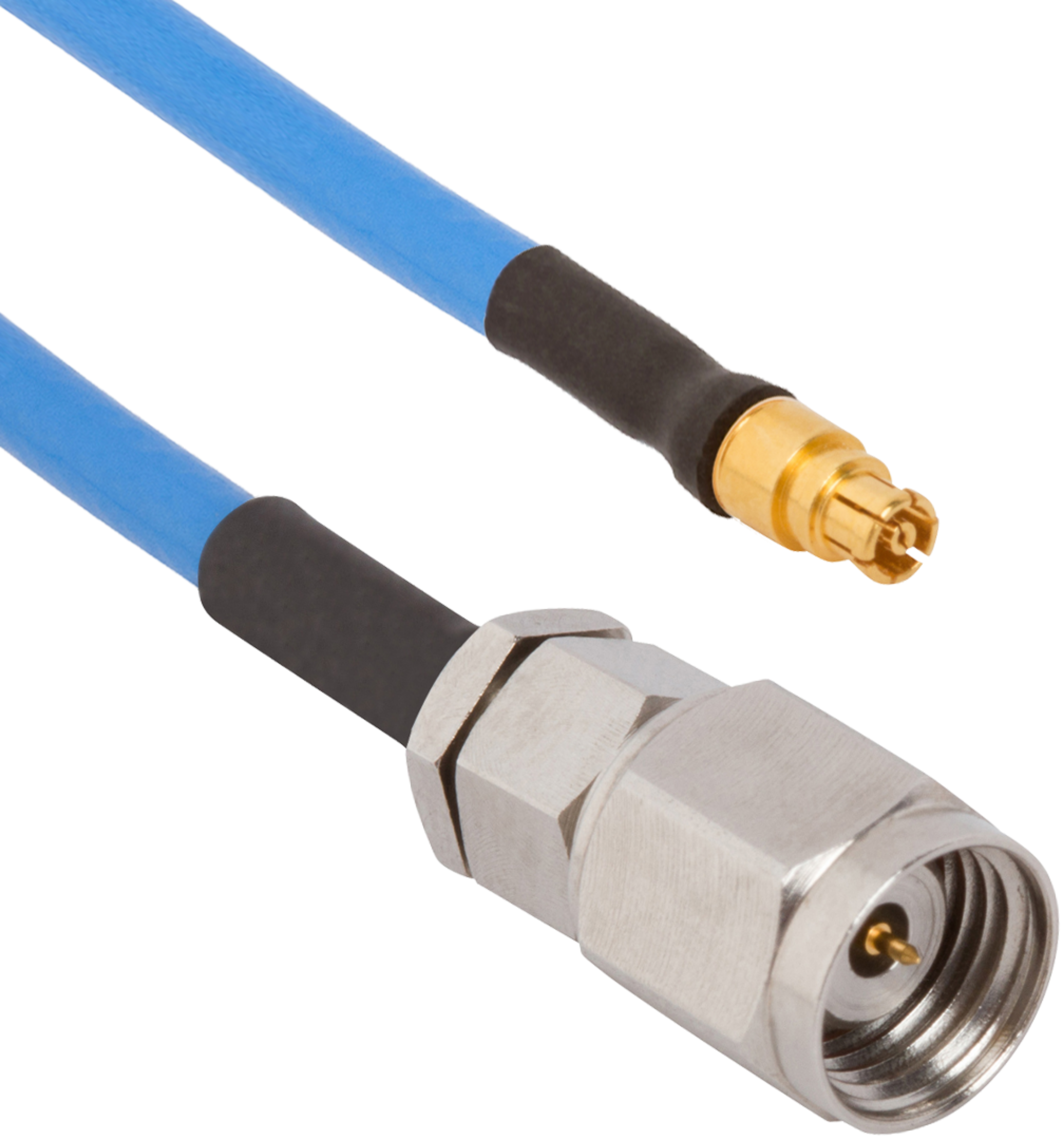

2.4mm Male to SMPM Female 6" Cable Assembly for .047 Cable

In stock at Qty Order
Digi-Key Electronics 26
Mouser Electronics 21
Products specifications
Attribute name Attribute value
RF Series 2.4 mm
Orientation (Body) Straight
Gender Plug (Male)
Coupling Threaded
Frequency 40 GHz
Termination Style Solder
Impedance 50 ohms
RF Series 2 SMPM
Gender 2 Jack (Female)
Orientation 2 (Body) Straight
Cable Type 0.047 Flexible Coax
Cable Length 6"
Electrical
Impedance (Ω) 50
Frequency GHz 50 GHz
Dielectric withstanding Voltage 500 VRMS
Shielding Effectiveness ≥ -100 dB
Mating Cycles 500
Mechanical
Mating Torque 5 - 7 in - lbs
Inter-mate ability 1.85mm
Temperature Rating -65°C to +165°C
Corrosion (salt spray) MIL-STD-202, Method 101, Condition B
Environmental
Shock MIL-STD-202, Method 213, Condition I
Vibration MIL-STD-202, Method 204, Condition D
Thermal Shock MIL-STD-202, Method 107, Condition B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
